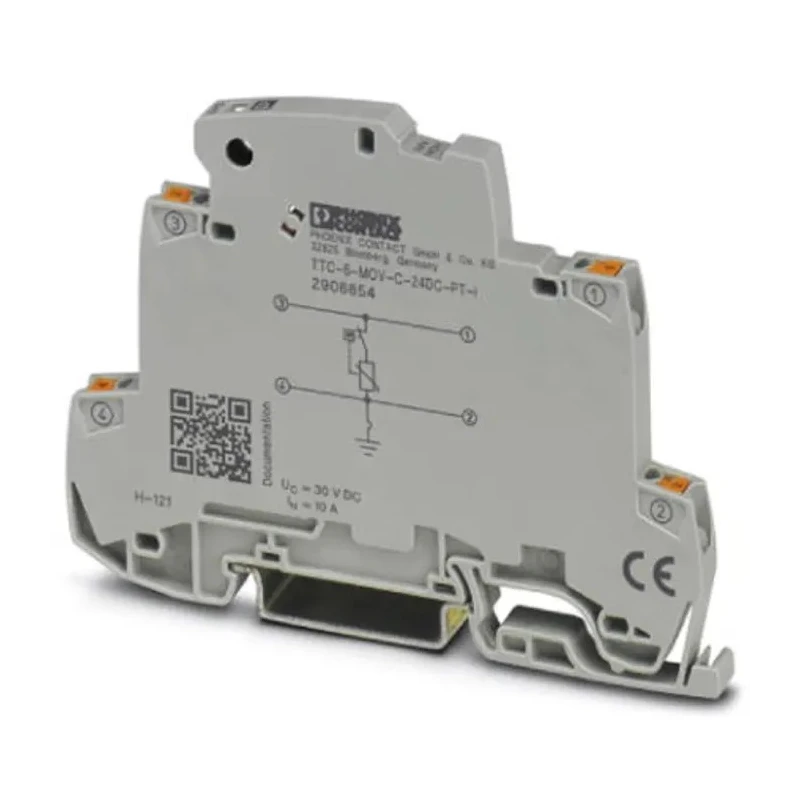

Phoenix Contact Surge Protector 2.5 kA Max Surge Current DIN Rail Mount TTC Series 2906858
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Length | 69.5mm |
| Model | 2906858 |
| Depth | 6.2mm |
| Mount Type | DIN Rail |
| Series | TTC |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | EN 61643-21, IEC 61643-21 |
| Maximum Surge Current | 2.5kA |
Key Features
- Supports surge currents up to 2.5 kA for effective system protection.
- Designed for DIN Rail mounting, enabling easy installation in electrical panels.
- Operates safely in temperatures from -40°C to +85°C.
- Complies with EN 61643-21 and IEC 61643-21 standards for surge protection devices.
- Features IP20 rating ensuring touch protection and shock safety.
- Equipped with a UL 94 V0 flammability rating for fire safety.
- Integrated status indicator light simplifies diagnostics and maintenance.
- Accepts wire sizes from 0.2 to 4 mm², compatible with AWG 24 to 12.
Product Description
Phoenix Contact 2906858 Surge Protector is a DIN Rail mount device designed to safeguard electrical and measurement control systems against surges and transient overvoltages up to 2.5 kA.
It prevents damage caused by lightning strikes and electrical faults by redirecting excess voltage away from sensitive components, thus enhancing system reliability and minimizing downtime.
This surge protector operates efficiently within a wide temperature range from -40°C to +85°C, making it suitable for harsh industrial, commercial, and automation environments.
Its compact size of 69.5 mm length and 6.2 mm depth allows easy integration into control panels. The device meets EN 61643-21 and IEC 61643-21 standards, ensuring compliance with international safety and performance requirements.
Phoenix Contact’s TTC series device features an IP20 rating for electrical safety and a UL 94 V0 flammability rating, preventing the spread of flames in case of fire.
The included integrated status indicator light provides a clear visual signal of device functionality, enabling quick troubleshooting. Installation is user-friendly with versatile connection options supporting wire sizes from 0.2 to 4 mm² (AWG 24 - 12).
Supports surge currents up to 2.5 kA for effective system protection. Designed for DIN Rail mounting, enabling easy installation in electrical panels. Operates safely in temperatures from -40°C to +85°C. Complies with EN 61643-21 and IEC 61643-21 standards for Surge Protection Devices.
Features IP20 rating ensuring touch protection and shock safety. Equipped with a UL 94 V0 flammability rating for fire safety. Integrated status indicator light simplifies diagnostics and maintenance. Accepts wire sizes from 0.2 to 4 mm² compatible with AWG 24 to 12.
This surge protector is ideal for use in industrial, commercial, and automation applications requiring reliable transient overvoltage protection. It enhances electrical safety and protects valuable electronic equipment from surge damage.
EnvMart offers this authentic Phoenix Contact surge protector series designed to meet rigorous global standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This surge protector can handle a maximum surge current of 2.5 kA, providing effective protection against transient overvoltages.
It operates safely within a temperature range of -40°C to +85°C, making it suitable for various industrial and commercial environments.
It complies with EN 61643-21 and IEC 61643-21 standards, ensuring it meets international safety and performance requirements for surge protection devices.
This model is designed for DIN Rail mounting, allowing for easy installation in electrical panels.
The surge protector has a length of 69.5 mm and a depth of 6.2 mm, allowing for compact integration into control panels.
It accepts wire sizes from 0.2 to 4 mm², which is compatible with AWG 24 to 12.
Yes, it features an integrated status indicator light that simplifies diagnostics and maintenance by providing a clear visual signal of device functionality.
It is equipped with a UL 94 V0 flammability rating, which helps prevent the spread of flames in case of fire.
This surge protector is suitable for industrial, commercial, and automation applications that require reliable transient overvoltage protection.
It safeguards electrical and measurement control systems against surges and transient overvoltages, preventing damage from lightning strikes and electrical faults.
The country of origin for this model is Germany.
By redirecting excess voltage away from sensitive components, it enhances system reliability and minimizes downtime caused by electrical surges.
