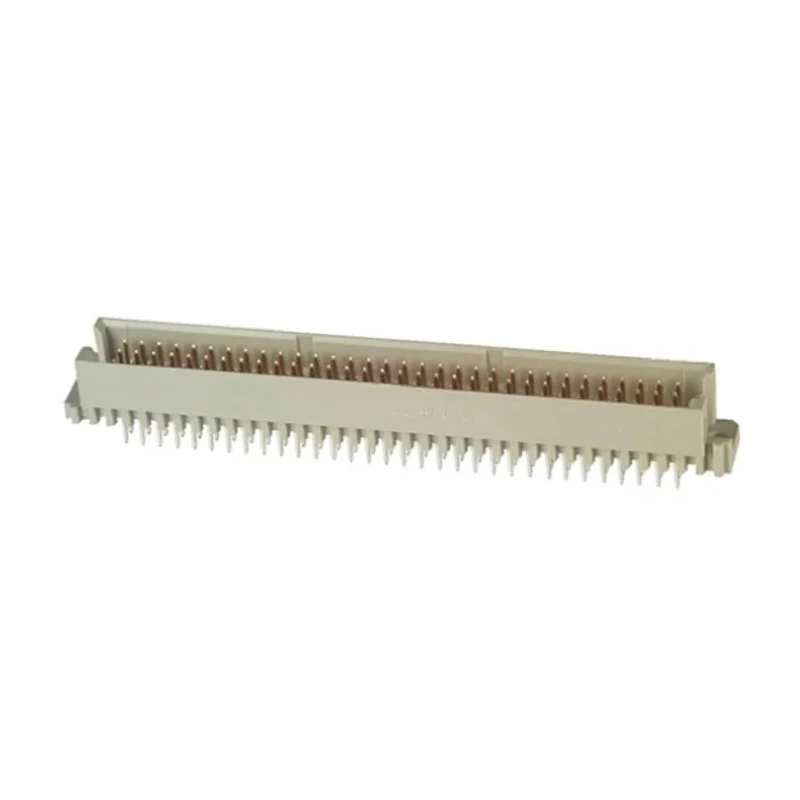

TE Connectivity Eurocard DIN 41612 Connector 96 Way 250V AC 1.5A 2.54mm Pitch 3 Row Male Straight 5650470-5

TE Connectivity 5650470-5 Eurocard DIN 41612 Connector is engineered to meet demanding industrial and electronic assembly requirements. Featuring 96 contact points arranged in three rows with a 2.54 mm pitch, this connector supports reliable electrical connections delivering up to 1.5 amps at 250 volts AC. The straight male connector is designed for board mounting with solder termination complying with Class C2, which ensures robust and secure solder joints.

The connector’s copper alloy contacts with tin plating provide excellent conductivity and resistance to corrosion. The flame retardant polymer housing adds safety by resisting heat and potential ignition sources. This product meets stringent DIN 41612 and IEC 60603-2 standards, making it suitable for applications requiring high signal integrity, such as industrial control systems, telecommunications, data centers, modular rack systems, and backplane assemblies.

The device supports a broad operating temperature range from -55°C to 125°C, enabling deployment in harsh environments. Its polarization features prevent incorrect mating, enhancing system reliability. Additional features include selective contact loading, ACTION PIN and eye of needle contact tails, and available boardlock options for secure PCB retention.

Typical use cases include integration into common bus systems like STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X architectures. This connector is ideal for industrial automation, telecommunications equipment, servers, and other high-reliability electronic modules requiring modular and maintenance-friendly connectivity.

Features 96 contacts arranged in 3 rows with 2.54 mm pitch. Supports current of 1.5A at 250V AC voltage rating. Constructed with copper alloy contacts plated with tin. Flame retardant polymer housing enhances safety. Complies with DIN 41612 and IEC 60603-2 standards.

Operating temperature range from -55°C to 125°C. Polarization and boardlocks prevent mis-mating. Class C2 solder termination provides reliable connections. Explore more reliable connectors like this within the DIN 41612 Connector category at EnvMart.
