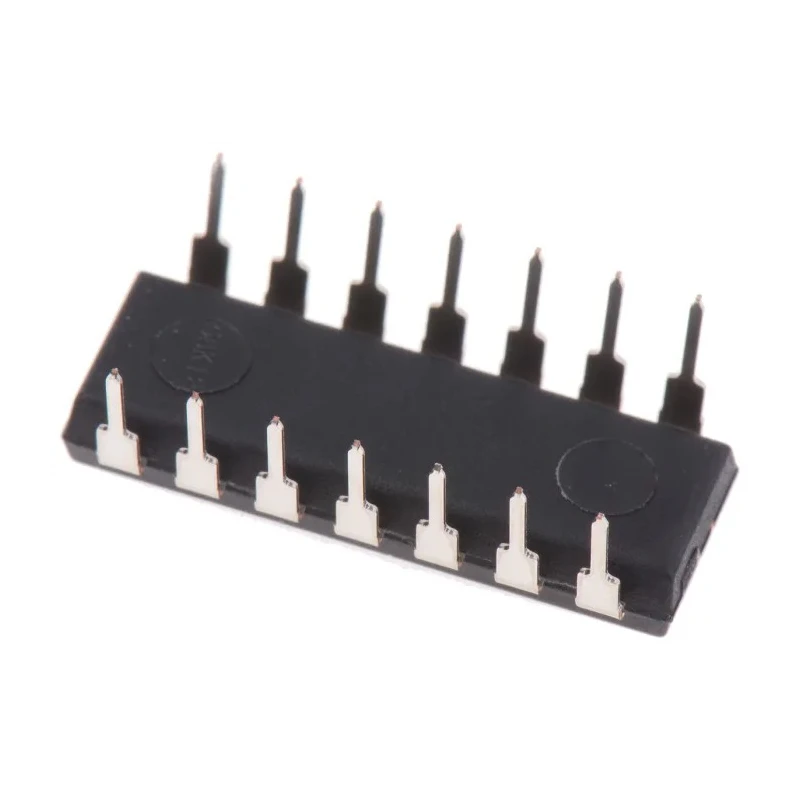

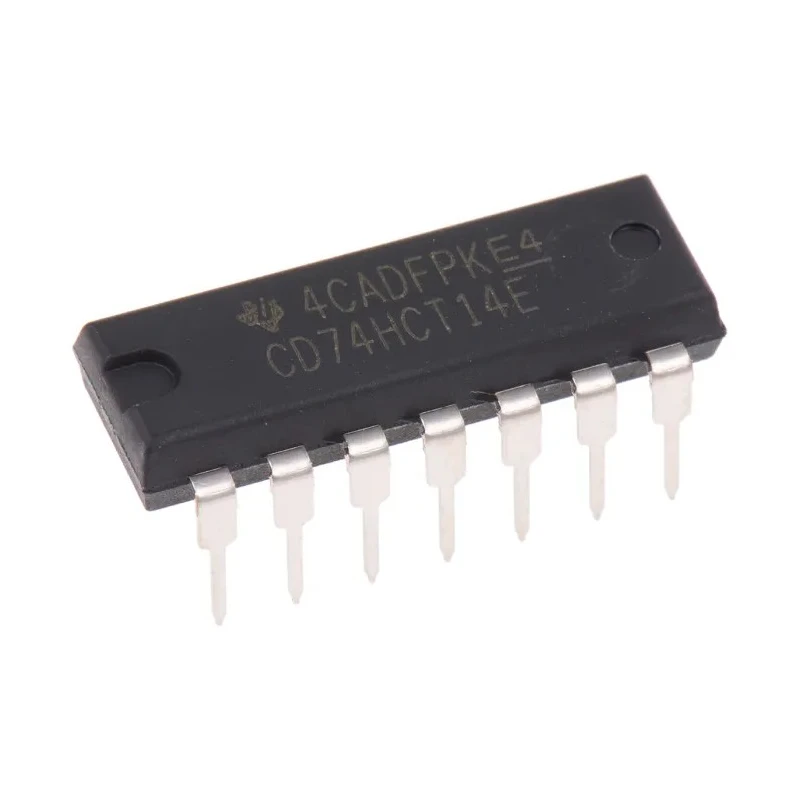

Texas Instruments Schmitt Trigger Input Inverter Logic IC CD74HCT14E 6 Elements, 14-Pin PDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | CD74HCT14E |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Compatibility | Input TTL, Output CMOS |
| Output type | Push Pull, CMOS |
| Series | CD74HCT14 |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 14 |
| Number of Elements per Chip | 6 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | HCT |
| Logic Function | Inverter |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -4mA |
| Maximum Propagation Delay Time @ CL | 57ns |
| Maximum Low Level Output Current | 4mA |
Key Features
- Operates at a supply voltage range of 4.5 to 5.5 V.
- Features high-speed CMOS logic technology ensuring low power consumption.
- Maximum propagation delay time at CL is 57 nanoseconds.
- Supports push-pull CMOS output type for effective signal drive.
- Designed to operate in temperature range from -55°C to 125°C.
- Includes 6 inverter elements per chip with Schmitt Trigger inputs for noise immunity.
- TTL compatible inputs with CMOS outputs provide wide compatibility.
- Pin count of 14 with through-hole PDIP mounting for easy PCB integration.
Product Description
Texas Instruments CD74HCT14E is a high-speed CMOS logic inverter IC featuring Schmitt Trigger inputs, ideal for noise-immune signal processing in electronic circuits.
This inverter IC has six independent inverter gates packaged in a 14-pin PDIP, making it suitable for through-hole mounting applications. It operates at supply voltages ranging from 4.5 to 5.5 volts and is designed for temperature operation between -55°C and 125°C.
Its CMOS push-pull output type ensures strong output drive capability up to ±4 mA, and the maximum propagation delay time is 57 nanoseconds, providing good switching speed for digital logic tasks.
The device belongs to the CD74HCT14 series, part of Texas Instruments' family of inverters and buffers, known for combining TTL compatible inputs with CMOS outputs for efficient, low power logic operations. It is commonly used in digital electronic systems, industrial controls, instrumentation, and communication equipment requiring clean, noise-immune logic signals.
This component is new, RoHS compliant, and comes in a through-hole PDIP package measuring approximately 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height. Its robust specifications and versatile operation temperature make it suitable for demanding industrial and laboratory environments.
Operates at supply voltage 4.5 to 5.5 V with high-speed CMOS logic. Includes 6 inverter elements with Schmitt Trigger inputs for noise immunity. TTL compatible inputs and CMOS push-pull outputs ensure broad compatibility.
Maximum propagation delay of 57 ns suitable for fast switching applications. Wide operating temperature range from -55°C to 125°C. Through-hole mount type with 14-pin PDIP package for easy integration. Compact dimensions: Length 19.3 mm, Width 6.35 mm, Height 4.57 mm.
Perfect for use in industrial controls, instrumentation, communication, and digital circuit designs. Explore more inverters and logic ICs under the Electronics & Electricals category at EnvMart for comprehensive semiconductor solutions.
Explore more products in our Inverters ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a supply voltage range of 4.5 to 5.5 volts.
This inverter IC includes 6 independent inverter elements per chip.
The maximum propagation delay time is 57 nanoseconds.
It features a push-pull CMOS output type, which ensures effective signal drive.
The device is designed to operate within a temperature range of -55°C to 125°C.
The package measures approximately 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height.
Yes, it features TTL compatible inputs along with CMOS outputs for broad compatibility.
It is designed for through-hole mounting in a 14-pin PDIP package.
The maximum high-level output current is -4 mA and the maximum low-level output current is 4 mA.
It belongs to the HCT logic family, which combines TTL compatible inputs with CMOS outputs.
The Schmitt Trigger inputs provide noise immunity, making it suitable for clean signal processing in digital circuits.
The country of origin for this product is India.
