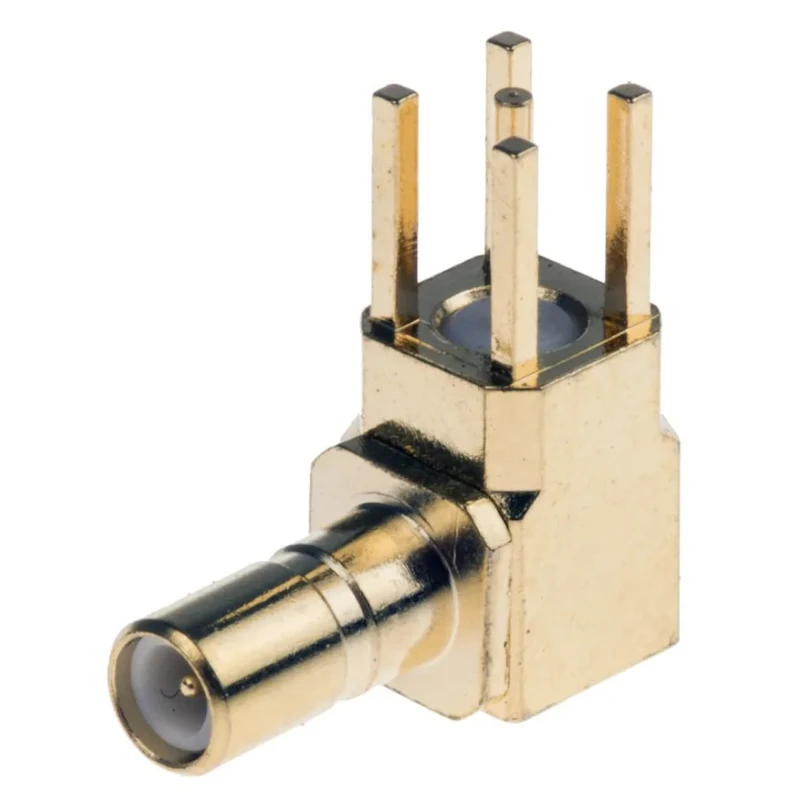

RS PRO Coaxial Connector PCB Female SSMB, 50 Ω, Right Angle Body 738-5822
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Subminiature |
| Brand | RS PRO |
| Orientation | Right Angle |
| Model | 738-5822 |
| Mount Type | PCB |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SSMB |
| Body Plating | Gold |
Key Features
- Subminiature size suitable for high-density PCB designs.
- Gold plated body and contacts for excellent corrosion resistance.
- Operates reliably up to 4 GHz frequency.
- Temperature range from -65°C to 165°C supports harsh environments.
- Constructed with brass contact material for durability.
- Features normal polarity and female gender connectors.
- Right angle orientation for flexible mounting options.
- Manufactured in Taiwan, Province Of China ensuring quality standards.
Product Description
RS PRO 738-5822 is a Coaxial Connector of the SSMB series, offering a 50 Ω impedance tailored for PCB mounting applications. Its right angle body design facilitates compact layouts in electronic assemblies commonly found across industrial, laboratory, and communication equipment.
This subminiature sized connector features gold plating on the body and contacts, protecting against corrosion and ensuring effective signal transmission at high frequencies up to 4 GHz. The brass construction lends it mechanical strength and longevity.
Handling a wide operating temperature range from -65°C to 165°C, this connector suits demanding environments typical in telecommunications, aerospace, and instrumentation industries.
The female connector with normal polarity is optimized for seamless mating within SSMB connector systems, while the right angle orientation supports space-saving PCB layouts. Made in Taiwan, Province Of China, the product conforms to RS PRO quality standards and is ideal for use in electronic components, power & connectors sectors.
Subminiature size compatible with PCB mounting. Gold plated brass body and contacts enhance durability and signal integrity. Operational frequency up to 4 GHz for high-performance applications. Wide temperature tolerances from -65°C to 165°C.
Right angle body orientation enables versatile mounting. Female connector with normal polarity ensures reliable connectivity. Manufactured under RS PRO quality control in Taiwan. Explore complete RS PRO electronic components and connectors on EnvMart for reliable industrial and manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO 738-5822 coaxial connector has an impedance of 50 Ω, making it suitable for various PCB mounting applications.
This model operates reliably at frequencies up to 4 GHz, which is ideal for high-performance applications.
The connector can operate within a temperature range of -65°C to 165°C, allowing it to function in harsh environments.
The RS PRO 738-5822 is designed for PCB mounting, making it suitable for compact electronic assemblies.
The connector features a brass contact material and is plated with gold, enhancing its durability and corrosion resistance.
This connector has a right angle orientation, which allows for flexible and space-saving mounting options on PCBs.
The RS PRO 738-5822 is a female connector with normal polarity, ensuring reliable connectivity within SSMB connector systems.
This connector is manufactured in Taiwan, Province Of China, adhering to RS PRO quality standards.
The RS PRO 738-5822 belongs to the SSMB series, which is known for its subminiature size and high-frequency performance.
The connector is classified as subminiature, making it suitable for high-density PCB designs.
This model is suitable for applications in telecommunications, aerospace, and instrumentation industries due to its robust specifications.
The contacts of the RS PRO 738-5822 connector are gold plated, which helps in providing excellent signal integrity and corrosion resistance.
