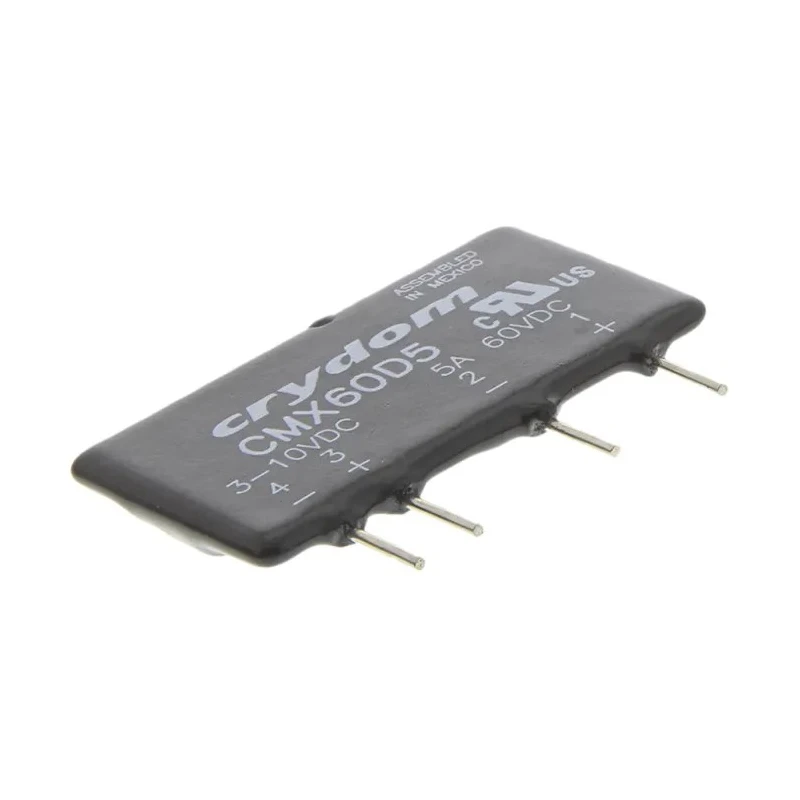

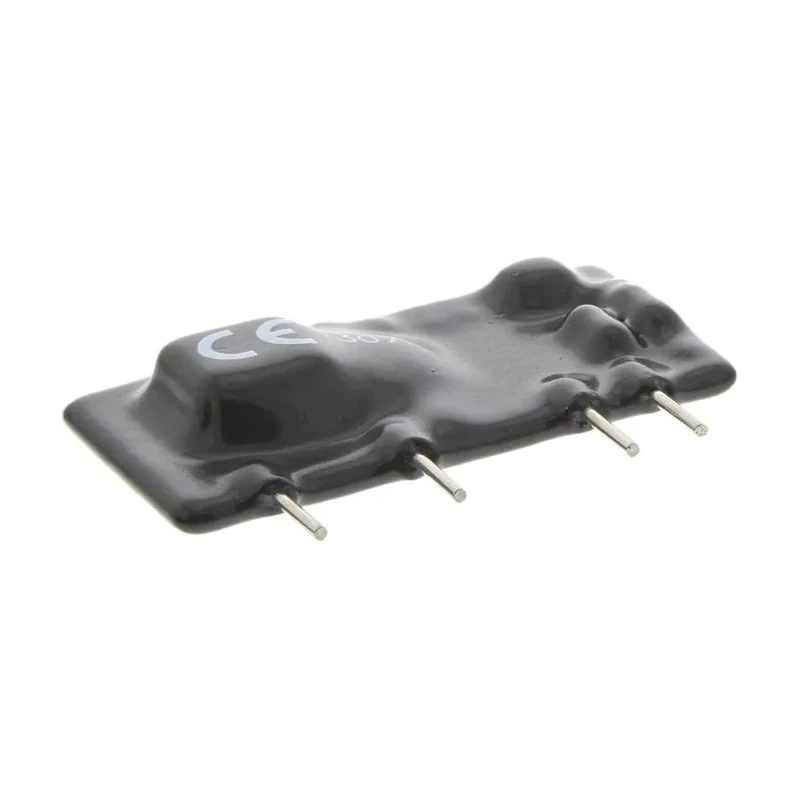

Crydom CMX Series Solid State Relay, 5 A Load Current, PCB Mount, 60 V DC Load, 10 V DC Control, MOSFET Output CMX60D5

Crydom CMX60D5 Solid State Relay is a high-performance PCB mount relay designed for DC switching applications. It features a MOSFET output with a maximum load current of 5 A and supports a maximum load voltage of 60 V DC, making it suitable for controlling DC loads in various industrial and automation systems.

The SIP-4 package with through-hole terminals offers an industry-standard footprint for easy integration into printed circuit boards. Its contact configuration is SPST, providing reliable single-pole single-throw switching functionality. The relay operates efficiently across a wide temperature range of -30°C to +80°C, making it capable of withstanding challenging industrial conditions.

With a low off-state leakage current of 100μA DC and a small input-output capacitance of 15pF, this relay minimizes power loss and signal interference. The surge current peak of 100 A ensures the relay can handle transient current spikes commonly encountered in automation and control systems.

The CMX60D5 model is commonly used in applications such as solenoid valve control, driving DC coils on larger contactors in microprocessor-controlled systems, and DC lighting control. Its compliance with CE, RoHS, and UL standards guarantees quality and safety in industrial environments.

Manufactured in Mexico, this relay offers reliable MOSFET output technology combined with high switching performance. It is ideal for electrical automation, industrial manufacturing, HVAC controls, and other processes requiring robust DC load switching.

The relay supports 5 A DC load current and 60 V DC load voltage. PCB mount SIP-4 package with through-hole terminals facilitates easy installation. Operating temperature ranges between -30°C and +80°C for demanding environments.

Low off-state leakage current of 100μA DC and 15pF input-output capacitance. SPST contact configuration with DC switching function. Surge current peak rating of 100 A for transient robustness. Certifications: CE, RoHS, UL compliant.

Typical industrial uses include solenoid valve control and DC coil driving. High-quality MOSFET output solid state relay technology. Manufactured in Mexico ensuring consistent quality. Explore a wide range of Solid State Relays and related industrial control components on EnvMart for your automation and electrical system needs.
