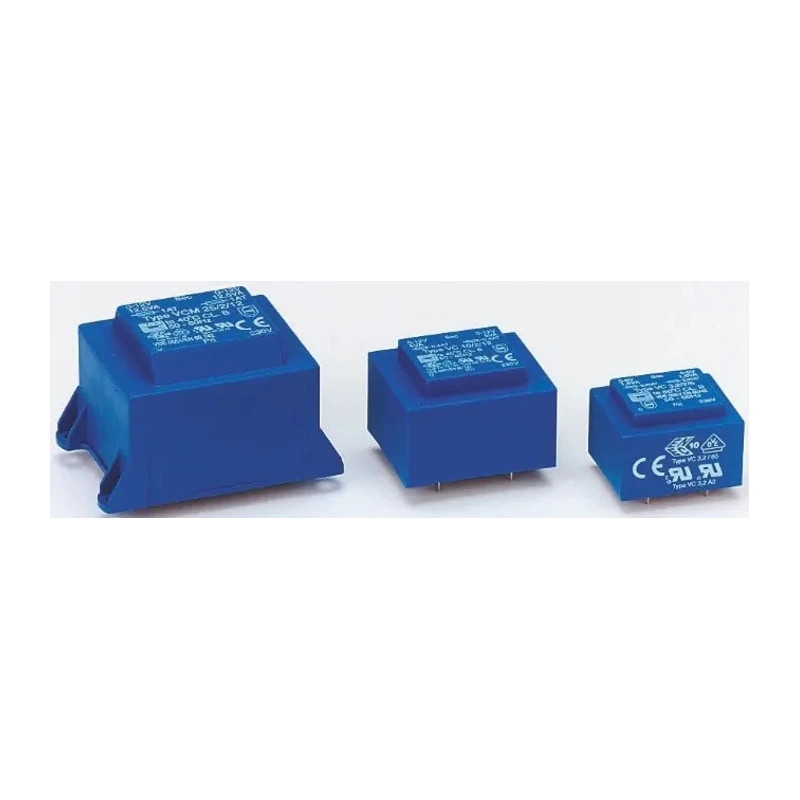

Block PCB Transformer 230 V ac Primary, 6 V ac Secondary, 1 Output, 5 VA, Pin Mount VC 5,0/1/6

Free Delivery in India | Lowest Global Shipping Charges

Block PCB Transformer 230 V ac Primary, 6 V ac Secondary, 1 Output, 5 VA, Pin Mount VC 5,0/1/6

Name: Block PCB Transformer 230 V ac Primary, 6 V ac Secondary, 1 Output, 5 VA, Pin Mount VC 5,0/1/6
Brand: Block
SKU: 128864
Price: 15.59 USD
Availability: InStock



Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Efficiency	68%
Length	44mm
Model	VC 5,0/1/6
Depth	33mm
Gross Weight	190g
Width	37mm
Mount Type	Pin
Series	VC 5.0/1/6
Maximum Operating Temperature	50°C
Number of outputs	1
Standards/Approvals	ENEC 10 (VDE), C-UL-US
Isolation Voltage	5000V
Primary Voltage	230 V ac
Secondary Voltage	6 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Small and compact transformer with dimensions 44mm x 37mm x 33mm.
High isolation voltage of 5000V for safety and reliability.
Efficiency rated at 68%, designed to operate at 50 to 60 Hz frequency.
Vacuum resin moulded to UL94-V0 standards ensuring low inter-winding capacitance and minimal radiated noise.
Meets ENEC 10 (VDE), C-UL-US standards for quality and safety.
Maximum operating temperature limited to 50°C for optimal performance.
Single output winding ideal for varied electronic and industrial applications.

Product Description

Block VC 5,0/1/6 PCB Transformer is a precision-built component designed for electronic applications requiring a stable 6 V ac output from a 230 V ac primary source. This 5 VA pin mount transformer is vacuum resin moulded to UL94-V0 fire protection standards, ensuring durability and safety in electronic circuits.

Its compact dimensions of 44mm length, 37mm width, and 33mm depth make it well suited for PCB mounting in dense layouts. The transformer operates efficiently at 68%, providing reliable performance with low radiated noise and low inter-winding capacitance.

Certified under ENEC 10 (VDE) and C-UL-US standards, this transformer also features a robust isolation voltage of 5000V to ensure user and equipment safety, with a maximum operating temperature of 50°C, suitable for controlled environments.

The single output winding allows straightforward integration into a wide range of industrial, laboratory, and electronic equipment requiring low power conversion from mains voltage to safer low voltage levels. Its vacuum resin moulding further enhances electrical endurance and mechanical protection.

Compact pin mount design for easy PCB integration. High isolation and electrical safety with 5000V rating. Meets international safety and quality standards ENEC 10 (VDE), C-UL-US. Operates efficiently at standard frequencies of 50 to 60 Hz.

Vacuum resin moulded for fire retardant and low noise operation. Lightweight at approximately 190 grams optimizing PCB load. Designed for industrial and electronic circuit applications requiring secondary voltage stepping down to 6V ac.

This Block PCB Transformer series is ideal for use in industrial automation, power supply design, laboratory instrumentation, HVAC controls, and general electronics assembly where reliable low voltage AC outputs with safety certifications are required.

Explore the PCB Transformer category at EnvMart for additional components and compatible models from Block and other top manufacturers to suit your exact electronic design needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The primary voltage rating of this model is 230 V ac.

It provides a secondary voltage output of 6 V ac.

The maximum operating temperature is limited to 50°C.

The dimensions are 44mm in length, 37mm in width, and 33mm in depth.

It has an efficiency rating of 68%.

The isolation voltage is rated at 5000V.

It meets ENEC 10 (VDE) and C-UL-US standards for quality and safety.

This model uses a pin mount type for easy PCB integration.

The gross weight of this transformer is approximately 190 grams.

It operates efficiently at a frequency range of 50 to 60 Hz.

This model has a single output winding.

This transformer is suitable for industrial automation, power supply design, laboratory instrumentation, HVAC controls, and general electronics assembly.
