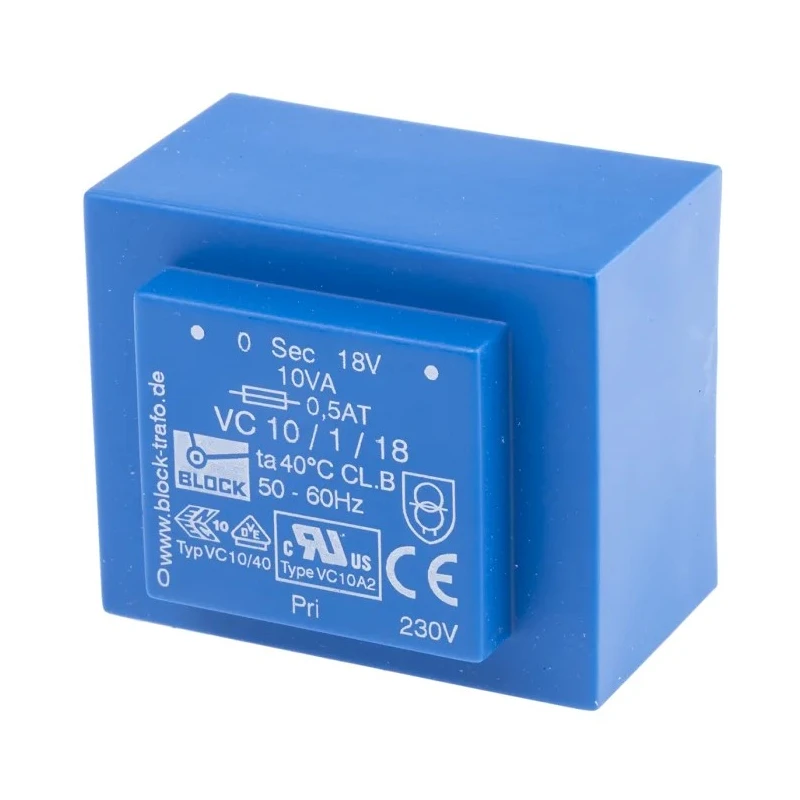

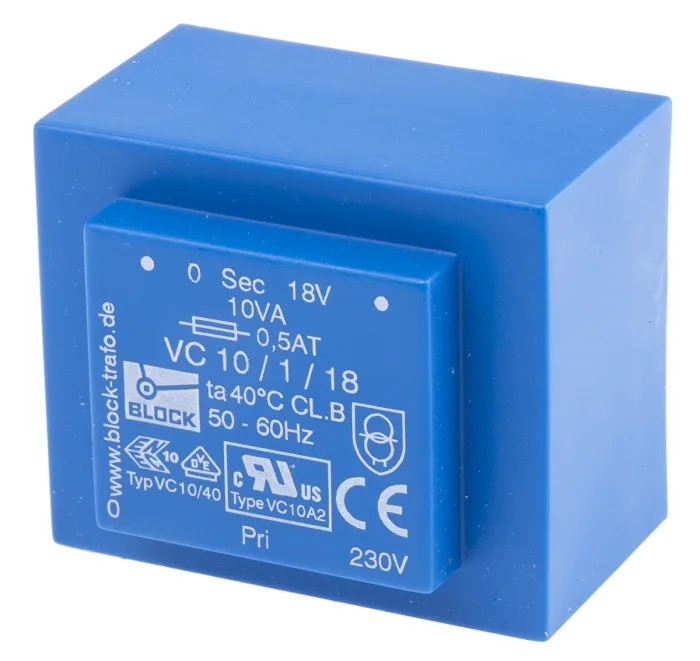

Block PCB Transformer 230 V ac Primary Voltage 18 V ac Secondary Voltage 10 VA Power Pin Mounting C-UL-US ENEC 10 VC 10/1/18

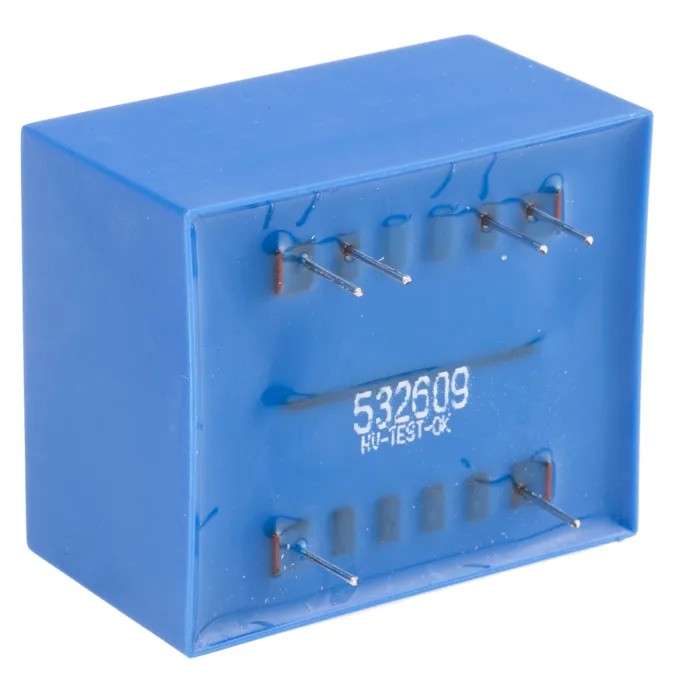

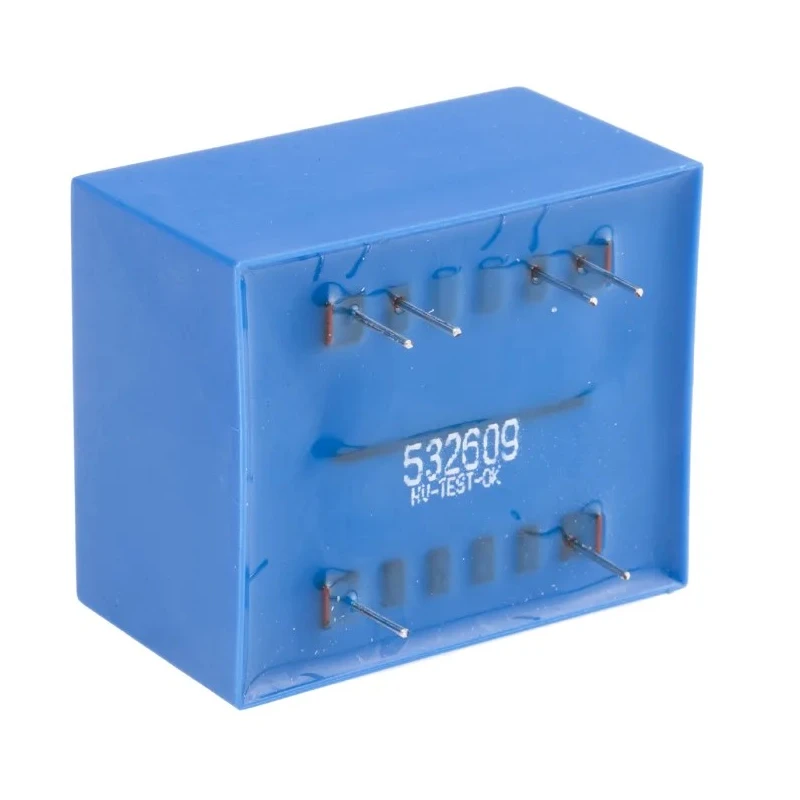

Block VC 10/1/18 PCB Transformer is designed for electronic power applications requiring safe and efficient voltage conversion. It operates with a primary voltage of 230 V ac and provides a secondary output of 18 V ac. The transformer delivers a power capacity of 10 VA and is designed to be mounted on printed circuit boards using pin mount technology. Its compact dimensions of 51 mm length, 27.5 mm width, and 34.6 mm depth fit well in diverse PCB layouts.

This transformer is vacuum resin moulded complying with UL94-V0 flame retardant standards, ensuring high electrical insulation and safety. It features low inter-winding capacitance and low radiated noise, making it ideal for sensitive electronic circuits. The unit offers a high isolation voltage of 5000 V and an efficiency rating of 74% to optimize energy usage.

Designed for operation between 50 Hz and 60 Hz frequencies with a maximum temperature rating of 40°C, this transformer guarantees reliable performance under typical industrial and consumer electronic conditions. It includes extra fixing points ensuring secure installation on boards.

Block VC 10/1/18 meets stringent safety and quality certifications including C-UL-US and ENEC 10 (VDE) standards, reflecting its suitability for demanding electrical applications. Manufactured in Germany, it upholds premium quality and manufacturing excellence.

Single output pin design ideal for PCB transformers. Vacuum resin moulded for flame retardant and electrical insulation UL94-V0. High isolation voltage rating of 5000 V enhances operational safety. Low radiated noise and low inter-winding capacitance for electronic noise reduction.

Efficiency rated at 74% ensures energy economy. Supports operating frequencies of 50 Hz to 60 Hz for versatile use. Maximum operating temperature of 40°C designed for reliable durability. Extra fixing points secure the transformer firmly to PCB.

Certified to C-UL-US and ENEC 10 (VDE) standards. Manufactured in Germany assuring premium quality.

This PCB Transformer is ideal for use in electronic power supplies and various industrial, laboratory, and consumer electronics applications requiring reliable energy transformation and electrical isolation. Explore the range of transformers available in the Electronics & Electricals category at EnvMart for compatible products suited to your specifications.
