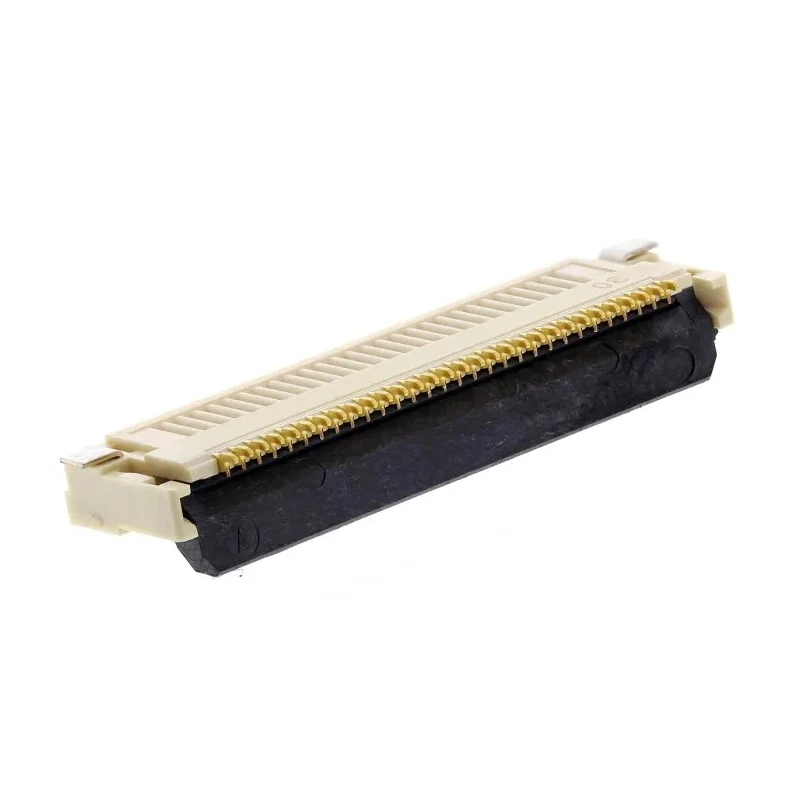

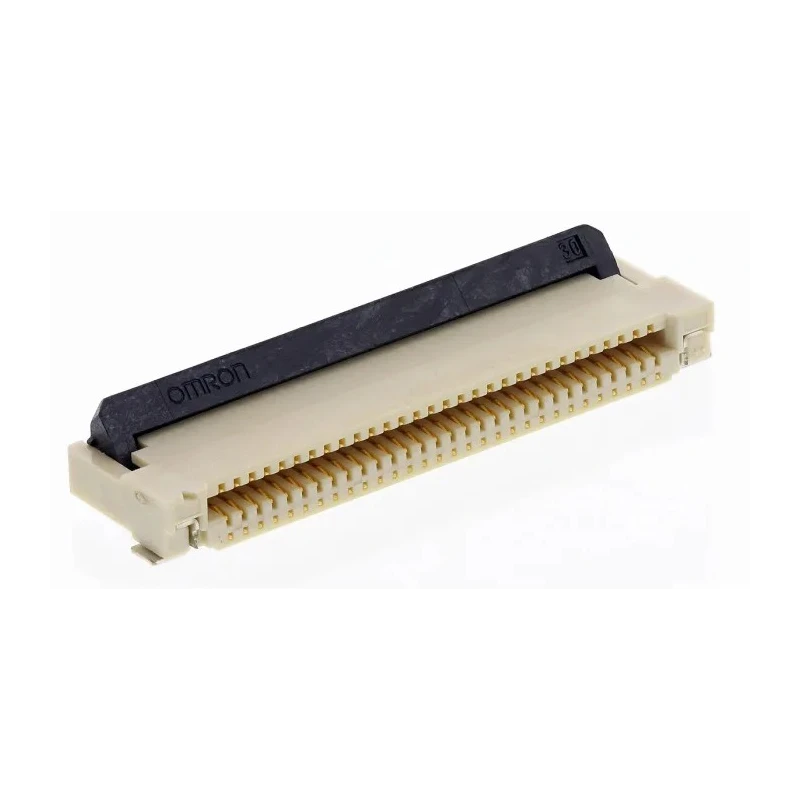

Omron XF2M 0.5 mm Pitch 30 Way Right Angle Female FPC Connector, Solder
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Omron |
| Orientation | Right Angle |
| Current | 500mA |
| Model | XF2M |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | XF2M |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Position | Dual |
Key Features
- 30 contact FPC connector with a 0.5 mm pitch for high-density applications.
- Right angle female connector designed for surface mount technology (SMT).
- Gold over nickel contact plating provides reliable conductivity and corrosion resistance.
- Housing made from liquid crystal polymer (LCP) resin with UL94V-0 flame rating.
- Operates reliably within temperature range of -30°C to 85°C.
- Features rotary backlock for secure and easy FPC mounting.
- Suitable for small mobile devices such as cameras, phones, and digital players.
- Halogen free and low profile design with 2 mm board height for compact installations.
Product Description
Omron XF2M-3015-1A 0.5 mm Pitch 30 Way Right Angle Female FPC Connector, Solder type is engineered for precision electronic assembly requiring secure, compact, and reliable interconnections.
This FPC connector features a low 2 mm board profile and a rotary backlock mechanism that simplifies the installation process while improving contact reliability. The dual-sided contacts are arranged in a single row with a 0.5 mm pitch, enabling high-density connections ideal for space-constrained electronic devices.
The contacts are made of copper alloy and plated with gold over nickel to ensure excellent electrical conductivity and durability. A housing constructed from liquid crystal polymer (LCP), rated UL94V-0, provides robust mechanical strength and flame retardance. This connector is also halogen-free, aligning with environmental safety standards.
Designed to operate reliably between -30°C and 85°C, this Omron connector supports current ratings up to 500 mA and voltages up to 50 V AC, making it suitable for a wide range of low-power electronic applications.
Its right angle orientation and SMT mount type facilitate efficient PCB designs, especially in compact portable devices such as digital cameras, mobile phones, digital audio/video players, and DVD players. The rotary backlock mechanism aids in secure cable retention and easy assembly, enhancing overall device reliability.
30 contact FPC connector with 0.5 mm pitch for precise, high-density connections. Compact 2 mm on-board profile suitable for tight spaces. Rotary backlock mechanism ensures firm FPC retention and assembly ease. Gold over nickel plating enhances electrical performance and corrosion resistance.
LCP housing with UL94V-0 rating for high flame retardance and durability. Right angle orientation designed for space-saving PCB layouts. Supports current up to 500 mA and voltage up to 50 V AC. Operating temperature range from -30°C to +85°C for reliable performance.
Halogen free compliant for environmentally friendly applications. Ideal for use in mobile and portable electronic devices.
This Omron XF2M series FPC Connector is a reliable solution for engineers designing compact, high-performance electronics that require secure, low-profile connectors. Explore more connectors and electronic components on EnvMart for your industrial, manufacturing, and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this FPC connector have a pitch of 0.5 mm, allowing for high-density connections.
This model supports a maximum current rating of 500 mA, making it suitable for low-power electronic applications.
The connector can handle voltages up to 50 V AC, suitable for various electronic devices.
It operates reliably within a temperature range of -30°C to 85°C.
The housing is made from liquid crystal polymer (LCP), and the contacts are made of copper alloy with gold over nickel plating for conductivity.
This FPC connector features 30 contacts, arranged in a single row.
It is designed for surface mount technology (SMT), facilitating efficient PCB designs.
The connector has a right angle orientation, which is beneficial for compact PCB layouts.
The housing material has a UL94V-0 flame rating, indicating good flame retardance.
Yes, it is halogen-free, aligning with environmental safety standards.
The termination type of this model is solder, suitable for secure connections.
It is suitable for use in small mobile devices such as cameras, phones, and digital players due to its compact design.
