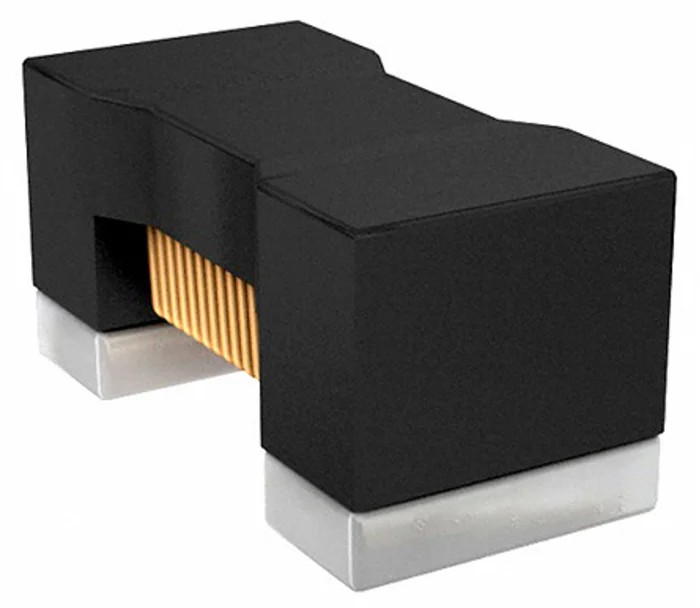

Murata 0603 Unshielded Wirewound Surface Mount Inductor Ferrite Core 10 nH ±2% 650 mA Idc Q:35 LQW18AN10NG00D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | LQW18AN10NG00D |
| Depth | 0.8mm |
| Packaging | Paper Tape |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | LAN |
| Core Material | Ferrite |
| Inductance | 10nH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 650mA |
| Pin Count | 2 |
| Maximum DC Resistance | 110mΩ |
| Inductance Tolerance | ±2 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 6GHz |
| Minimum Quality Factor | 35 |
| Inductor Construction | Wirewound |
Key Features
- This 0603 package inductor supports a maximum DC current of 650 mA.
- Features a high quality wirewound construction optimized for VHF and UHF applications.
- The device has a maximum DC resistance of 110 mΩ for efficient operation.
- It operates safely between -55°C and 125°C ensuring reliability.
- The inductor provides a high-quality factor of 35 and a maximum self-resonant frequency of 6 GHz.
- Its ferrite core material enhances inductance stability and performance.
- Packaged in paper tape format for efficient automated mounting.
- Designed for solder termination style and includes two pins.
Product Description
Murata LQW18AN10NG00D is an unshielded wirewound surface mount inductor featuring a compact 0603 package size with dimensions of 1.6 mm length, 0.8 mm height, and 0.8 mm depth. The inductor is constructed with a ferrite core that guarantees high inductance stability of 10 nH with a tight ±2% tolerance. Its wirewound design delivers high resonance frequencies and low DC resistance, making it ideal for high frequency circuits such as Bluetooth, GSM, and WLAN wireless telecommunications equipment.
This surface mount inductor carries a maximum DC current rating of 650 mA and exhibits a maximum DC resistance of 110 mΩ. It is designed for operation over a wide temperature range from -55°C up to 125°C, ensuring robust performance in challenging industrial and electronic environments.
The device provides a minimum quality factor of 35 and a maximum self resonant frequency of 6 GHz, which supports efficient signal filtering and energy storage in power and RF circuits. It is supplied in paper tape packaging suitable for automatic pick-and-place assembly and features solder termination style with two mounting pins for reliable electrical connection.
Murata LQW18AN10NG00D complies with RoHS standards, reflecting adherence to environmental and safety regulations. This product is suitable for a wide range of industrial, telecommunications, and consumer electronics applications requiring compact, high-frequency inductors.
This 0603 wirewound surface mount inductor provides precise inductance values with ±2% tolerance. Supports high operating frequencies with a self resonant frequency up to 6 GHz. Wide temperature range operation from -55°C to 125°C enables industrial reliability.
Low DC resistance of 110 mΩ minimizes power loss in circuits. Ferrite core construction ensures consistent magnetic performance. Designed for automated assembly using paper tape packaging and solder terminations. Explore more Surface Mount Inductors and other electronic components at EnvMart for your high-frequency circuit design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 10 nH with a tolerance of ±2%.
It supports a maximum DC current of 650 mA.
The dimensions are 1.6 mm in length, 0.8 mm in height, and 0.8 mm in depth.
The maximum self-resonant frequency is 6 GHz.
It has a maximum DC resistance of 110 mΩ.
It operates safely between -55°C and 125°C.
It provides a minimum quality factor of 35.
The core material is ferrite, which enhances inductance stability and performance.
It is supplied in paper tape format, suitable for automated pick-and-place assembly.
It features a solder termination style with two mounting pins.
It complies with RoHS standards, reflecting adherence to environmental regulations.
It is suitable for high frequency circuits such as Bluetooth, GSM, and WLAN telecommunications equipment.
