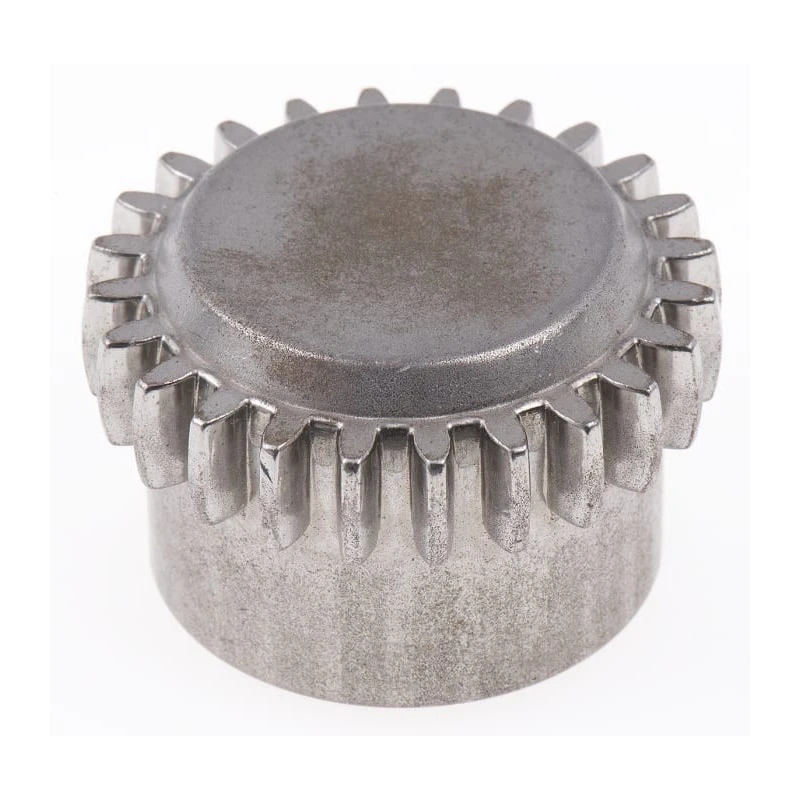

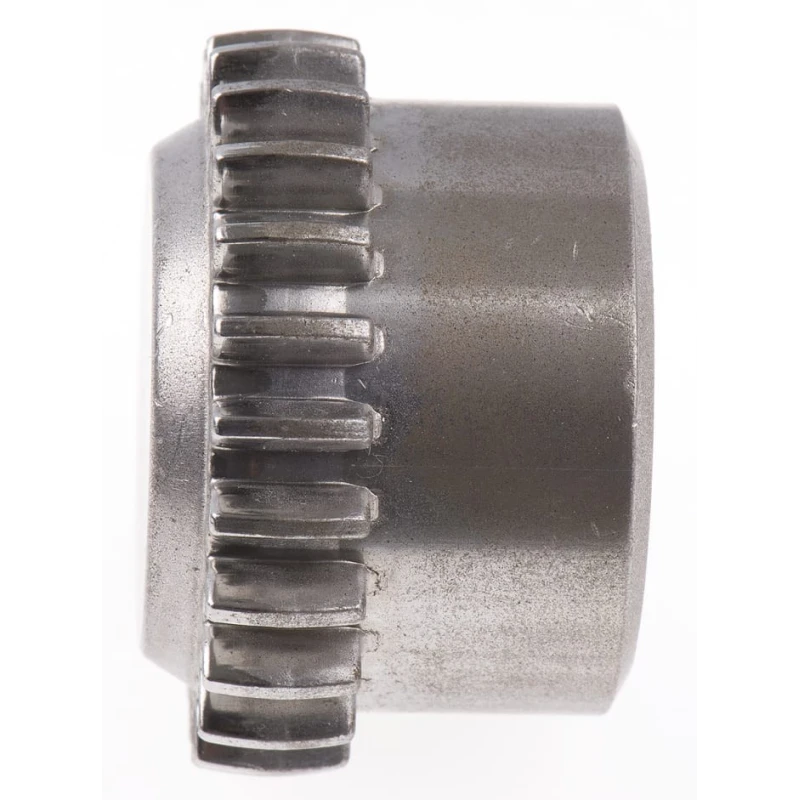

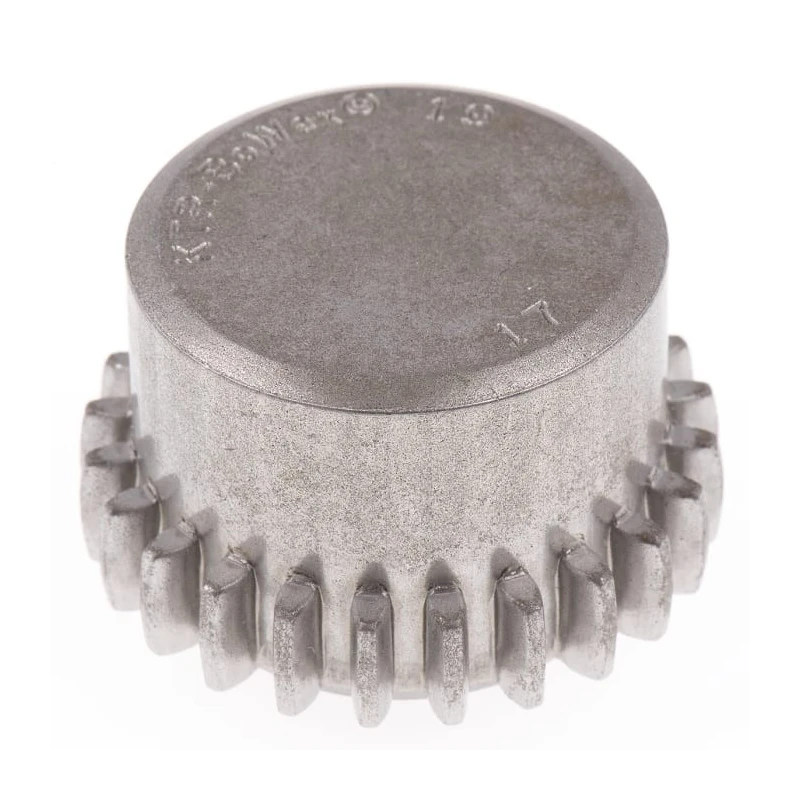

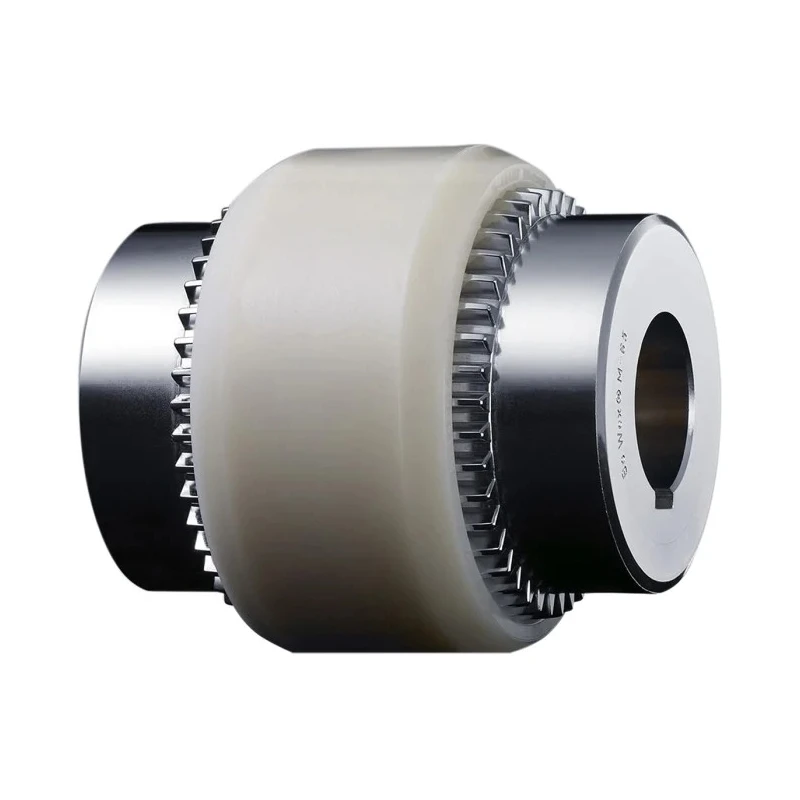

KTR Steel Flexible Coupler 65mm Bore 96mm Outside Diameter Torque Rating 1140Nm BOWEXM65-HUB-PB

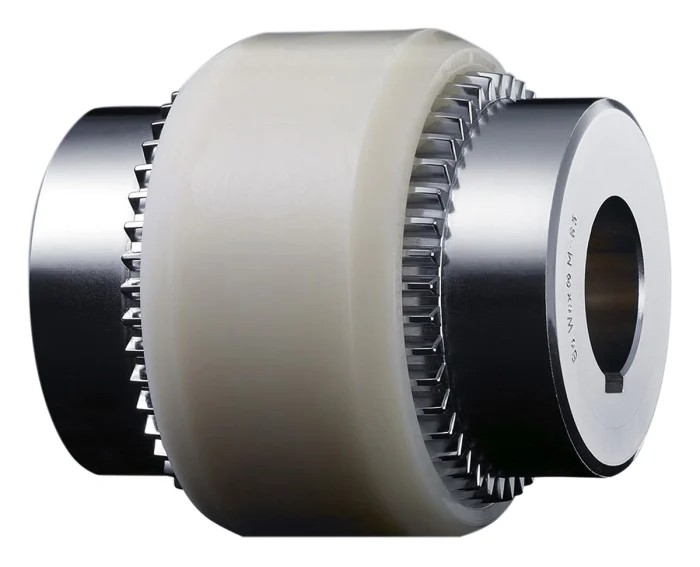

KTR BOWEXM65-HUB-PB flexible coupler is a steel mechanical power transmission component featuring a 65mm bore and 96mm outside diameter. With a torque rating of 1140Nm, this coupling is engineered for high performance and durability in industrial machinery and hydraulic applications. It efficiently absorbs axial, angular, and radial misalignment through its BoWex® curved-tooth gear design, which prevents wear by avoiding edge pressure and displacements in the spline.

The combination of steel hubs and polyamide sleeves provides maintenance-free continuous operation with low friction and eliminates the need for lubrication. The coupler's double cardanic operation minimizes restoring forces in cases of angular and radial displacement, thus preventing periodic fluctuations in angular velocity. This design enhances operational reliability and extends service life.

These couplings are designed for versatile assembly either vertically or horizontally without the need for special tools, improving installation flexibility. Their high thermal stability and resistance to lubricants, fuels, hydraulic fluids, and solvents make them suitable for use in aggressive environments such as food processing, printing and paper industries, textile production, sewage technology, chemical and pharmaceutical sectors, and offshore units.

KTR BOWEXM65-HUB-PB steel flexible coupler meets EC directive 94/9/EC March 23 and ATEX 1994 standards. The product is manufactured in Germany with high-quality steel and comes finished with a keyway bore type. Its operating temperature tolerance reaches up to 100° Celsius, and it effectively absorbs misalignments with an angular misalignment tolerance of 0.5° and parallel misalignment of 0.28mm.

Constructed from high-grade steel for durability and strength. BoWex® curved-tooth gear coupling design compensates for axial, radial, and angular misalignment. Maintenance free operation enabled by nylon and steel material combination.

Suitable for applications in food, textile, paper, chemical, and pharmaceutical industries. Can be assembled vertically or horizontally without special tools. Operates effectively in aggressive environments including exposure to air, water, and chemicals.

Temperature resistant up to 100° Celsius. Torque rating of 1140Nm supports robust power transmission needs.

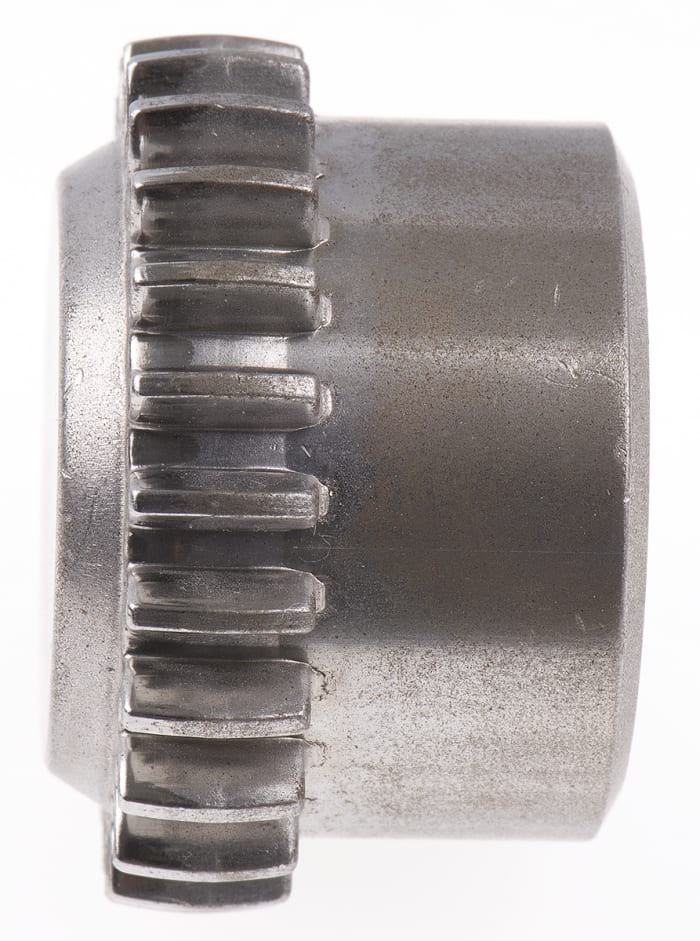

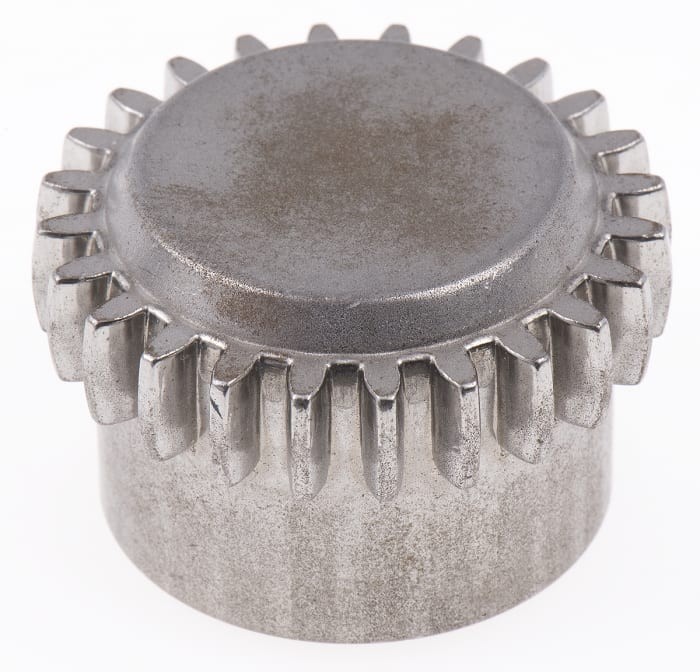

This coupling hub is supplied unbored to allow machining within coupling parameters by the customer and forms part of a three-piece set including two coupling hubs and a gear coupling sleeve, sold separately. KTR flexible couplers are industrial-grade mechanical components offering torsionally rigid connection for efficient and reliable power transmission in multiple sectors.
