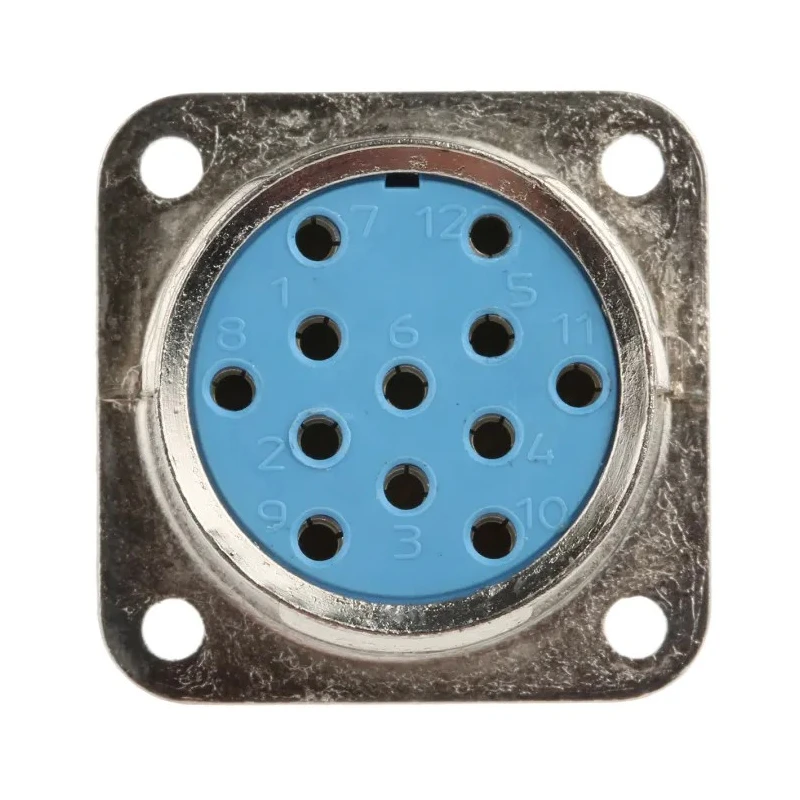

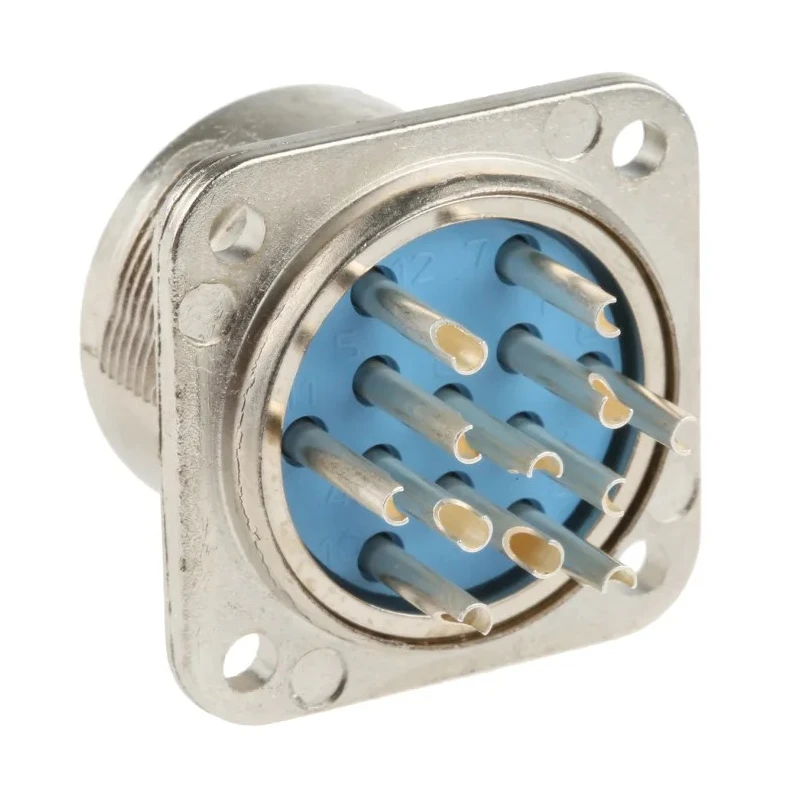

Jaeger Circular Connector, 12 Contacts, Panel Mount, Standard Size, Female, IP50 IP54, 15A Current, MIL-DTL-5015 5366 120 06
Specifications
| Country of Origin | France |
|---|---|
| Brand | Jaeger |
| Orientation | Straight |
| Current | 15A |
| IP Rating | IP50, IP54 |
| Mount Type | Panel Mount |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -50°C |
| Standards/Approvals | MIL-DTL-5015 |
| Contact Plating | Silver |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Shell Size | 2 |
| Connector Size | Standard |
Key Features
- Panel Mount design provides secure and stable installation.
- Standard size shell size 2 for compatibility with industry connections.
- Features 12 silver-plated female contacts for reliable electrical connection.
- Rated for 15 amperes current ensuring safe power transfer.
- Contact plating with silver optimizes conductivity and corrosion resistance.
- Certified to MIL-DTL-5015 military standard for durability and quality.
- Operating temperature range from -50°C to +100°C for wide application versatility.
- Solder termination type enables strong and durable wire connections.
Product Description
Jaeger 5366 120 06 Circular Connector is a high-quality industrial circular connector designed for harsh and demanding environments. This panel mount connector features 12 female silver-plated contacts housed in a standard shell size 2, supporting a current rating of 15A. It is compliant with the MIL-DTL-5015 military specifications, ensuring ruggedness and reliability for industrial, manufacturing, and electronic applications.
The connector’s IP50 and IP54 ratings protect against dust ingress and splashing water, making it suitable for a wide range of conditions across industrial, laboratory, construction, and automation sectors. Rated for an operating temperature range between -50°C and 100°C, this connector maintains performance under extreme temperatures.
The solder termination type allows for secure and permanent cable connections, ideal for panel-mounted assemblies. Its straight orientation and female contact gender enhance ease of mating with compatible cable plugs. Manufactured in France, this product meets high European quality standards ensuring long service life and dependable electrical contact.
Panel mount design ensures firm fitting and stability in equipment chassis. 12 silver-plated female contacts provide excellent conductivity and wear resistance. Standard shell size assures broad compatibility with connector systems.
Conforms to MIL-DTL-5015 specifications for military-grade durability. Wide temperature range supports demanding industrial and electronic environments. IP50 and IP54 ratings offer effective dust and splash water protection.
Solder termination ensures durable and reliable wire connection. Manufactured in France with stringent quality controls.
This Jaeger circular connector is recommended for industrial machinery, electronic devices, and harsh environment installations requiring robust and reliable electrical connections. It is a trusted choice for engineers and OEMs seeking performance and compliance with military standards. Browse more from Jaeger connectors and enhance your industrial component sourcing with EnvMart.
Explore more products in our Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 15A, ensuring safe power transfer for various applications.
The connector has IP50 and IP54 ratings, providing protection against dust ingress and splashing water.
It operates effectively within a temperature range of -50°C to +100°C, suitable for extreme environments.
This circular connector features 12 female contacts, designed for reliable electrical connections.
It utilizes a solder termination type, allowing for strong and durable wire connections.
The shell size is standard size 2, ensuring compatibility with various industry connections.
Yes, it is certified to MIL-DTL-5015 military standards, ensuring ruggedness and reliability.
The orientation of this model is straight, facilitating ease of mating with compatible plugs.
This circular connector is manufactured in France, adhering to high European quality standards.
The contacts are silver-plated, optimizing conductivity and corrosion resistance for reliable performance.
It features a panel mount design, providing secure and stable installation in equipment chassis.
This model is recommended for industrial machinery, electronic devices, and installations in harsh environments.
