Murata 220 nH ±2% 0603 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 120 mA Max DC Current LQW18ANR22G00D

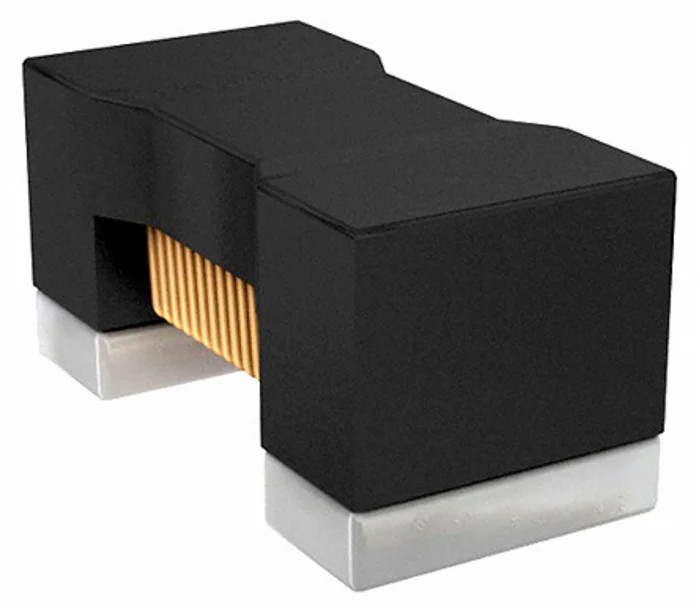

Murata LQW18ANR22G00D is a 0603 unshielded wirewound surface mount inductor featuring a ferrite core designed for high frequency circuit applications. This passive component offers an inductance of 220 nH with a tight ±2% tolerance and supports a maximum DC current of 120 mA, making it suitable for low power wireless telecommunications equipment such as Bluetooth, GSM, and W-LAN devices.

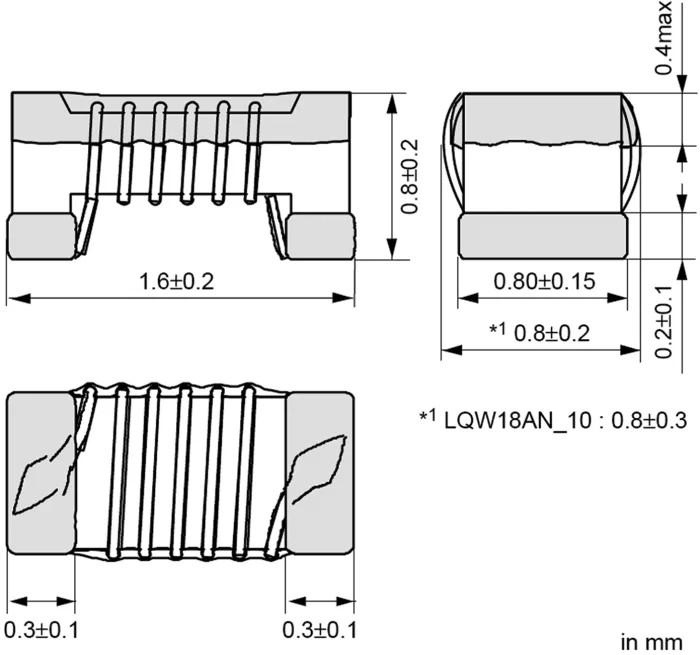

The inductor is built as part of the LQW18AN series known for high resonance frequency and low tolerance values. Its compact dimensions - length 1.6 mm, height 0.8 mm, and depth 0.8 mm - facilitate integration into compact modern electronic devices. The maximum DC resistance is only 2.5 Ω, improving performance through reduced losses.

It is designed to operate reliably across a wide temperature range down to -55°C and up to 125°C maximum. The solder termination style is optimized for standard surface mount assembly techniques and the device is packaged on paper tape to support mass production environments.

Applications include high frequency circuits used in wireless telecommunications, demanding environments requiring stable performance at frequencies up to 1.2 GHz. The ferrite core enhances magnetic efficiency and quality factor, which is rated minimum 25, suitable for VHF and UHF applications.

This inductor conforms to the RoHS directive ensuring compliance with environmental regulations. It is moulded to enhance mechanical strength and durability in surface mount applications, classified as a new condition product.

Compact 0603 package size suitable for dense PCB layouts. Wirewound construction provides stable inductance at high frequencies. Maximum operating temperature of 125°C ensures reliability in harsh conditions. Low maximum DC resistance of 2.5 Ω minimizes power losses.

Frequency capability up to 1.2 GHz ideal for VHF and UHF applications. Core material is ferrite, providing efficient magnetic performance. Solder termination style ensures easy surface mounting on PCBs. RoHS compliant, meeting environmental and safety standards.

High quality factor of at least 25 contributing to efficient signal filtering. Packaged in paper tape to facilitate automated assembly processes.

Ideal for use in industrial electronics, telecommunications, manufacturing assembly lines, and laboratory electronic circuit prototyping. Consider exploring related Surface Mount Inductors on EnvMart for varied inductance values and current ratings.
