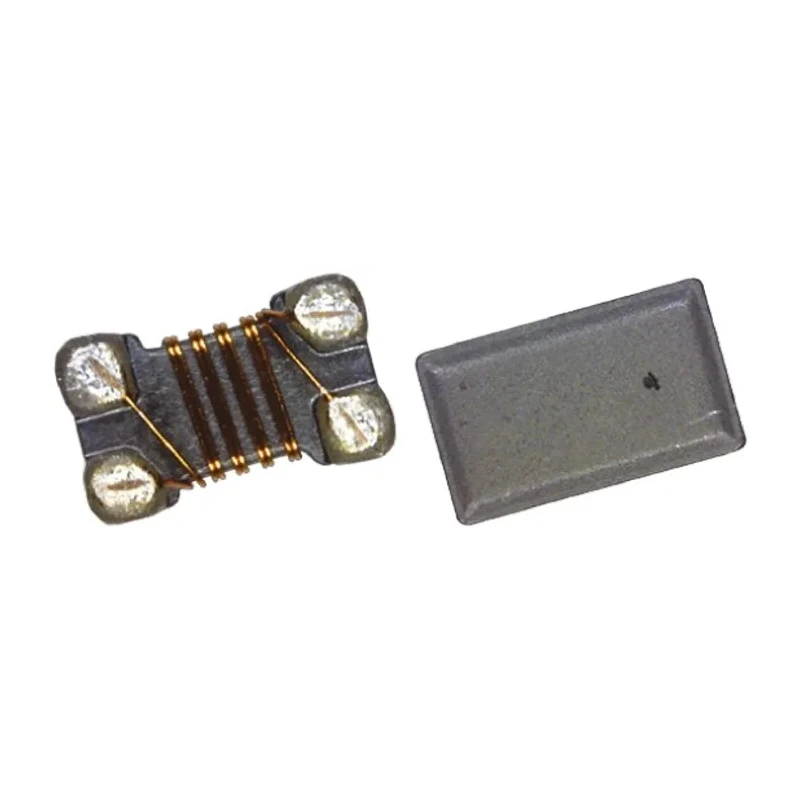

Murata 0805 Shielded Surface Mount Common Mode Choke 330mA DC Current DLW21S
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 1.2mm |
| Length | 2mm |
| Model | DLW21S |
| Depth | 1.2mm |
| Packaging | Embossed Tape |
| Series | DLW21S |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 330mA |
| Pin Count | 4 |
| Maximum DC Resistance | 350mΩ |
| Inductance Tolerance | ±25 % |
| Termination Style | Tin plating |
| Inductor Construction | Wirewound |
Key Features
- Compact 0805 package with embossed tape packaging for efficient assembly.
- Shielded design minimizes electromagnetic interference.
- Wirewound inductor construction ensures stable inductance.
- Suitable for USB, LVDS, and digital AV equipment signal lines.
- Temperature range from -40°C to 85°C supports varied operating environments.
- Maximum DC resistance is 350mΩ ensuring low power loss.
- Tin plating termination style assures reliable solder connections.
- RoHS compliant and molded for durability and environmental safety.
Product Description

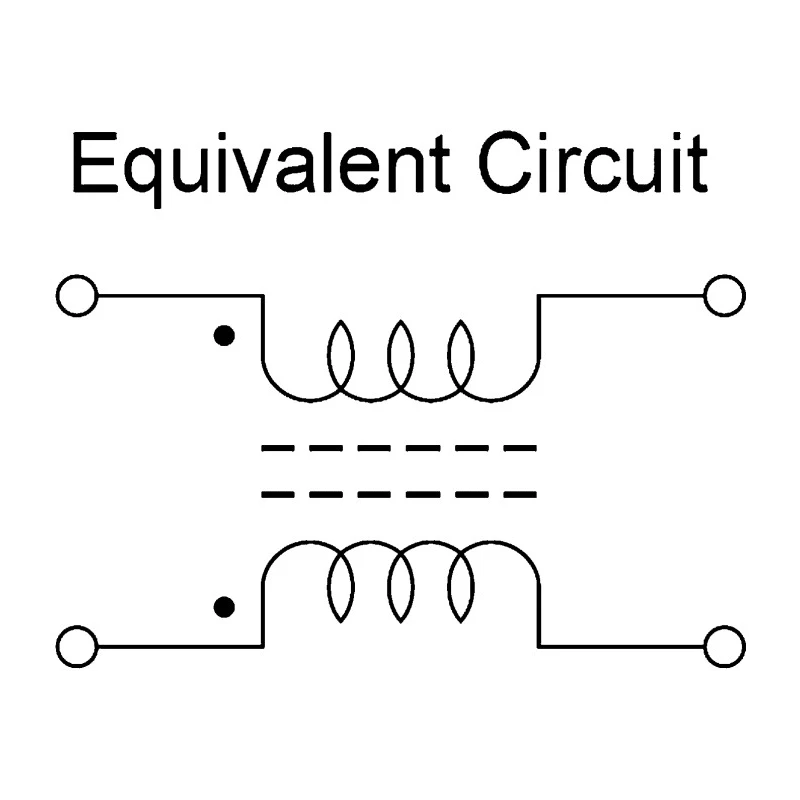

Murata DLW21S is a shielded surface mount common mode choke in an 0805 package designed for suppressing noise on differential signal lines without affecting signal integrity. This common mode choke supports a maximum DC current of 330mA and is housed in an embossed tape packaging format which aids efficient automated PCB assembly processes.
The wirewound construction provides consistent inductance with a tolerance of ±25% and a maximum DC resistance of 350mΩ, making it suited for applications in USB lines of PCs and peripheral equipment, LVDS lines of notebooks and LCDs, as well as small digital AV devices including digital cameras.
Its shielding effectively reduces electromagnetic interference, improving signal quality across complex electronic interfaces within industrial, computing, consumer electronics, and communication device manufacturing.
The component operates reliably across a temperature range of -40°C to 85°C and uses tin plating termination to ensure strong and consistent solder joints. It is molded for robustness and RoHS compliant to meet environmental standards.
The DLW21S series by Murata is manufactured in Japan, delivering high quality and consistent performance for advanced electronic design needs. Compact 0805 size ensures space-saving PCB layout. Shielded structure enhances EMI suppression.
Wirewound design delivers stable inductance performance. Suitable for USB, LVDS, and digital AV signal lines. Wide operating temperature range from -40°C to 85°C. Low maximum DC resistance of 350mΩ reduces power loss. Molded RoHS compliant design ensures safety and durability.
Reliable tin plating termination style for effective soldering.
Explore a broad selection of high-quality electronic components like the Murata DLW21S surface mount inductors in the Surface Mount Inductors category at EnvMart to optimize your industrial, laboratory, or electronic assembly projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC current rating for this model is 330mA.
It operates reliably within a temperature range of -40°C to 85°C.

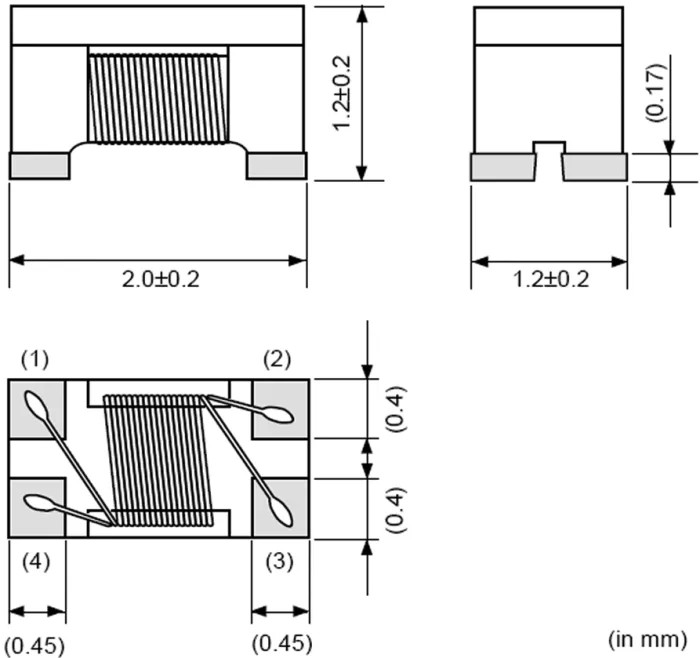

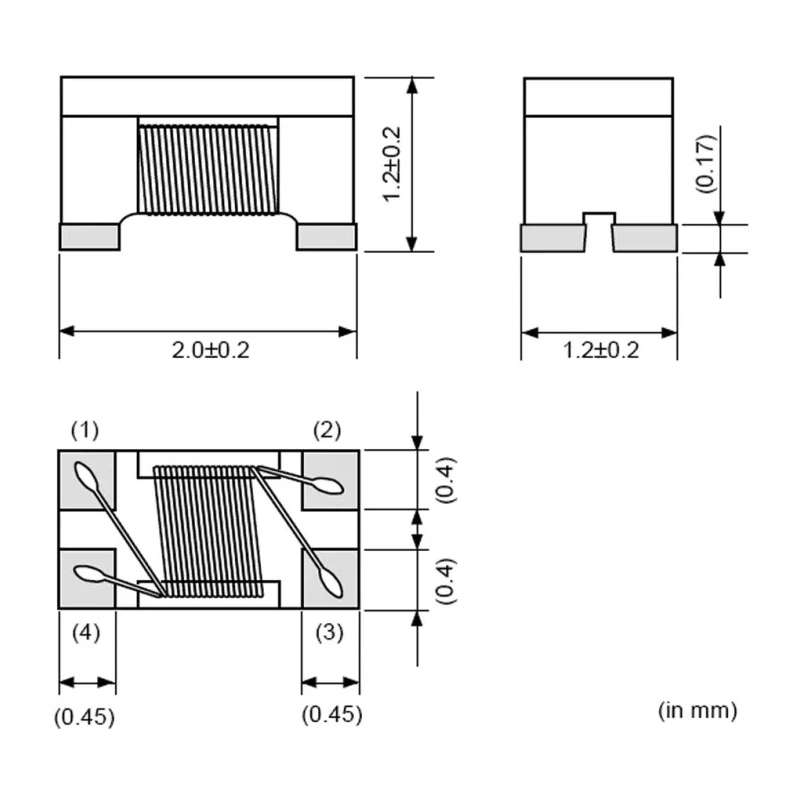

The dimensions of this model are 2mm in length, 1.2mm in height, and 1.2mm in depth.
It is packaged in embossed tape, which facilitates efficient automated PCB assembly.
The maximum DC resistance is 350mΩ, which helps in reducing power loss.
This inductor features a wirewound construction, ensuring stable inductance performance.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
It is suitable for USB, LVDS, and digital AV equipment signal lines.
The inductance tolerance for the DLW21S is ±25%.
It uses a tin plating termination style, which ensures reliable solder connections.
This component is manufactured in Japan.
This model has a pin count of 4.
