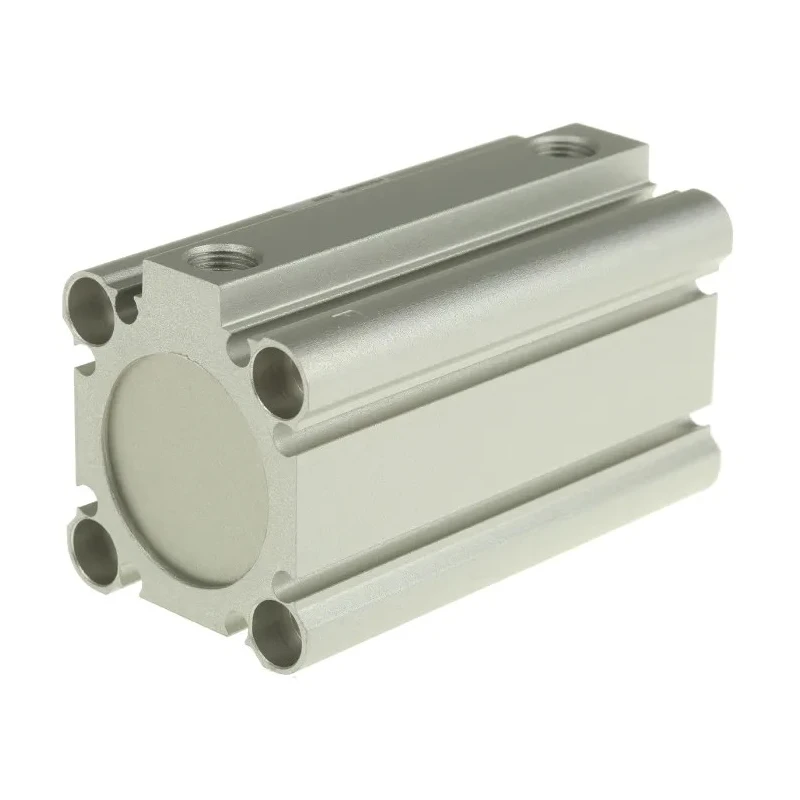

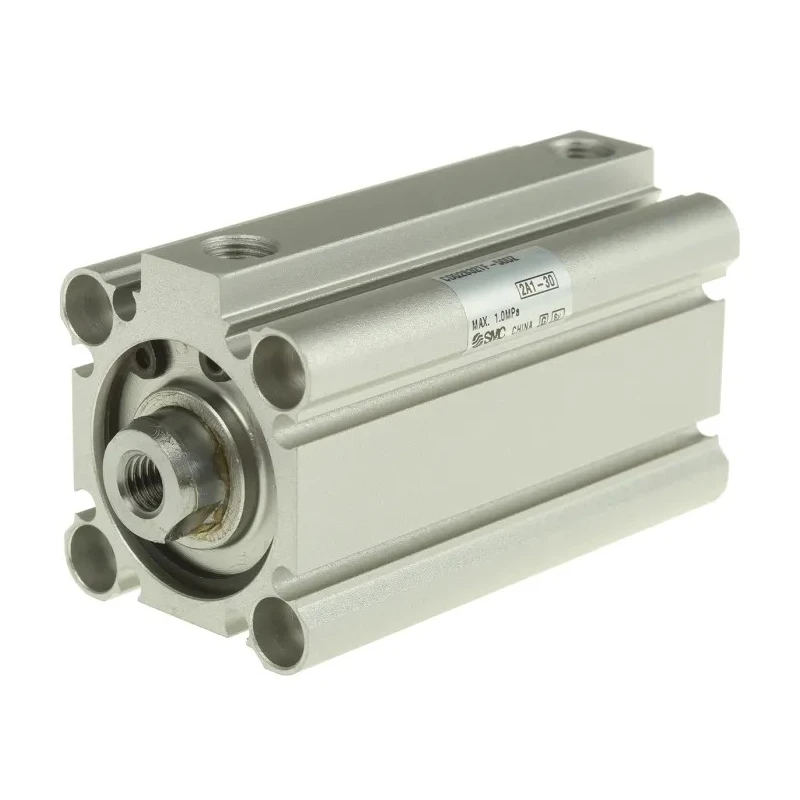

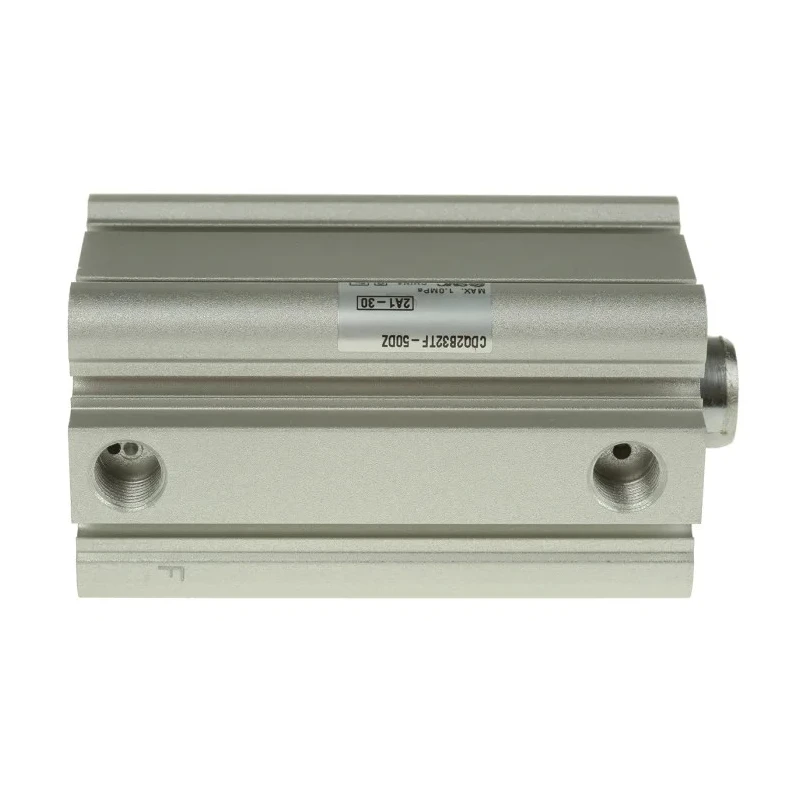

SMC Pneumatic Compact Cylinder 32mm Bore, 50mm Stroke, Double Acting, Aluminium Alloy Body, 1.5 Mpa Max CDQ2B32TF-50DZ
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1.5 Mpa |
| Height | 45mm |
| Length | 80mm |
| Model | CDQ2B32TF-50DZ |
| Gross Weight | 318g |
| Width | 49.5mm |
| Mount Type | Through Hole |
| Series | CDQ2 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 50mm |
| Bore Diameter | 32mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Cushioning Type | Rubber Bumper |
| Piston Rod Gender | Female |
| Piston Rod Thread Standard | Metric |
Key Features
- Double acting cylinder suitable for efficient pneumatic applications.
- Compact design with 32mm bore size and 50mm stroke length.
- Maximum operating pressure of 1.5 Mpa ensures robust performance.
- Aluminium alloy body provides lightweight and durable construction.
- Rubber bumper cushioning type for smooth operation and extended life.
- Operates within temperature range of -10°C to 70°C for versatility in environments.
- Through hole mount type allows flexible installation options.
- Single rod type with female piston rod thread in metric standard.
Product Description
SMC CDQ2B32TF-50DZ Pneumatic Compact Cylinder is a precision-designed pneumatic actuator with a 32mm bore and 50mm stroke in the CDQ2 series. It is double acting and constructed with a durable aluminium alloy body optimized for industrial and manufacturing automation tasks.
This compact cylinder operates at a maximum pressure of 1.5 Mpa and piston speeds up to 500 mm/s, making it suitable for various pneumatic fluid power control applications. It features a through-hole mount type with rubber bumper cushioning that reduces impact force and wear, enhancing reliability and longevity in demanding factory environments.
The cylinder’s operating temperature range of -10°C to 70°C ensures functional integrity in diverse temperature conditions. The single rod configuration comes with a female metric piston rod thread, facilitating easy assembly and integration. A built-in magnet assists in the installation of auto switches to enhance position sensing automation.
Applications include automation in manufacturing lines, robotics for precise movement control, packaging machinery, and material handling systems where compact size and efficient force output are critical.
Double acting cylinder with 32mm bore and 50mm stroke. Maximum operating pressure of 1.5 Mpa. Durable aluminium alloy construction for lightweight strength. Rubber bumper cushioning to reduce mechanical shock. Operating temperature range from -10°C to +70°C for broad usability.
Through hole mount design for flexible installation. Single rod with female metric thread. Built-in magnet for auto switch compatibility. Compact and space-saving design. High piston speed capability up to 500 mm/s.
This pneumatic compact cylinder is an essential component for fluid power systems in industrial, manufacturing, laboratory, and material handling applications. Choose SMC cylinders for reliable, long-lasting pneumatic automation solutions. Explore more in our hydraulic & pneumatic tools category at EnvMart.
Explore more products in our Pneumatic Cylinder category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic compact cylinder is 1.5 Mpa.
This model has a height of 45mm, a length of 80mm, and a width of 49.5mm.
The stroke length is 50mm and the bore diameter is 32mm.
It features rubber bumper cushioning to reduce mechanical shock during operation.
The operating temperature range is from -10°C to 70°C.
This unit has a through hole mount type, allowing for flexible installation options.
It has a single rod type with a female piston rod thread in metric standard.
The maximum piston speed is up to 500 mm/s.
It is suitable for automation in manufacturing lines, robotics, packaging machinery, and material handling systems.
The body is constructed from aluminium alloy, providing lightweight strength.
Yes, it includes a built-in magnet that assists in the installation of auto switches for enhanced position sensing.
This model belongs to the CDQ2 series.
