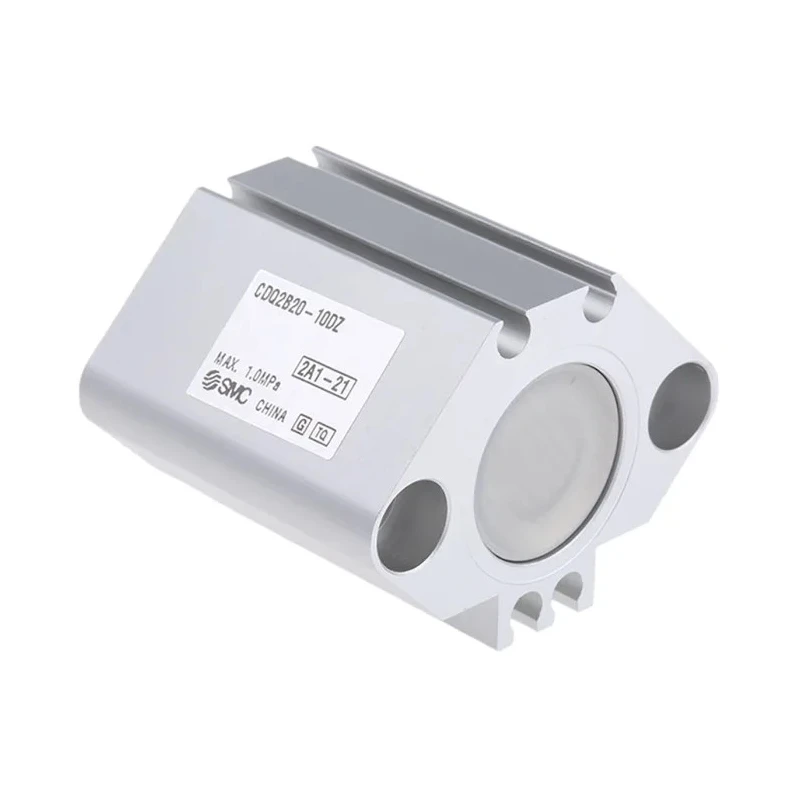

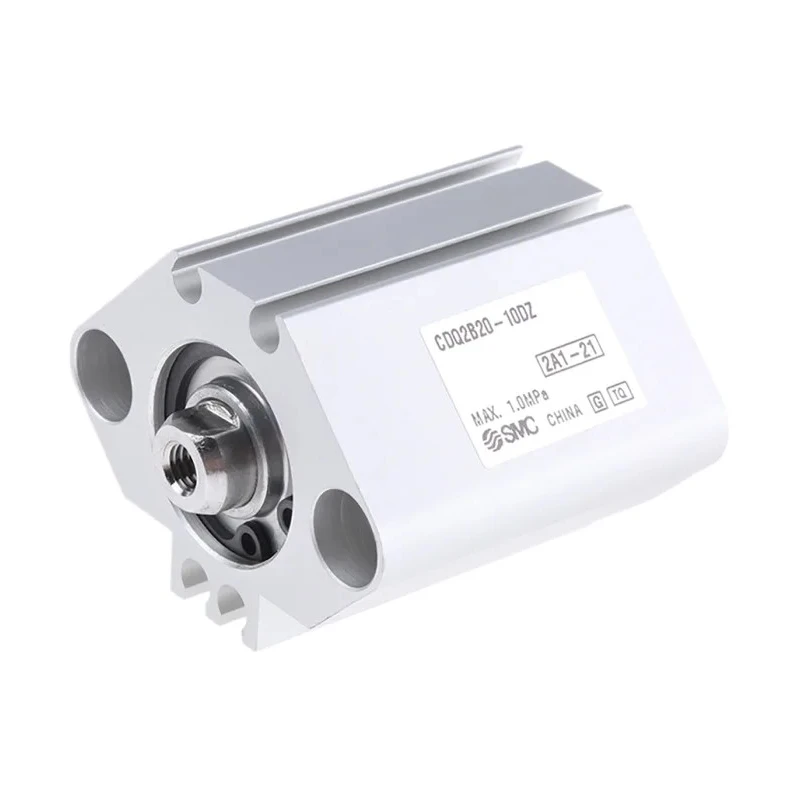

SMC Pneumatic Compact Cylinder 20mm Bore, 10mm Stroke, Double Acting, Aluminium Alloy Body CDQ2B20-10DZ

SMC CDQ2B20-10DZ Pneumatic Compact Cylinder offers a highly compact and reliable pneumatic actuator solution with a 20mm bore diameter and 10mm stroke length. Constructed from aluminium alloy, this cylinder is durable while maintaining a lightweight profile of 75 grams, facilitating ease of installation in tight spaces.

Designed with a double acting mechanism, the cylinder provides force in both directions, enabling efficient pneumatic power transfer in various automation and industrial machine applications. The through-hole mounting type allows for straightforward secure attachment in manufacturing, packaging, or material handling systems. Rubber bumper cushioning ensures shock absorption, reducing wear and operational noise.

Operating at a maximum pressure of 1.5 MPa and tolerating temperature ranges from -10°C to 70°C, this compact cylinder is engineered for consistent performance in demanding environments. The single rod type with female piston rod thread standard metric fits widely used pneumatic fittings and switches. The magnetic piston enhances usability with compatible solid state switches for position detection and control purposes.

This product is manufactured in China and conforms to general quality standards although it does not hold specific certifications. Its compact dimensions - length 34mm, height and width 36mm - make it suitable for applications requiring space-saving pneumatic actuation devices in sectors such as industrial automation, laboratory equipment, packaging machinery, and HVAC control systems.

The compact cylinder features an aluminium alloy body for durability and reduced weight. Operates with a maximum pressure of 1.5 MPa for versatile pneumatic power. Double acting action type providing push and pull force during operation.

Includes rubber bumper cushioning to protect against harsh impacts and extend cylinder life. Through hole mount type offering easy installation and secure fitting. Temperature operation range from -10°C to 70°C suitable for various environments.

Single rod type with female piston rod threading to fit standard pneumatic connections. Lightweight design weighing 75 grams simplifies machine integration. Compact length of 34mm and height/width dimensions of 36mm each.

Suitable for use with solid state switches and magnetic piston detection. Explore the wide range of Pneumatic Cylinders and actuators at EnvMart for industrial and manufacturing automation solutions.
