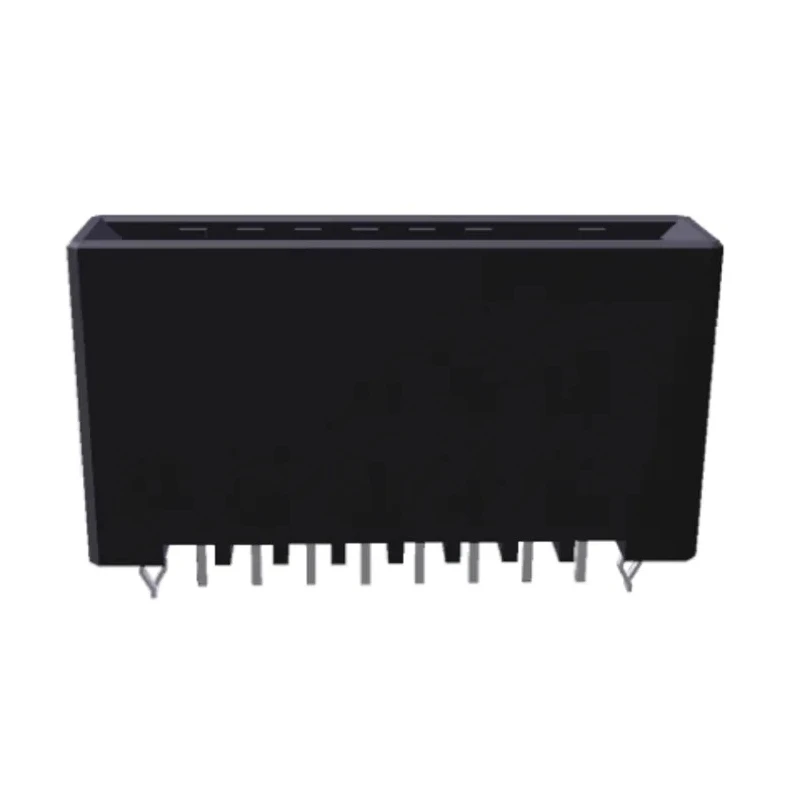

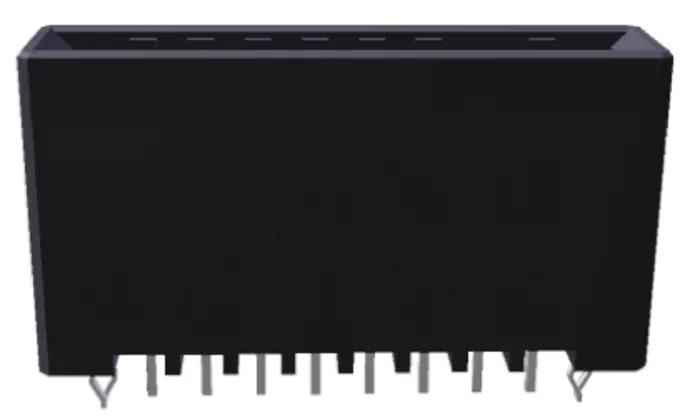

TE Connectivity D-3000 Series Straight Through Hole PCB Header, 8 Contacts, 3.81 mm Pitch, 1 Row, Shrouded 1-178317-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 15A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | D-3000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Provides a current rating of 15A to support high power applications.
- Constructed with glass filled polyester housing for durable insulating properties.
- Contacts are made of copper alloy with gold plating to ensure high conductivity and corrosion resistance.
- Designed for through hole mounting with solder termination for secure PCB attachment.
- Operates within a temperature range of -55°C to 105°C for wide environmental suitability.
- Supports a voltage rating of 250V suitable for various electronic circuits.
- The connector is male gender and shrouded for extra contact protection.
- Pitch and row pitch of 3.81 mm enable compact and precise PCB layout compatibility.
Product Description
TE Connectivity 1-178317-2 D-3000 Series Straight Through Hole PCB Header is engineered for reliable wire-to-board electrical connections with 8 contacts at a 3.81 mm pitch and a single row configuration. This shrouded male connector offers robust performance in demanding industrial and electronic assembly applications.
The housing is made from glass filled polyester providing excellent insulation and mechanical strength. The copper alloy contacts have gold plating to ensure low contact resistance and long-term corrosion resistance, crucial for high-quality electronic circuits.
Its through hole mounting type with solder termination guarantees a durable attachment to PCBs, maintaining electrical integrity under thermal and mechanical stress. This connector operates safely between -55°C and 105°C and supports currents up to 15A and voltage of 250V, making it suitable for a broad range of industrial and commercial electronics.
The precise 3.81 mm pitch and single row design optimize usage in compact PCB assemblies, commonly found in power connectors, electronic components, and automation equipment. The shrouded design enhances user safety and contact protection during mating and operation.
Provides a current rating of 15A to support high power applications. Constructed with glass filled polyester housing for durable insulating properties. Contacts are made of copper alloy with gold plating to ensure high conductivity and corrosion resistance.
Designed for through hole mounting with solder termination for secure PCB attachment. Operates within a temperature range of -55°C to 105°C for wide environmental suitability.
This highly reliable PCB header supports industrial, laboratory, electronic manufacturing, and power supply applications requiring guaranteed electrical connections. Its robust build and precise configuration make it a standard choice for various power and signal connector assemblies.
Explore more technical components in the Electronics & Electricals > Electronics Components > PCB Header category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current rating of 15A, making it suitable for high power applications.
The voltage rating is 250V, which is appropriate for various electronic circuits.
This connector is designed for through hole mounting with solder termination for secure PCB attachment.
The housing is made from glass filled polyester, while the contacts are constructed from copper alloy with gold plating for high conductivity and corrosion resistance.
It operates within a temperature range of -55°C to 105°C, allowing for wide environmental suitability.
This model features 8 contacts arranged in a single row configuration.
The pitch of the contacts is 3.81 mm, which enables compact and precise PCB layout compatibility.
This connector is shrouded, providing extra contact protection during mating and operation.
It uses a wire-to-board connector system, suitable for reliable electrical connections.
The orientation of this model is straight, facilitating easy installation on PCBs.
The country of origin for this PCB header is India.
It is suitable for industrial, laboratory, electronic manufacturing, and power supply applications requiring reliable electrical connections.
