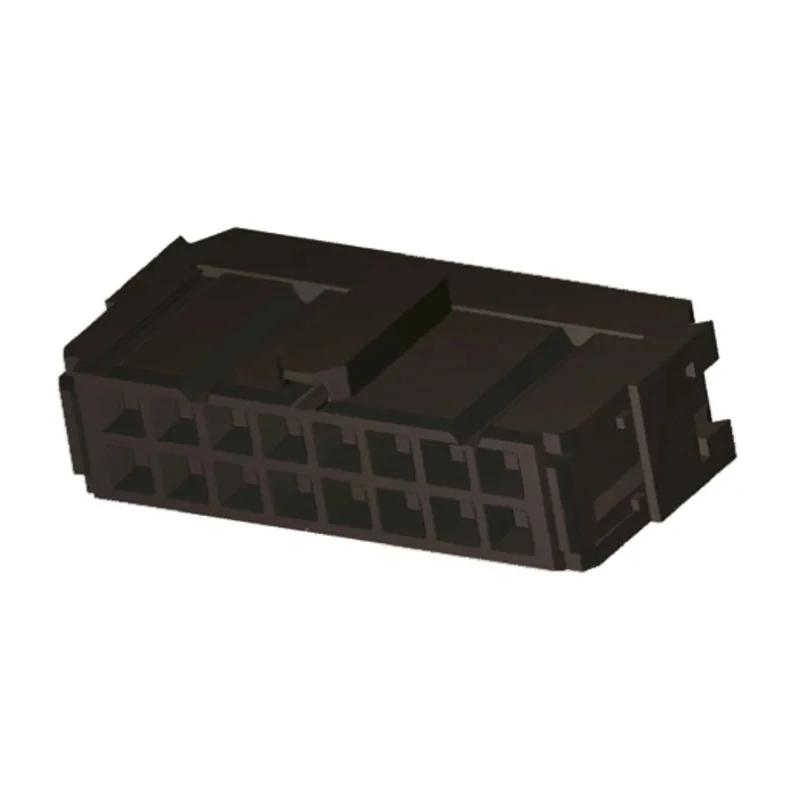

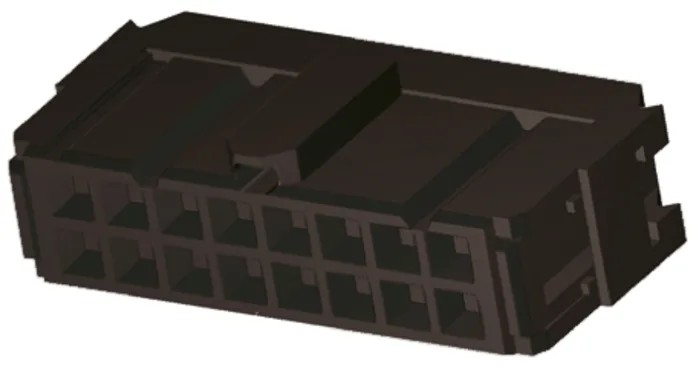

TE Connectivity 16-Way IDC Connector Female Through Hole 2 Row 250V AC 1A Gold Plated Contacts 1658622-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | 1658622 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Provides a reliable wire-to-board connection system with shrouded housing for safety.
- Features 16 phosphor bronze contacts plated with gold over nickel for enhanced conductivity and corrosion resistance.
- The connector uses through hole mount type with a 2.54mm pitch between pins.
- Designed for solder termination with straight orientation to suit various PCB layouts.
- Operates reliably in temperature ranges from -65°C to 105°C.
- The thermoplastic housing is rated UL 94V-0 for flame resistance and durability.
- Compatible with AMP-LATCH Novo series ribbon cables and supports 28-26 AWG wire sizes.
- Complies with DIN 41651, DIN EN 60352-3/4 standards, assuring industrial-grade quality and performance.
Product Description
TE Connectivity 1658622-3 IDC Connector is a 16-way female connector designed for through-hole mounting with two rows at a 2.54mm pitch, supporting wire-to-board applications in electronic components and power connectors sectors. It is rated for 250V AC voltage and 1A current, making it suitable for low-voltage electronic and communication equipment.
The connector features tuning fork style contacts made of phosphor bronze with gold plating over nickel to ensure excellent electrical conductivity and resistance against corrosion. The shrouded thermoplastic housing complies with UL 94V-0 flame retardant standard, providing safety and mechanical durability in demanding industrial and laboratory environments.
Designed for use with flat ribbon cables, this connector is compatible with the AMP-LATCH Novo series system offering military and center polarization. The termination type is solder, with straight orientation facilitating easy PCB integration. Operating temperature range from -65°C to 105°C allows for applications in varied climatic conditions.
TE Connectivity’s 1658622-3 connector is ideal for industrial, telecommunications, automotive, and manufacturing applications requiring dependable wire-to-board electrical connections with a compact and robust design.
Reliable wire-to-board IDC Connector system with shrouded housing for safety and secure connections. Durable gold over nickel contacts for corrosion resistance and excellent conductivity. Through hole mount type with 2-row, 16-contact configuration and 2.54mm pitch.
Thermoplastic housing rated UL 94V-0 for flame resistance, suitable for industrial environments. Wide operating temperature from -65°C to 105°C ensures performance in harsh conditions. Compatible with AMP-LATCH Novo ribbons and supports 28-26 AWG wire sizes for versatility.
Conforms to DIN 41651 and DIN EN 60352-3/4 standards for quality assurance. Ideal for applications in industrial electronics, telecommunications, and manufacturing systems. Explore more connectors and electronic components at EnvMart for reliable and certified products tailored for your industry needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for 250V AC voltage and 1A current, suitable for low-voltage electronic and communication equipment.
It uses a through hole mounting type, designed for solder termination with straight orientation.
The pitch between the pins is 2.54mm, which is standard for many IDC connectors.
The contacts are made of phosphor bronze, plated with gold over nickel, while the housing is made of thermoplastic material rated UL 94V-0 for flame resistance.
It operates reliably within a temperature range from -65°C to 105°C, making it suitable for various climatic conditions.
This connector features 16 contacts arranged in 2 rows.
Yes, it is compatible with AMP-LATCH Novo series ribbon cables and supports wire sizes of 28-26 AWG.
It complies with DIN 41651 and DIN EN 60352-3/4 standards, ensuring industrial-grade quality and performance.
The connector features female contacts, designed for wire-to-board applications.
This model uses solder termination, facilitating secure connections to printed circuit boards (PCBs).
The shrouded design enhances safety by preventing accidental contact with the contacts, ensuring secure connections.
The connector is manufactured in India, adhering to specified quality standards.
