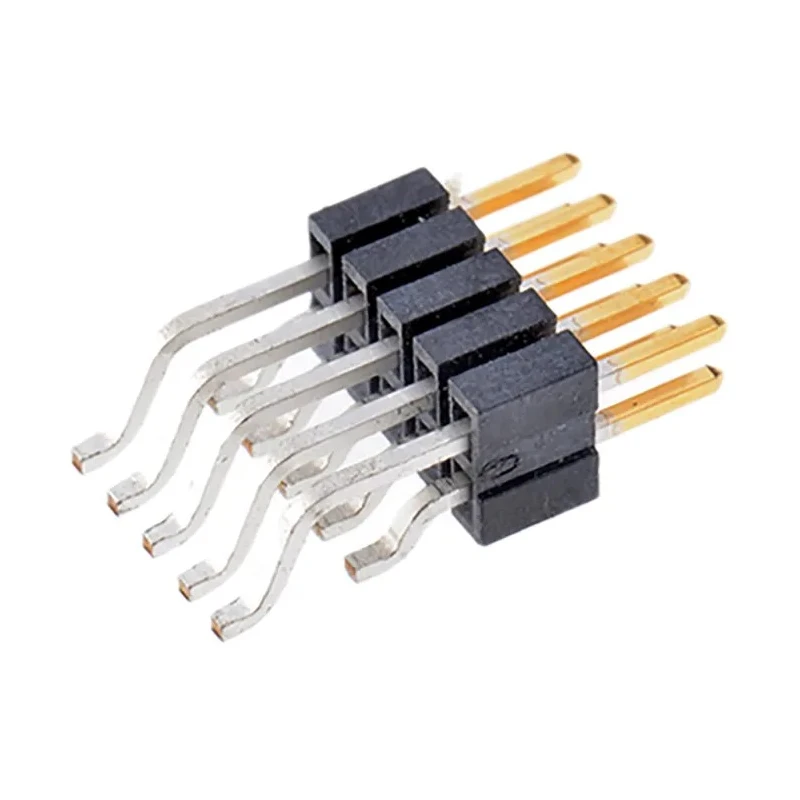

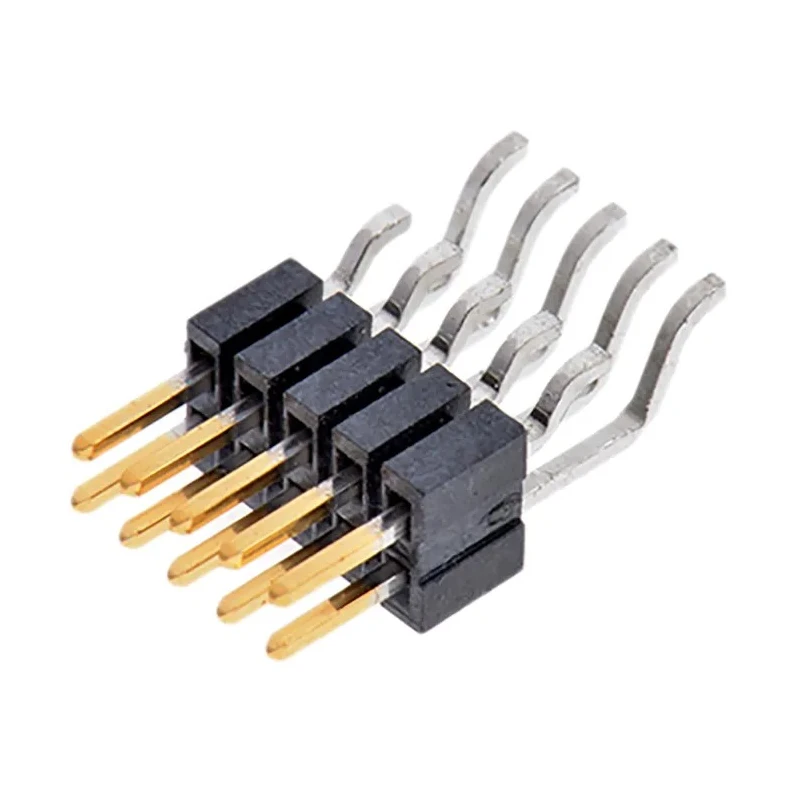

Samtec FTSH Series Right Angle Surface Pin Header 10 Contacts 1.27 mm Pitch 2 Row Unshrouded FTSH-105-01-F-DH

Samtec FTSH-105-01-F-DH is a right angle surface mount micro pin header designed for PCB connectivity applications. It features 10 gold-plated male contacts arranged in 2 rows with a 1.27 mm pitch, making it suitable for high-density electronic assemblies. The housing is made from robust polymer material that provides insulation and mechanical protection.

This unshrouded pin header supports up to 1.75 A current at an operating temperature range of -55 °C to 125 °C, ensuring reliable performance in diverse environments. The solder termination type enables secure placement on PCB surfaces, while the right angle orientation facilitates optimal board layout.

Commonly used for board-to-board and wire-to-board connections, the FTSH series headers mate easily with compatible socket strips and IDC cable assemblies. The mating pin length of 3.05 mm is engineered for stable electrical contact and durability.

This connector features a 1.27 mm pitch for precise and compact applications. Designed with 2 rows and unshrouded male contacts to ensure easy mating. Constructed with a polymer housing and phosphor bronze contacts plated in gold for durability and conductivity.

Supports a current rating of 1.75 A at 80 °C for effective signal transfer. Operates reliably within a temperature range from -55 °C up to 125 °C. Surface mount type with right angle orientation for PCB installation flexibility.

Mating pin length is 3.05 mm, suitable for multiple socket or cable assembly types. Compatible with FFSD, CLP, and FLE series for versatile connection solutions. Ideal for electronic, industrial, and power connector use cases requiring compact and reliable pin headers.

This pin header is widely used in electronics manufacturing, industrial control systems, and communication equipment. Its compact design supports dense PCB layouts and facilitates efficient electrical connections. DesignSpark and other software tools support its mechanical footprint and schematic symbols to ease integration.
