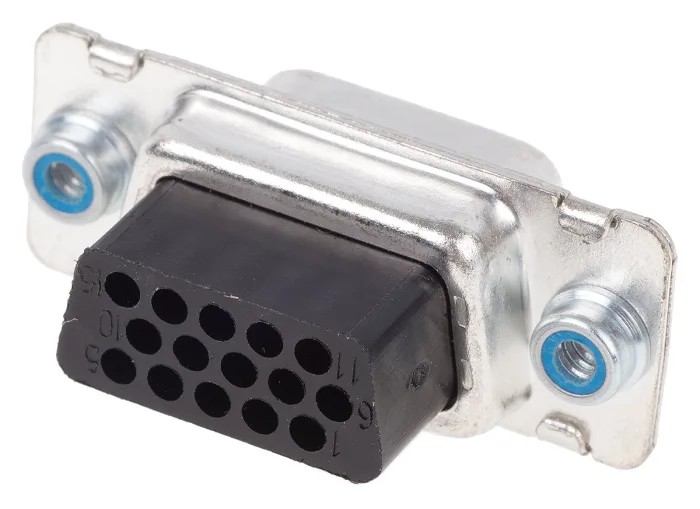

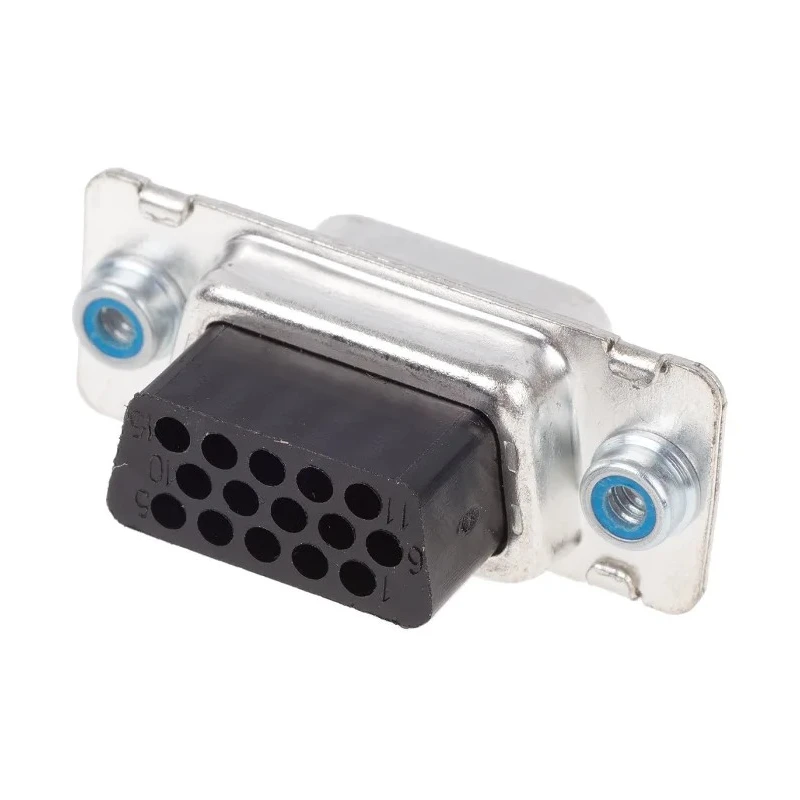

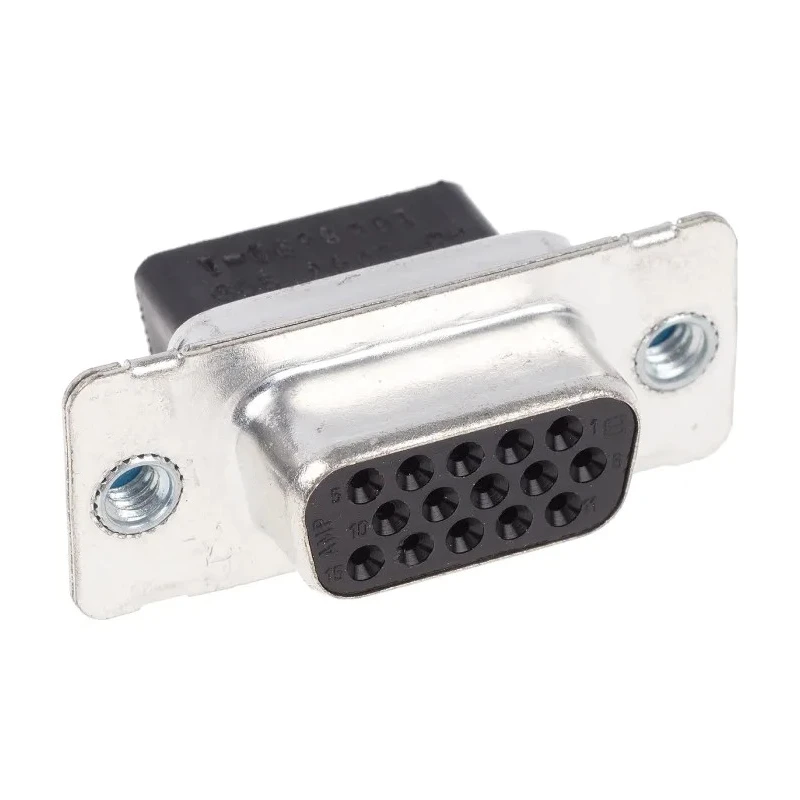

TE Connectivity AMPLIMITE HDP-22 15 Way Straight Cable D-Sub Connector Female 250V 105°C 1658690-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Cable |
| Housing Material | Steel |
| Series | AMPLIMITE HDP-22 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DS-1 |
Key Features
- This connector features 15 female crimp contacts with a straight orientation.
- It is rated for 250V and can operate between -55°C and 105°C.
- The housing is made of tin-plated steel for durability and corrosion resistance.
- The D-Sub shell size is DS-1, conforming to MIL-C-C24303 standards.
- This model is RoHS compliant, ensuring environmental safety.
- The termination type is crimp, compatible with cable mounting.
- It is suitable for applications requiring space-saving, high-density connectors.
- This product is ideal for military, industrial, commercial, and computer interfacing use.
Product Description
TE Connectivity 1658690-1 AMPLIMITE HDP-22 15 Way Straight Cable D-Sub Connector Female is a high-density crimp connector designed for demanding environments in industrial and military sectors.
This D-Sub connector offers 15 female contacts arranged in a straight cable mount configuration. The stainless steel housing is tin-plated and paired with a black 94V0 thermoplastic insert to provide durability and electrical safety. Rated for 250 volts, the connector performs reliably across a temperature range of -55°C to 105°C.
The AMPLIMITE HDP-22 series provides approximately 65% higher contact density compared to standard HD-20 connectors, allowing more connections in less space. This particular model complies fully with MIL-C-C24303 dimensional standards.
Termination is achieved via crimp contacts which ensure secure and consistent electrical connections. The compact DS-1 shell size housing supports robust mating and easy installation in dense cable assemblies.
15 female crimp contacts in straight cable mounting style. Tinned steel shell with 94V0 black thermoplastic insert. Voltage rating of 250V for industrial and military applications. Temperature range from -55°C to 105°C for versatility.
MIL-C-C24303 compliance ensures interoperability. RoHS compliant to meet environmental directives. Compact DS-1 shell size supports high density connections. Suitable for computer interfacing, industrial, military, and commercial use.
These connectors enable engineers to optimize space without sacrificing reliability. Their high density and robust construction make them perfect for rigorous environments including industrial machinery, aerospace, and defense electronics.
Browse the Electronics & Electricals category for more power and D-Sub Connectors from TE Connectivity and other trusted brands on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for 250V, making it suitable for various industrial and military applications.
It can operate within a temperature range of -55°C to 105°C, allowing for versatility in different environments.
This connector features 15 female crimp contacts, arranged in a straight cable mount configuration.
The housing is made of tin-plated steel, which provides durability and corrosion resistance.
Yes, it complies with MIL-C-C24303 dimensional standards and is also RoHS compliant for environmental safety.
It uses crimp termination, which ensures secure and consistent electrical connections.
The connector has a DS-1 shell size, which supports high-density connections.
It is suitable for military, industrial, commercial, and computer interfacing applications.
The connector features a straight orientation, which is typical for cable mounting.
The country of origin for this connector is India.
The AMPLIMITE HDP-22 series provides approximately 65% higher contact density compared to standard HD-20 connectors, allowing for more connections in less space.
This model has a female connector gender, making it compatible with male connectors in D-Sub applications.
