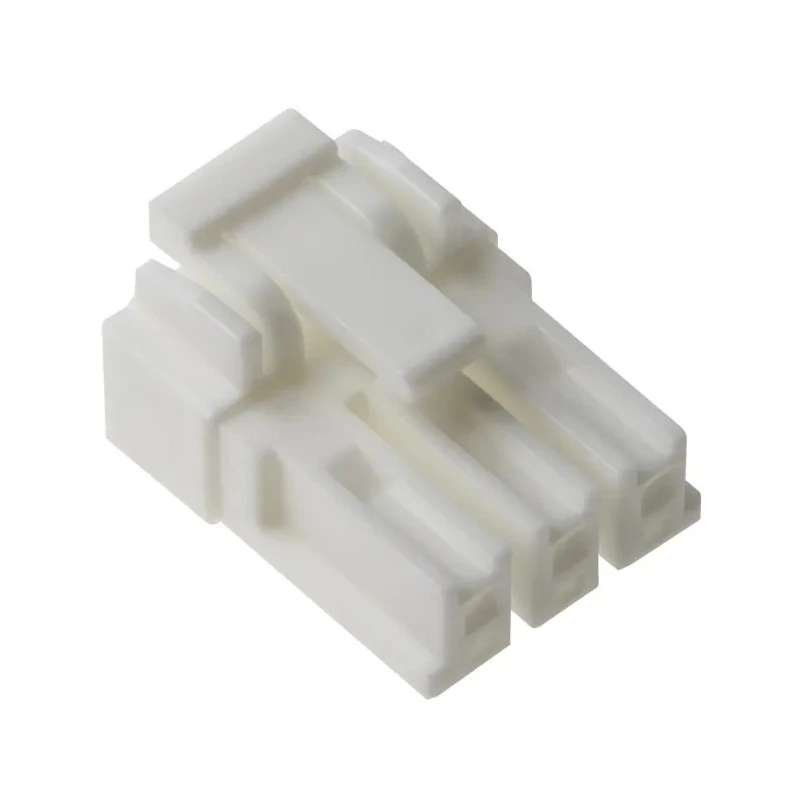

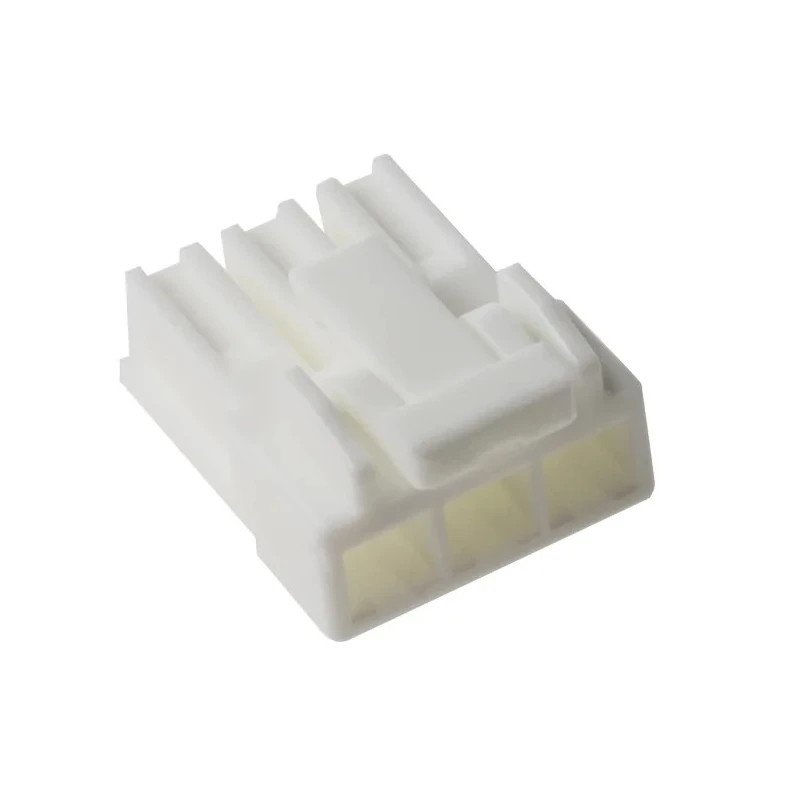

Hirose EnerBee DF33C Female Connector Housing 3 Way, 1 Row, 3.3 mm Pitch, Straight
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 11.1mm |
| Model | DF33C |
| Width | 15.1mm |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | EnerBee DF33C |
| Number of Rows | 1 |
| Pitch | 3.3mm |
| For Use With | Internal Power Source |
| Standards/Approvals | Glow Wire Compliant (IEC 60695-2-11) |
| Number of Contacts | 3 |
| Connector Gender | Female |
Key Features
- Compact, space-saving design suitable for internal power source applications.
- Features a secure positive locking mechanism with tactile click to prevent accidental unmating.
- Three individually boxed contacts in a single row help prevent short circuits.
- Stable connection mechanism prevents fretting corrosion in high vibration environments.
- Made with high-quality Polybutylene Terephthalate providing durability and robustness.
- Supports high power capability up to 5A with 20 AWG wire.
- Glow Wire Compliant in accordance with IEC 60695-2-11.
- Compatible with contact retainers for assured contact insertion.
Product Description
Hirose DF33C-3S-3.3C Female Connector Housing is part of the EnerBee DF33C series designed for high-performance, compact wiring solutions in electronic and electrical assemblies. Combining a small footprint with robust mechanical and electrical properties, this connector housing is particularly suited for internal power supplies, LED lighting, office equipment, medical devices, robotics, home appliances, industrial control systems, smart meters, and a wide range of IT and industrial applications.
The connector features a 3.3 mm pitch and accommodates three contacts arranged in a single row, providing reliable wire-to-board interconnection for demanding environments. The connector housing utilizes Polybutylene Terephthalate, allowing resistance to mechanical shock and environmental stress, and supports a cable mount orientation for flexible assembly.
Hirose’s EnerBee series is renowned for its compact size and high power capability, with up to 5A current supported when used with 20 AWG wire. The DF33C-3S-3.3C incorporates a positive locking mechanism which provides a clear tactile click upon mating, guaranteeing engagement and reducing accidental disconnection risks, even under external drops or shocks. Each contact is boxed individually within the housing, reducing the potential for short circuits and enhancing electrical isolation.
For demanding industrial and commercial environments, the two-point spring contact structure delivers a stable, vibration-resistant electrical connection, preventing movement or corrosion over time. The housing is Glow Wire Compliant, certified according to IEC 60695-2-11, providing additional safety and compliance for electronics used in high-heat or fire-risk scenarios.
Compact, space-saving connector housing for PCB applications. Supports up to 5A current with 20 AWG wire. Secure positive lock with tactile click for reliable assembly. Individually boxed contacts prevent short circuits.
Stable connection resists vibration and corrosion. Polybutylene Terephthalate housing material for durability. Compliant with Glow Wire IEC 60695-2-11 standard. One row, three contact configuration with straight orientation.
Ideal for industrial controllers, robotics, smart meters, office equipment, and home appliances where reliable, compact connectors are essential. The DF33C-3S-3.3C is also suited for embedded applications requiring durable, secure connections.
Discover more Hirose DF33C series connector solutions on EnvMart for advanced electronic assembly and PCB connectivity needs.
Explore more products in our PCB Connector Housing category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a high power capability of up to 5A when used with 20 AWG wire.
The pitch size of this connector is 3.3 mm.
It accommodates three contacts arranged in a single row.
The housing is made from Polybutylene Terephthalate, providing durability and robustness.
Yes, it is Glow Wire Compliant in accordance with IEC 60695-2-11.
It is particularly suited for internal power supplies, LED lighting, office equipment, medical devices, and industrial control systems.
The connector has a straight orientation.
The housing has a length of 11.1 mm and a width of 15.1 mm.
It supports a cable mount orientation for flexible assembly.
Yes, it features a secure positive locking mechanism with a tactile click to prevent accidental unmating.
The country of origin is Japan.
Each contact is individually boxed within the housing, which helps prevent short circuits and enhances electrical isolation.
