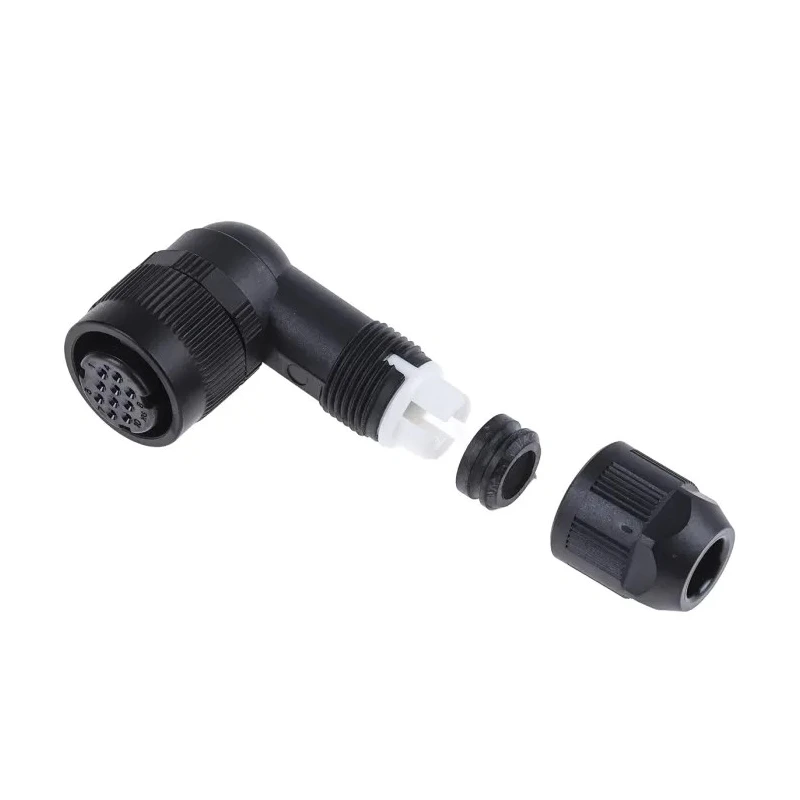

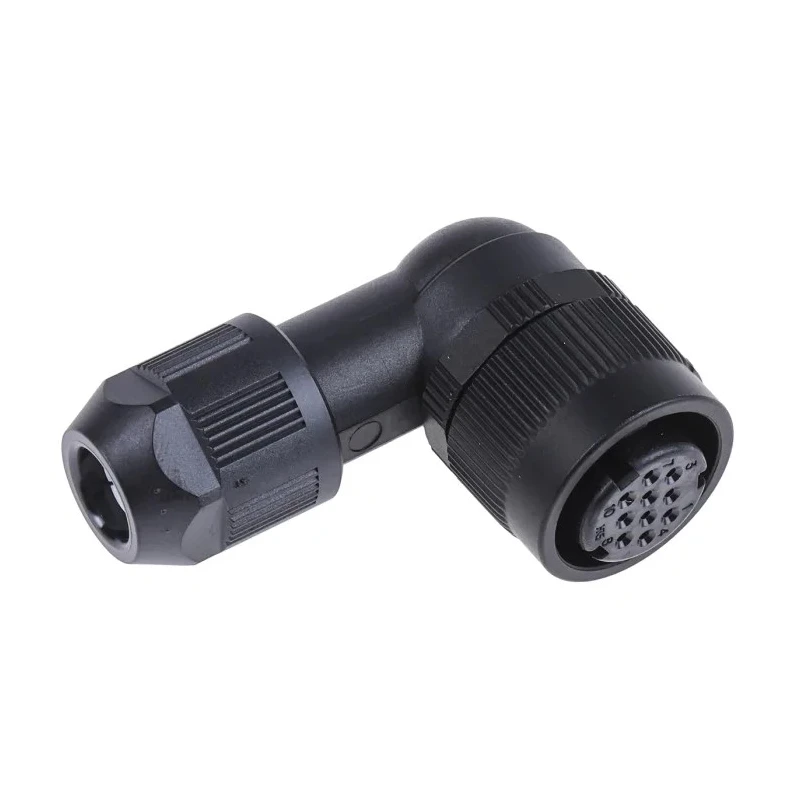

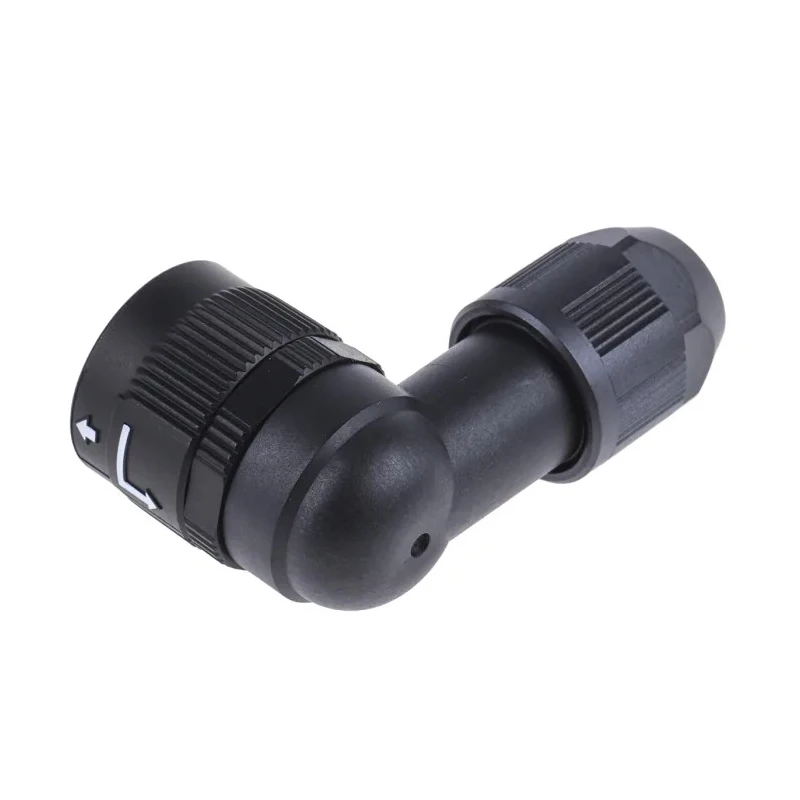

Hirose Miniature Circular Connector, 10 Contacts, Cable Mount Plug, Female, Solder Termination, IP67/IP68 Rated HR34B

Free Delivery in India | Lowest Global Shipping Charges

Hirose Miniature Circular Connector, 10 Contacts, Cable Mount Plug, Female, Solder Termination, IP67/IP68 Rated HR34B

Name: Hirose Miniature Circular Connector, 10 Contacts, Cable Mount Plug, Female, Solder Termination, IP67/IP68 Rated HR34B
Brand: Hirose
SKU: 128106
Price: 20.22 USD
Availability: InStock



Category Industrial Circular Connectors Brand Hirose Condition New

Specifications

Country of Origin	Japan
Voltage	200, 250V
Brand	Hirose
Orientation	Right Angle
Current	3A
Model	HR34B
IP Rating	IP67, IP68
Mount Type	Cable
Housing Material	Aluminium
Contact Material	Bronze
Series	HR34B
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-25°C
Pole Format	10
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Female
Shell Size	12
Mating Type	Bayonet
Connector Size	Miniature
Plug/Socket	Plug

Key Features

Constructed with aluminium housing for durability and corrosion resistance.
Designed with a right angle orientation and bayonet push-on locking for secure mating.
Rated for IP67 and IP68 protection ensuring waterproof and oil-proof performance.
Supports current rating of 3A and voltage rating of 200-250V.
Contact elements made of bronze with gold plating for high conductivity and corrosion resistance.
Operates reliably between minimum -25°C and maximum 125°C temperatures.
Compact miniature size with shell size 12 suitable for space-constrained installations.
Compliant with RoHS standards ensuring environmental safety.

Product Description

Hirose HR34B-12WLPD-10S is a miniature circular connector plug designed for industrial applications demanding robust and reliable connectivity. This 10-contact circular connector features a solder termination type and a cable mount configuration with a right angle orientation, facilitating efficient connection in compact or constrained spaces.

Its aluminium housing ensures resilience against mechanical stresses and corrosion, making it suitable for demanding environments. Equipped with a push-on bayonet lock mechanism, it offers secure mating with excellent tactile feedback, reducing the risk of accidental disconnections due to vibrations.

The connector is rated IP67 and IP68, providing excellent waterproof and oil-proof capabilities, ideal for harsh settings such as servo motor assemblies, industrial machinery, lighting systems, portable medical devices, and robotics. Contact pins are made from bronze with gold plating, ensuring excellent electrical contact reliability and corrosion resistance over extended use.

Operating temperature range from -25°C up to 125°C supports a wide variety of industrial and outdoor use cases. The product is RoHS compliant, reflecting adherence to environmental and safety standards.

Constructed with aluminium housing for durability and corrosion resistance. Designed with a right angle orientation and bayonet push-on locking for secure mating. Rated for IP67 and IP68 protection ensuring waterproof and oil-proof performance.

Supports current rating of 3A and voltage rating of 200-250V. Contact elements made of bronze with gold plating for high conductivity and corrosion resistance. Operates reliably between minimum -25°C and maximum 125°C temperatures.

Compact miniature size with shell size 12 suitable for space-constrained installations. Compliant with RoHS standards ensuring environmental safety.

This Hirose HR34B series connector is widely used in industrial electrical connections requiring compact, reliable, and durable miniature circular connectors. Its rugged construction and sealing ratings make it ideal for applications in manufacturing automation, robotics, medical equipment, and lighting.

Explore more Industrial Circular Connectors and related products for enhanced machine and device connectivity on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model operates reliably within a temperature range of -25°C to 125°C, making it suitable for various industrial applications.

The HR34B connector features 10 contacts, designed for robust connectivity in industrial applications.

It uses a solder termination type, allowing for secure and reliable connections in various applications.

The connector supports a current rating of 3A and a voltage rating of 200-250V, suitable for a range of electrical applications.

The housing is made of aluminium for durability, while the contact elements are bronze with gold plating for high conductivity and corrosion resistance.

This connector is designed with a right angle orientation, facilitating efficient connections in space-constrained environments.

It is equipped with a bayonet push-on locking mechanism, providing secure mating and reducing the risk of accidental disconnections.

Yes, the HR34B connector is RoHS compliant, reflecting adherence to environmental and safety standards.

This model has a shell size of 12, making it suitable for compact installations.

It is widely used in applications such as servo motor assemblies, industrial machinery, lighting systems, portable medical devices, and robotics.

The Hirose HR34B connector is manufactured in Japan, ensuring high standards of quality and reliability.
