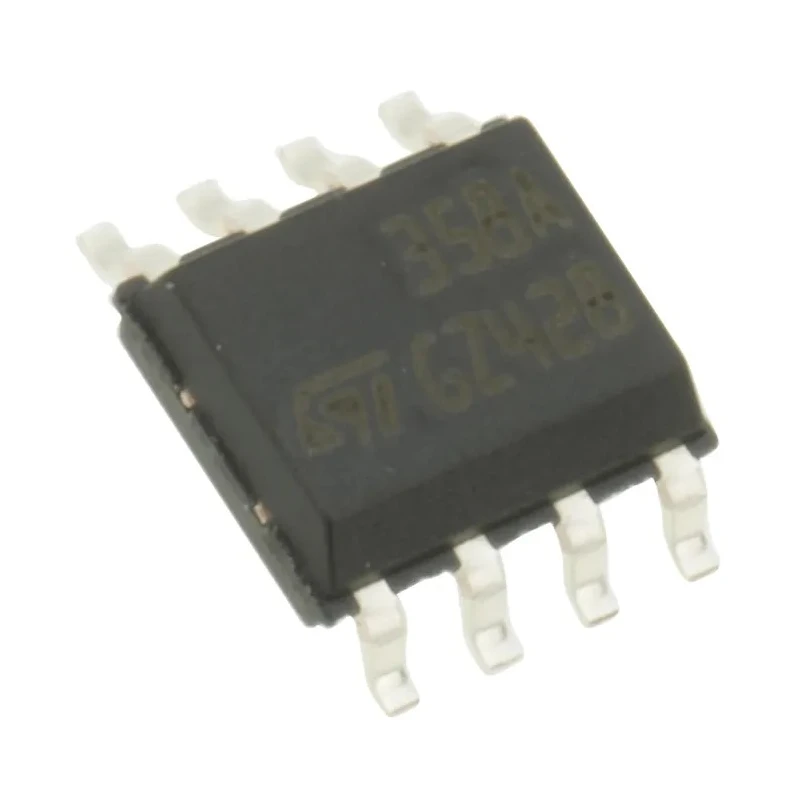

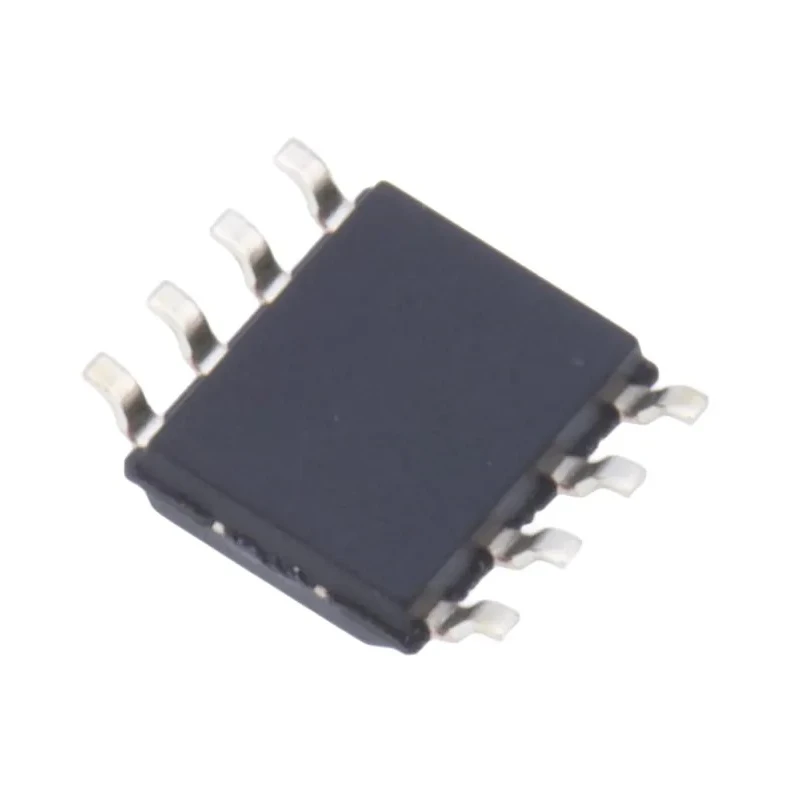

STMicroelectronics Operational Amplifier 1.1 MHz Gain Bandwidth, 2 Channel, 8-Pin SOIC LM358ADT

The STMicroelectronics LM358ADT is a low power, dual operational amplifier designed for a range of electronic amplification applications including instrumentation, signal conditioning, and active filtering. Packaged in an 8-pin SOIC, it is optimized for surface mounting on printed circuit boards and supports a wide power supply voltage range from 5V up to 30V.

This amplifier features a gain bandwidth product of 1.1 MHz and a slew rate of 0.6 V/μs, making it suitable for moderate frequency analog signals in industrial, commercial, and automotive electronic circuits. The device operates reliably from 0°C to 70°C ambient temperature and complies with RoHS environmental standards. It also holds the automotive AEC-Q100 standard, indicating its suitability for use in automotive electronic systems requiring high reliability.

Key electrical characteristics include a low input bias current of 50 nA, an input offset voltage of 3 mV, and a maximum output current of 60 mA, enabling accurate and efficient signal amplification. Its compact dimensions - 4.9 mm length, 3.9 mm width, and 1.25 mm height - allow for space-saving designs.

Dual independent channels provide flexible amplification options. Surface mount SOIC package facilitates easy assembly on modern PCBs. Wide supply voltage range supports various power system designs. Low input offset and bias currents enable precision applications.

RoHS compliance ensures environmental safety and regulatory conformity. Meets automotive quality for robust performance in vehicles. Typical applications include industrial controls, instrumentation, audio processing, and signal conditioning.

This operational amplifier is ideal for engineers and designers seeking a reliable, compact, and efficient amplifier IC for diverse electronic device applications. Explore more Operational Amplifiers at EnvMart for all your semiconductor component needs.
