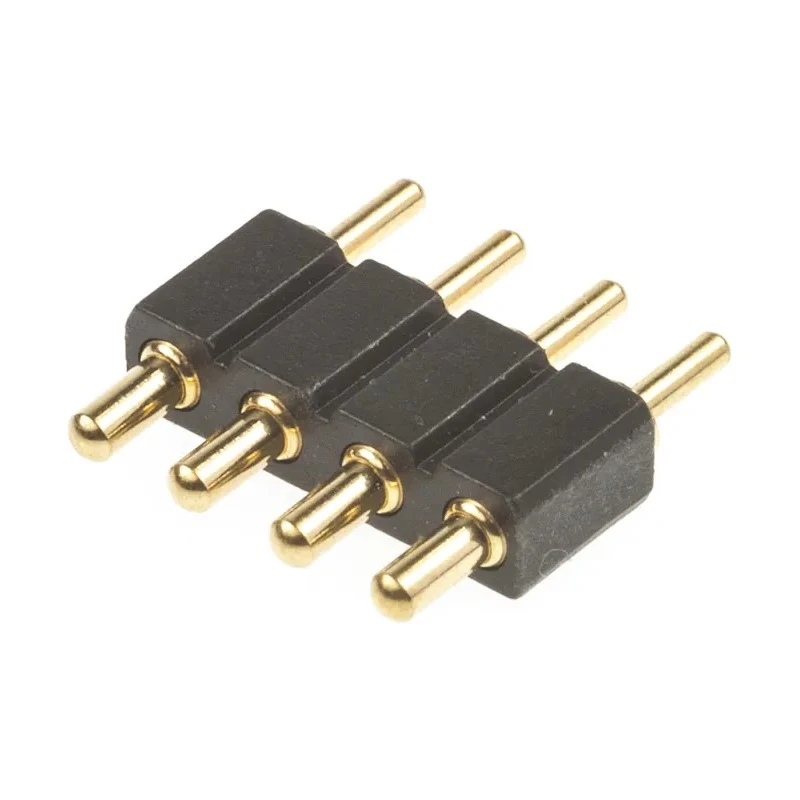

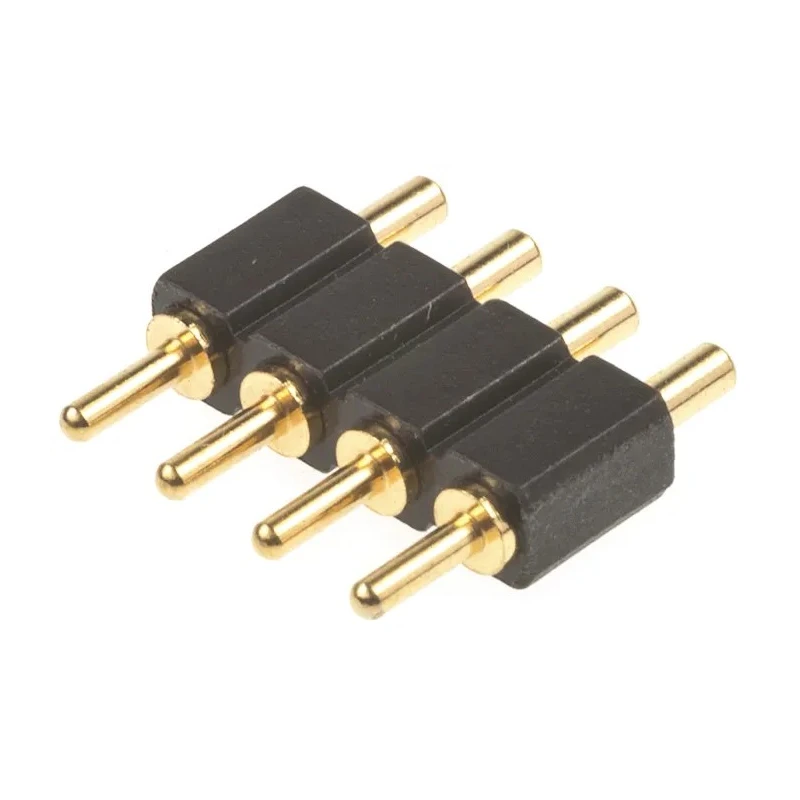

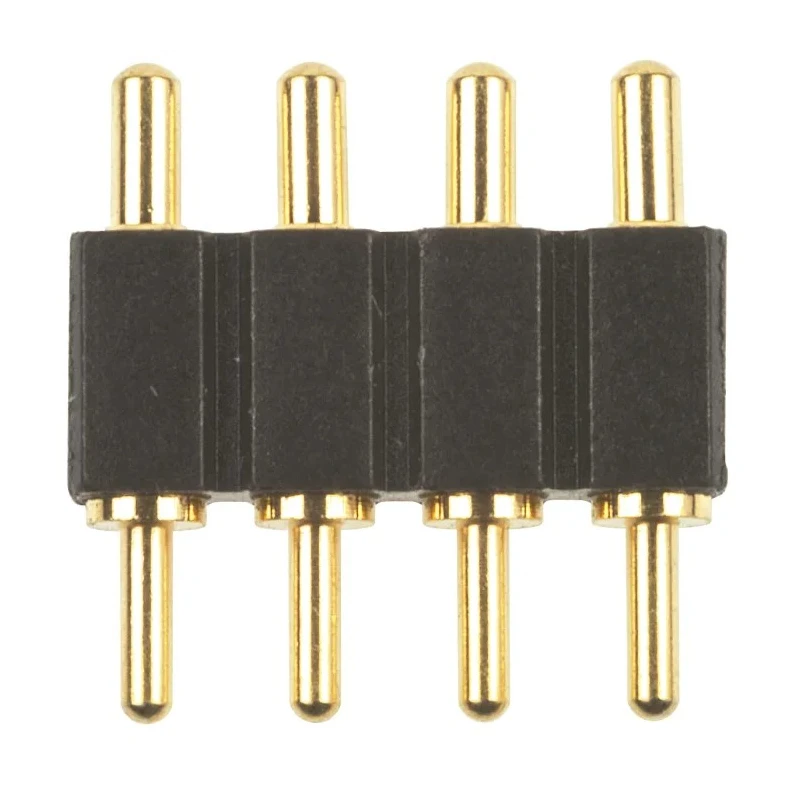

Preci-Dip 811 Series Straight Through Hole Spring Loaded Connector, 4 Contacts, 2.54 mm Pitch, 1 Row 811-S1-004-10-016101

Preci-Dip 811-S1-004-10-016101 is a high-performance spring loaded connector featuring 4 male contacts with 2.54 mm pitch in a single-row, shrouded through hole design.

Constructed with a fibreglass reinforced polyethylene terephthalate housing, this connector offers excellent mechanical strength and thermal stability for industrial electronics applications.

The brass contacts plated with gold ensure low electrical resistance and corrosion resistance, critical for signal integrity and robust connections.

Designed for use in demanding environments, it supports a voltage rating of 150 V and a current rating of 3.5 A. It operates reliably across a temperature range from -55°C to 125°C, ideal for industrial, laboratory, and manufacturing equipment.

The spring-loaded contact mechanism provides a multipoint electrical connection between the mobile piston and the clip maintaining stable resistance values even with movement or vibration. This ensures maximum reliability in electronic assemblies.

The connector is shrouded for protection and has solder termination for secure through hole mounting on printed circuit boards. Its compact design with a 2.54 mm pitch and 1 row layout makes it ideal for space-constrained PCBs requiring robust electrical connections.

Manufactured in Switzerland with high-quality standards, it is suitable for various electronic components, power connectors, and industrial automation applications. Spring-loaded contacts provide low and stable electrical resistance during vibration.

Connector features a pitch of 2.54 mm and 4 male contacts arranged in a single row. Housing is made of fibreglass reinforced polyethylene terephthalate for durability. Contact material is brass with gold plating for corrosion resistance.

Operating temperature range from -55°C to 125°C suitable for harsh environments. Rated for 150 V and 3.5 A current to support power and signal connections. Shrouded design ensures secure mating and protection against damage.

Termination type is solder for reliable through hole PCB mounting. Manufactured in Switzerland ensuring high-quality European standards. Explore more components in the Electronics Components category at EnvMart for reliable industrial-grade connectors.
