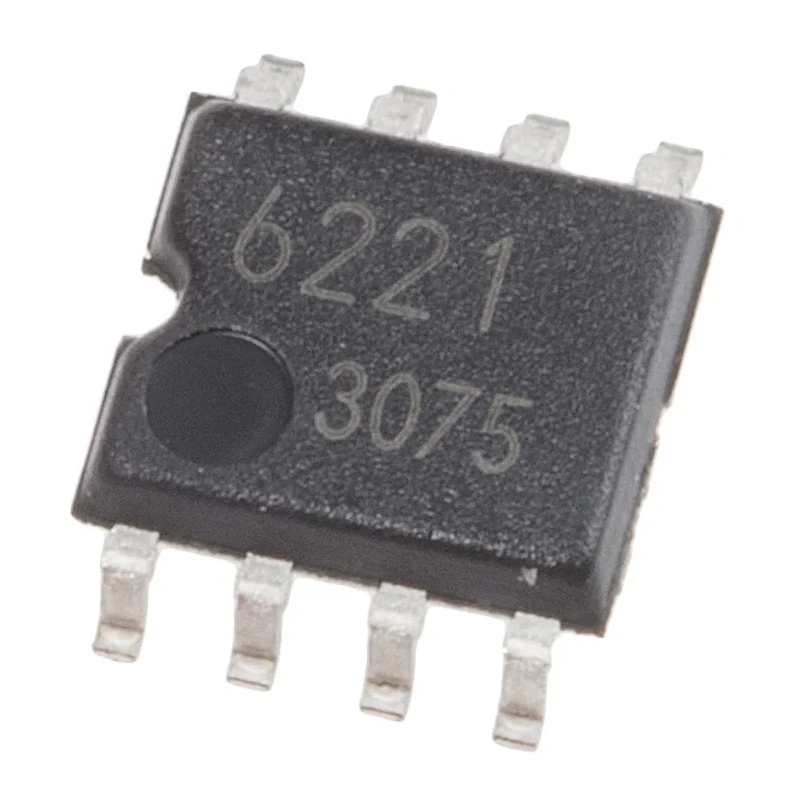

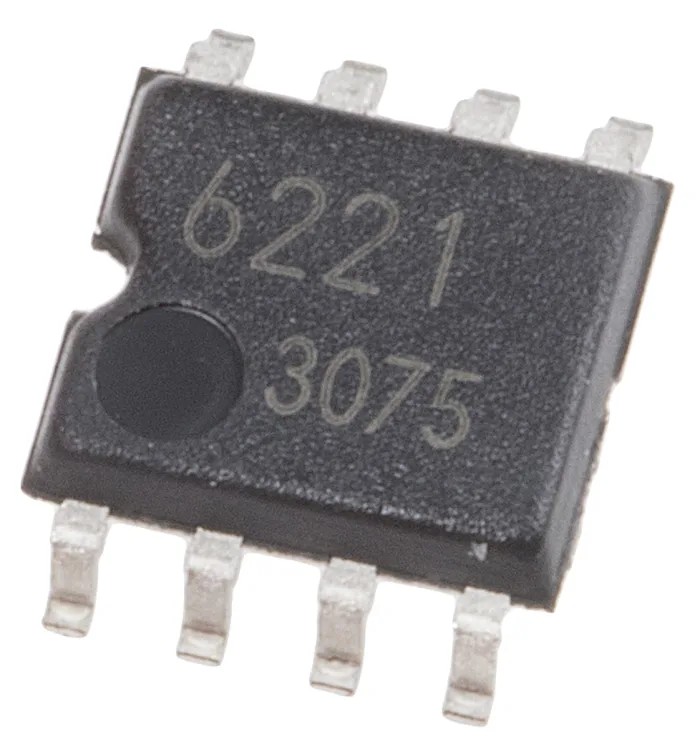

ROHM Brushed DC Motor Driver IC 18 V 1 A 8-Pin SOP BD6221F-E2
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 1.5mm |
| Length | 5mm |
| Model | BD6221F-E2 |
| Width | 4.4mm |
| Motor Type | Brushed DC Motor |
| Mount Type | Surface |
| Series | BD6221 |
| Configuration | Half Bridge |
| Output Current | 1A |
| Maximum Operating Temperature | 85°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Maximum Collector Emitter Voltage Vceo | 18V |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 6V |
| Supply Current | 2.5mA |
| Maximum IGBT Collector Current | 1A |
| Typical Switching Frequency | 100kHz |
| Inverter Power Rating | 0.68W |
| ROHM BD6221F-E2, Brushed Motor Driver IC 1A 8-Pin, SOPBrand | ROHM |
Key Features
- Supports brushed DC motors with half bridge configuration.
- Maximum collector-emitter voltage of 18 volts ensures robust operation.
- Output current capability of 1 ampere for effective motor driving.
- Package type SOP with 8 pins optimizes PCB mounting.
- Operating temperature range from -40°C to 85°C for reliable performance.
- Typical switching frequency at 100 kHz to enable smooth motor control.
- Supply voltage range between 6 V minimum and 15 V maximum.
- Low supply current of 2.5 mA reduces power consumption.
Product Description
ROHM BD6221F-E2 is a specialized Motor Driver IC designed to control brushed DC motors efficiently with half bridge configuration. It supports a maximum input voltage of 18 V and an output current capacity of 1 A, making it suitable for various industrial and electronic motor control applications.
This 8-pin SOP package device delivers low power consumption with a supply current of just 2.5 mA and operates reliably within a wide temperature range of -40°C to +85°C. Its typical switching frequency of 100 kHz ensures smooth motor operation with minimal noise.
The compact form factor (5 mm length, 4.4 mm width, and 1.5 mm height) makes it ideal for space-constrained electronic circuit designs in power management and motor control tasks.
ROHM BD6221F-E2 features reliable half bridge output stage construction to drive brushed DC motors with precision and efficiency. Its minimum and maximum supply voltages are 6 V and 15 V respectively, allowing flexible use in variable power environments.
Supports brushed DC motor half bridge configuration. Maximum collector-emitter voltage is 18 V. Output current capacity of 1 A. Low supply current of 2.5 mA enhances efficiency. Typical switching frequency of 100 kHz for stable operation.
Operating temperature range: -40°C to +85°C. Compact SOP 8-pin surface mount package. Physical dimensions ensure easy integration into PCB designs. Not compliant with automotive standards but targeted at power management IC applications.
This Motor Driver IC is well-suited for electronics manufacturing, motor control modules, power management circuits, and embedded system applications requiring reliable brushed DC motor drive functionality.
Explore more Motor Driver ICs and related electronic components on EnvMart to find complementary devices for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum collector-emitter voltage for the ROHM BD6221F-E2 is 18 V.
This motor driver IC has an output current capacity of 1 A.
The typical switching frequency of this model is 100 kHz, which helps ensure smooth motor operation.
The supply voltage range for the ROHM BD6221F-E2 is between 6 V and 15 V.
It supports brushed DC motors with a half bridge configuration.
The operating temperature range for the BD6221F-E2 is from -40°C to 85°C.
This motor driver IC has a length of 5 mm, a width of 4.4 mm, and a height of 1.5 mm.
The supply current for the ROHM BD6221F-E2 is 2.5 mA, which helps reduce power consumption.
The BD6221F-E2 comes in an 8-pin SOP (Small Outline Package) format.
No, the BD6221F-E2 is not compliant with automotive standards; it is targeted at power management IC applications.
This model is designed for surface mounting.
This motor driver IC is well-suited for electronics manufacturing, motor control modules, and embedded system applications requiring brushed DC motor drive functionality.
