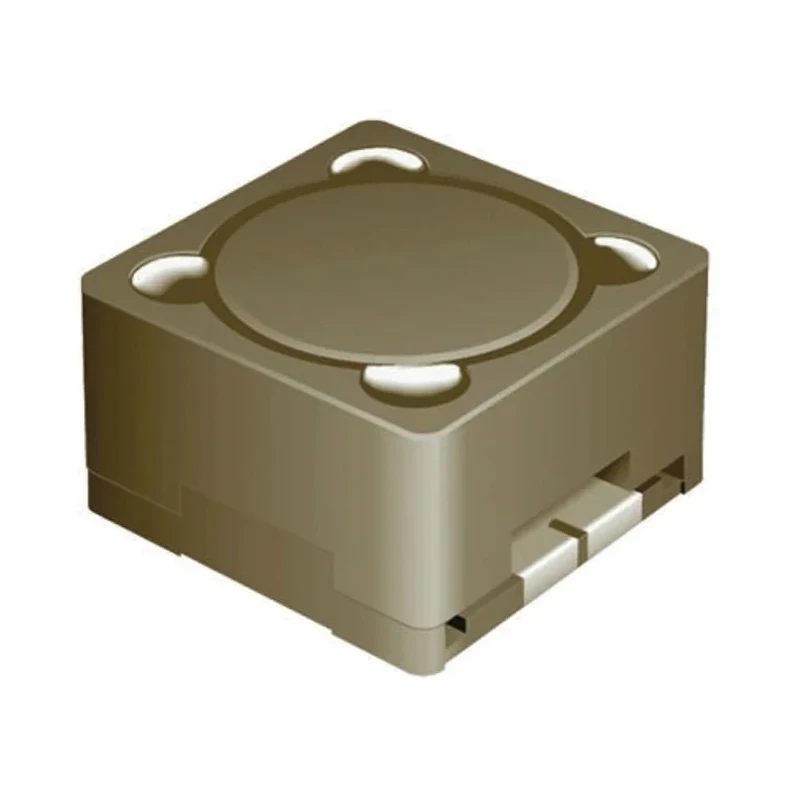

Bourns 1208 Shielded Wirewound Surface Mount Inductor 33 μH ±15% 2.8 A Idc Ferrite Core SRR1208

Bourns SRR1208 shielded wirewound surface mount inductor features a ferrite core with an inductance of 33 μH ±15% and supports a maximum DC current of 2.8 A. It is designed in a compact 1208 package size with a height of 8.5 mm and a depth of 12.7 mm suitable for high density PCB layouts.

The magnetic shielding reduces electromagnetic interference, making it ideal for industrial, consumer electronics, power supply, and communications equipment applications. Its robust construction and solder termination style ensure reliable electrical and mechanical performance on surface mount assemblies.

This inductor operates efficiently across a wide temperature range from -40°C to 125°C and has a maximum DC resistance of 62 mΩ contributing to reduced power losses. The device offers a high-quality factor (Q) of 23 and a maximum self-resonant frequency of 6.5 MHz, making it suitable for filtering and DC/DC converter circuits.

Packaged in reels, these inductors improve production efficiency by enabling automatic insertion in surface mount technology processes. The SRR1208 series is RoHS compliant and features molded ferrite core wirewound construction.

Low profile, magnetically shielded wirewound inductor construction. Inductance tolerance of ±15% ensures reliable performance. Rated maximum DC current of 2.8 A for high current applications. Compatible with solder termination style for PCB mounting.

Maximum self-resonant frequency of 6.5 MHz suitable for high frequency filtering. RoHS compliant construction with ferrite core material. Operating temperature range from -40°C to 125°C. Packaged in a 1208 case size reel for efficient assembly.

This product is ideal for applications including dc/dc converters, EMI filters, and other demanding electronic circuit designs. Browse more categories in Surface Mount Inductors and explore Bourns products on EnvMart for reliable and efficient electronic components.
