MEAN WELL AC/DC Adapter Type C 264V AC Output 2.77 A, 9 V DC SGA25E09-P1J

Name: MEAN WELL AC/DC Adapter Type C 264V AC Output 2.77 A, 9 V DC SGA25E09-P1J
Brand: MEAN WELL
SKU: 204837



Category AC/DC Adapters Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Model	SGA25E09-P1J
Cable Length	1m
Overall Length	75.5mm
Series	SGA25E
Overall Width	75.5mm
Maximum Operating Temperature	60°C
Plug Type	Type C
Maximum Input Voltage	264V ac
Maximum Output Current	2.77A
Standards/Approvals	UL 60950-1, IEC 60950-1, CE
Minimum Input Voltage	100V ac
Minimum Output Voltage	9V dc
Input Connector Type	EU Plug
MEAN WELL AC/DC Adapter Type C 264V ac Output 2.55 A, 9 V dcBrand	MEAN WELL

Key Features

Provides a maximum output current of 2.77 A for reliable power delivery.
Equipped with a Type C plug and 1 meter cable length for easy connection.
Compact dimensions of 75.5 mm length and width ensure space-saving installation.
Operates efficiently within an input voltage range of 100V AC to 264V AC.
Meets safety standards including UL 60950-1, IEC 60950-1, and CE approvals.
Features short circuit, overvoltage, and overload protection for enhanced safety.
Slim and compact design with a fully enclosed plastic case for durability.
High efficiency up to 91% contributing to energy savings and compliance with EU ErP regulations.

Product Description

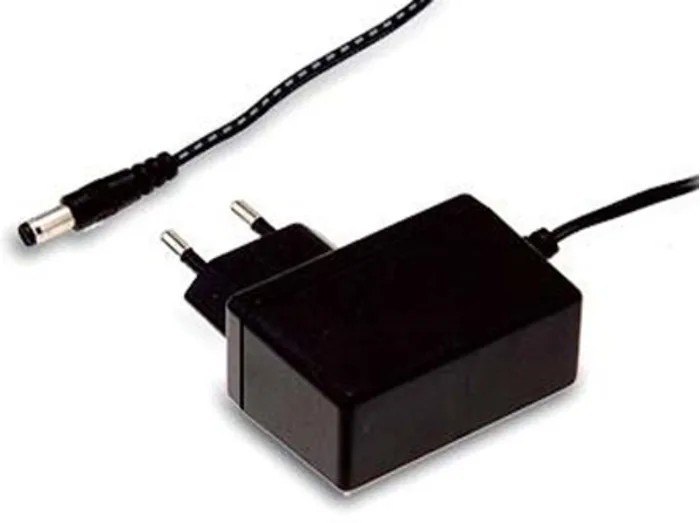

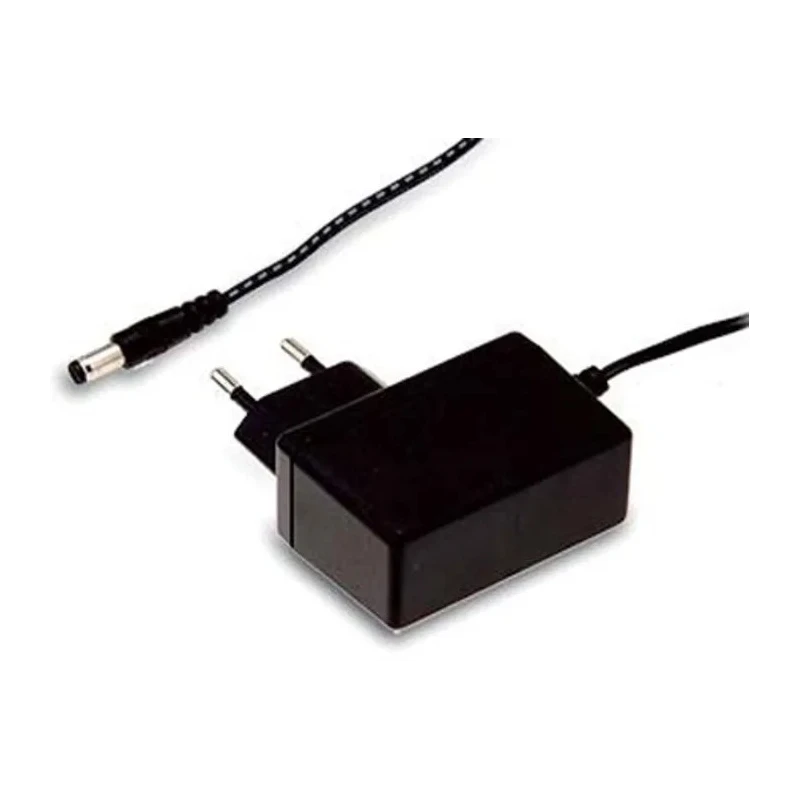

MEAN WELL SGA25E09-P1J AC/DC Adapter is a high-performance Type C plug-in power supply designed for robust and efficient energy conversion. Operating with an input voltage range between 100V AC and 264V AC, it delivers a stable output current of 2.77 A at 9 V DC. This adapter is constructed with a compact, slim profile, measuring 75.5 mm in both length and width, making it ideal for space-constrained environments.

The adapter incorporates advanced protection features including short circuit, overvoltage, and overload protections, ensuring reliability and safety during operation. Its fully enclosed plastic case offers physical durability and safety, aligned with Class II power standards (without earth pin).

Certified under UL 60950-1, IEC 60950-1, and CE standards, this power supply meets stringent international safety and quality requirements. It achieves up to 91% efficiency, contributing to reduced energy loss and compliance with EU ErP directives, making it an environmentally responsible choice. The cable length of 1 meter and Type C EU plug type enable straightforward installation and compatibility in various settings.

This MEAN WELL adapter is suitable for powering a wide range of consumer electronics, office equipment, industrial devices, and telecommunications apparatus. Its compact form factor combined with versatile input and output specifications makes it a reliable solution for many applications requiring dependable DC power.

Maximum output current: 2.77 A. Type C plug and EU input connector with 1 meter cable length. Compact dimensions of 75.5 mm x 75.5 mm. Input voltage range: 100V AC to 264V AC. Safety standards: UL 60950-1, IEC 60950-1, CE certified.

Short circuit, overvoltage, and overload protection features. Energy-efficient design with up to 91% efficiency. Fully enclosed plastic case and Class II power rating. Consumer electronics, industrial equipment, office facilities, and telecommunications.
