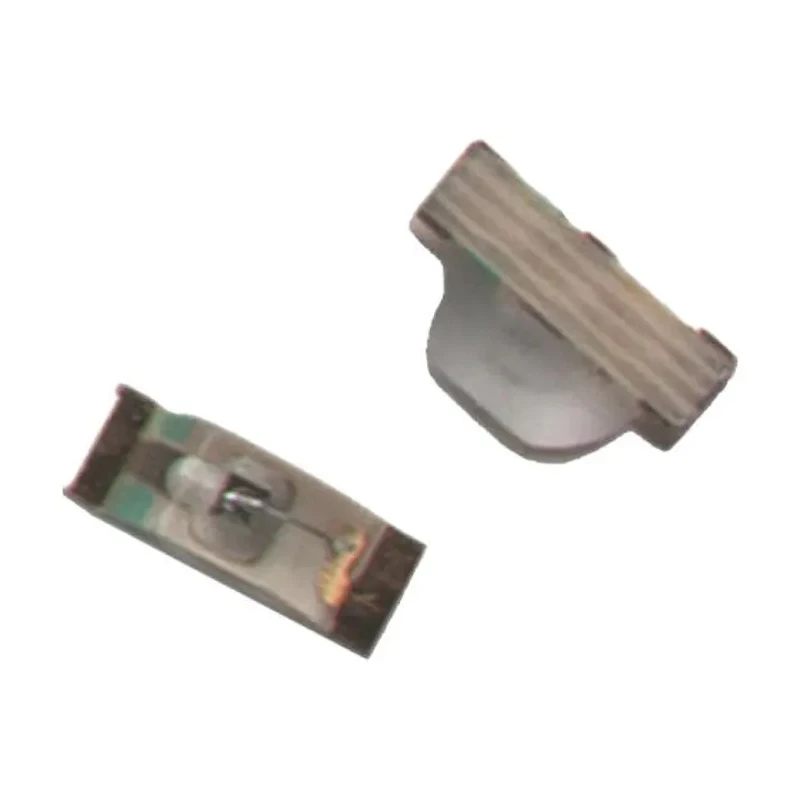

Broadcom 1.9 V Red LED 1606 Surface Mount High Brightness 90 mcd Dome Lens HSMC-C120

Broadcom HSMC-C120 is a high-performance red LED designed for surface mounting using a compact 1606 package footprint. Operating at a forward voltage of 1.9 V and maximum forward current of 25 mA, this LED features a durable dome-shaped lens with dimensions of 1.6 x 1 x 0.6 mm. It provides a luminous intensity of 90 mcd with a dominant wavelength of 626 nm, delivering bright and clear red illumination suitable for industrial and electronic applications.

This LED offers a wide viewing angle of 155°, enabling broad light coverage ideal for keypad backlighting, push-button indicators, LCD backlighting, and front panel display illumination. The non-diffused, untinted lens finish enhances light output while maintaining clarity. Its compatibility with IR soldering processes ensures efficient manufacturing workflows.

The device supports a maximum power dissipation of 60 mW and operates reliably within a temperature range of -30°C to +85°C, making it suitable for a variety of industrial environments including automation, instrumentation, and consumer electronics.

Broadcom’s HSMC-C120 series LEDs conform to RoHS standards, ensuring compliance with environmental safety regulations. The product package is tape and reel, facilitating automated assembly and efficient handling.

Compact 1606 surface mount package enhances PCB space management. Bright red emission with 90 mcd luminous intensity for clear visibility. Wide viewing angle provides uniform illumination over large viewing areas. High reliability over a broad operating temperature range.

RoHS compliant and suitable for modern electronics manufacturing.

This product is widely used in electronic control panels, consumer electronics, industrial instrumentation, and other applications requiring reliable, bright red indicators. For additional related components and lighting solutions, explore the extensive Broadcom LED category on EnvMart.
