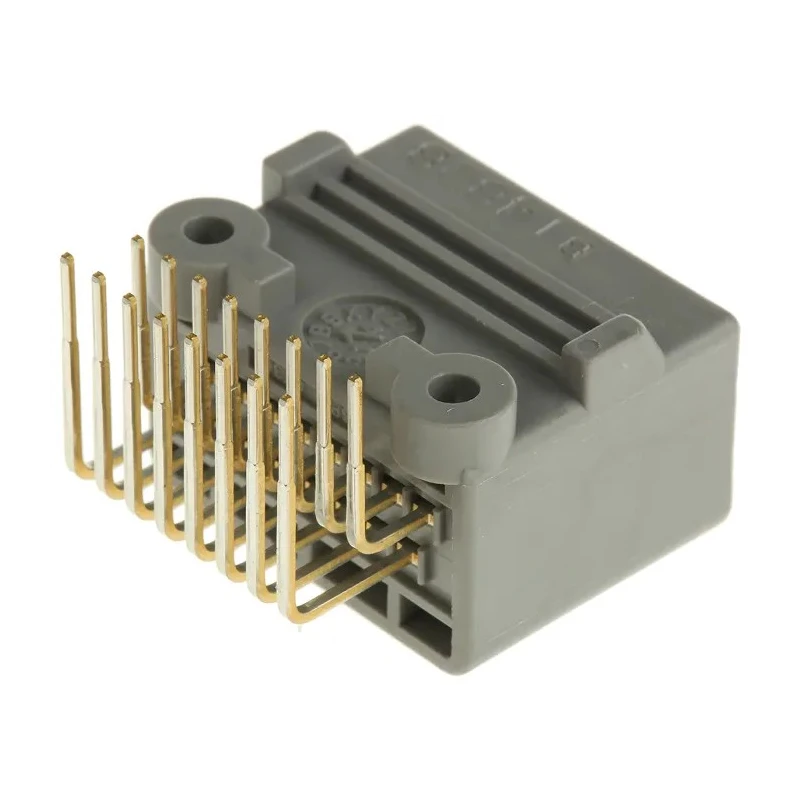

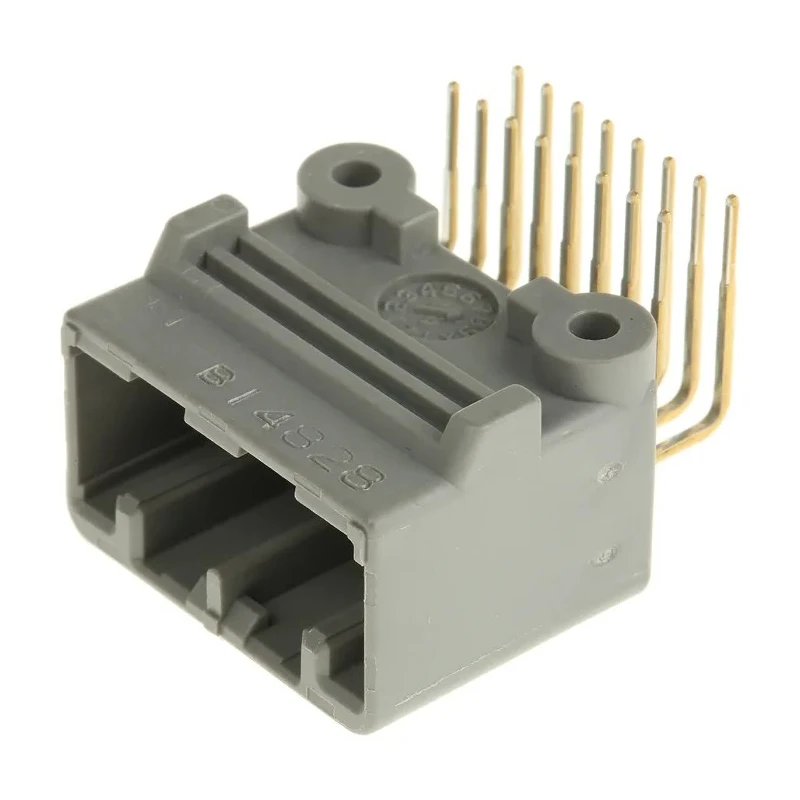

JAE MX34 Series Right Angle Through Hole PCB Header 16 Contacts 2.2 mm Pitch 2 Row Shrouded MX34

Free Delivery in India | Lowest Global Shipping Charges

JAE MX34 Series Right Angle Through Hole PCB Header 16 Contacts 2.2 mm Pitch 2 Row Shrouded MX34



Category PCB Header Brand JAE Condition New

Specifications

Country of Origin	India
Brand	JAE
Orientation	Right Angle
Current	3A
Model	MX34
Mount Type	Through Hole
Housing Material	Glass Filled Syndiotactic Polystyrene
Contact Material	Brass
Series	MX34
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.2mm
Contact Plating	Tin
Number of Contacts	16
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
For MX34 socket housings see typical stock numbers	690-9852

Key Features

Designed for automotive board-to-cable connectivity with durable construction.
16 male contacts arranged in two rows with 2.2 mm pitch for precise fit.
Made from glass filled syndiotactic polystyrene housing for thermal and mechanical strength.
Contacts are brass with tin plating, ensuring reliable solder termination.
Right angle orientation facilitates compact PCB layouts.
Shrouded design offers protection and alignment for mating connectors.
Supports continuous current of 3A while operating between -40°C to 85°C.
Through hole mount type enables strong mechanical connection to PCB.

Product Description

JAE MX34 Series Right Angle Through Hole PCB Header MX34 model MX34016NF1 is a precision-engineered connector designed for reliable wire-to-board connections primarily in automotive and industrial electronic applications. This 2-row, 16-contact header features a 2.2 mm pitch and a robust shrouded housing made from glass filled syndiotactic polystyrene that offers mechanical stability and thermal resistance for use in demanding environments.

The connector is designed with a right angle orientation to facilitate compact PCB layouts where space optimization is crucial. Contacts are made from brass and plated with tin, providing excellent conductivity and solderability. The through hole mounting method ensures a durable physical and electrical connection to printed circuit boards.

Its preset double locking mechanism and box-type pin headers ensure secure mating, reducing the risk of incomplete connection and improving workability by limiting mating and unmating forces to 80N or less. The lock spring with a protective bridge safeguards the contacts from mechanical stresses during assembly and operation.

The connector operates reliably from -40°C to 85°C and accommodates a continuous current of 3 amperes, meeting automotive connector standards and expectations without specific certifications.

Durable automotive-grade wire-to-board connector. 16 male brass contacts arranged in 2 rows with 2.2 mm pitch. Glass filled syndiotactic polystyrene housing provides thermal and mechanical strength. Right angle orientation for compact PCB layout design.

Shrouded design improves connector alignment and protection. Through hole mount for secure PCB attachment. Supports 3A continuous current with robust operating temperature range. Double locking mechanism and box-type pin header ensure mating reliability.

Lock spring bridge reduces contact stress from external loads. Ideal for automotive and electronic component manufacturing industries. Explore our extensive range of PCB connectors for diverse electronic assembly applications on EnvMart.
