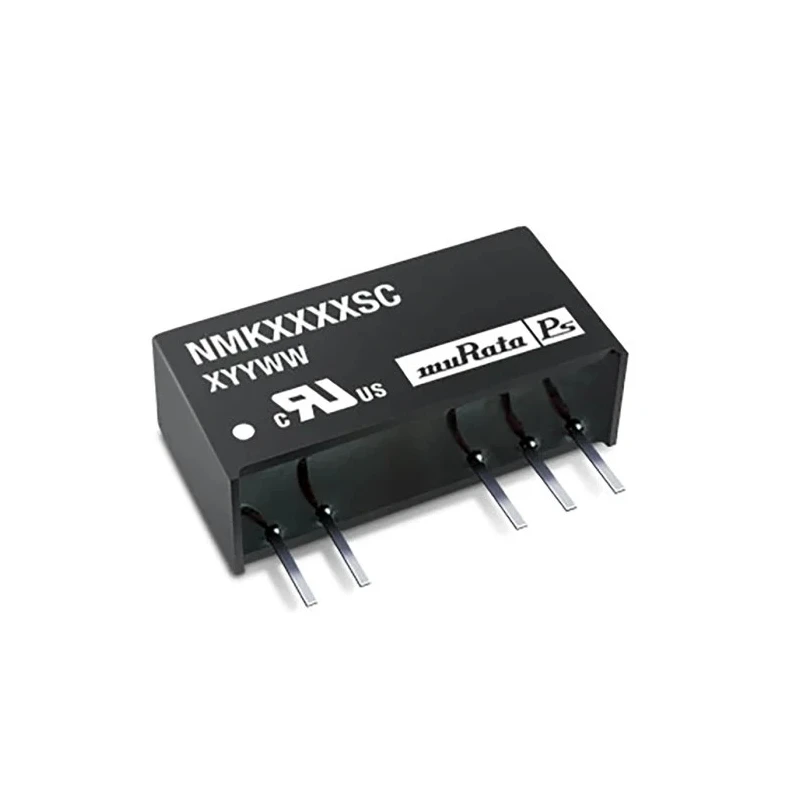

Murata Power Solutions NMK Series 2W SIP Unregulated Dual Output DC/DC Converter Isolated 15V dc/ -15V dc 67mA 3kV NMK1215SC

Murata Power Solutions NMK1215SC is an industrial-grade isolated DC/DC converter designed to deliver dual outputs of 15V dc and -15V dc at a maximum output current of 67mA and a total power rating of 2W. Its unregulated design offers precise output voltage set points with superior load regulation, making it ideal for demanding electronic applications requiring stable isolated power supplies. The through-hole SIP package with seven pins ensures reliable mechanical and electrical soldering to the PCB.

The input voltage range of 10.8V to 13.2V dc allows for adaptability in diverse power environments. The converter’s high efficiency of 87% minimizes heat dissipation, thereby often eliminating the need for additional heat sinks. Its operation is assured over a broad industrial temperature range from -40°C to 85°C, suitable for harsh conditions encountered in automation, instrumentation, and communications equipment.

Key safety features include a 3kV dc isolation voltage rated for 1 minute, which effectively prevents electrical interference and protects sensitive circuitry. The NMK series adopts a UL 94V-0 flammability rated encapsulation material for enhanced user safety. This converter has achieved RoHS certification to comply with international environmental regulations.

Compact dimensions - 19.5mm length, 19.6mm width, and 10mm depth - with a mass of just 2.8 grams make it an ideal choice for space-limited applications in industrial, laboratory, and telecommunications fields. The Mean Time Between Failures (MTBF) rating of 1,574,000 hours highlights the product’s reliability and durability for continuous operation.

Provides isolated dual output voltages of 15V dc and -15V dc for versatile applications. Operates with input voltages ranging from 10.8V to 13.2V dc ensuring wide input compatibility. High efficiency of 87% supports energy saving and thermal management.

Constructed with a through-hole SIP package and seven pins for secure PCB mounting. Rated for operation within a temperature range of -40°C to 85°C suitable for industrial environments. Designed with 3kV dc isolation voltage ensuring safety and noise reduction in circuits.

Compact dimensions of 19.5mm length, 19.6mm width, and 10mm depth for space-constrained setups. Mean Time Between Failures (MTBF) of 1,574,000 hours promising high reliability. RoHS compliant ensuring environmentally safe manufacturing standards.

Weight of 2.8 grams provides lightweight integration, suitable for automated assembly.

The Murata NMK DC/DC Converter series is widely used in electronic component manufacturing, power supplies, telecommunications, industrial automation, laboratory instrumentation, and other commercial applications demanding efficient, reliable isolated voltage conversion. It provides engineers with a robust solution for voltage isolation and conversion in modern compact electronics.
