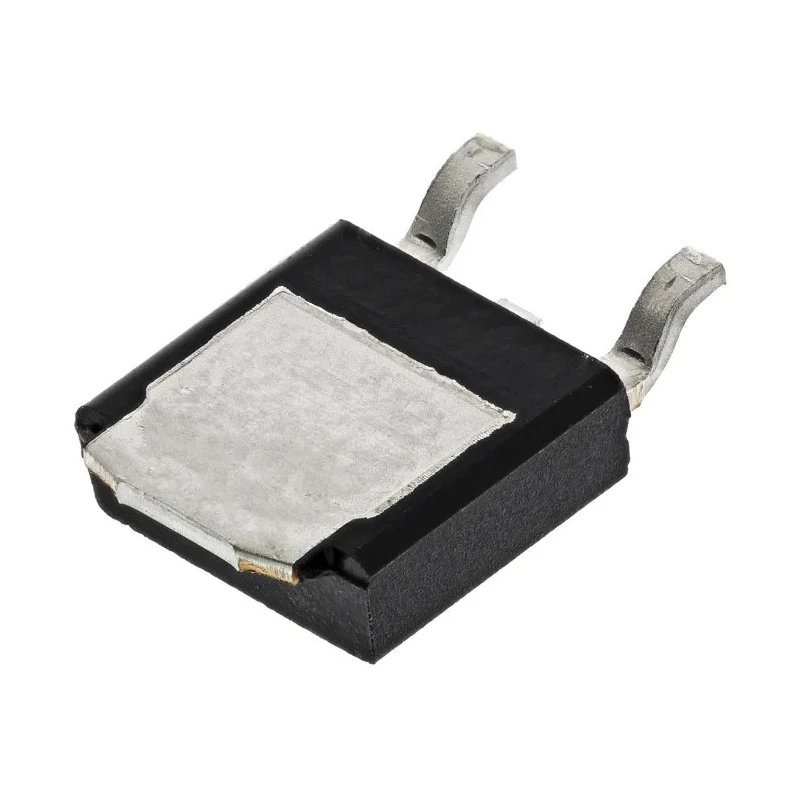

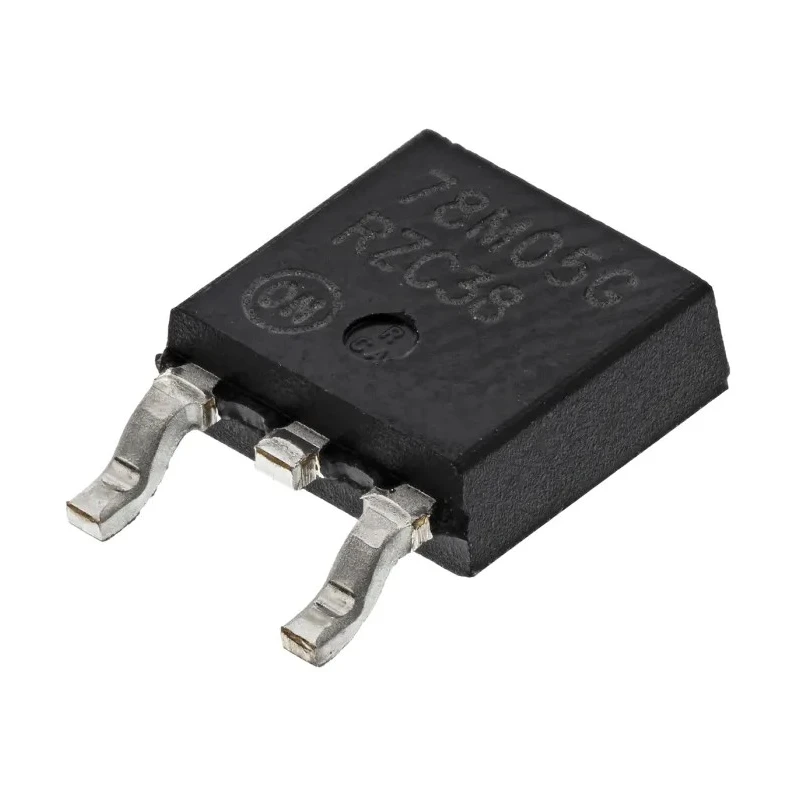

onsemi Surface Mount Positive Voltage Regulator 35V Maximum Input, Quiescent Current 3.2mA, 3-Pin MC78M05CDTRKG
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi, Voltage Regulator 35V 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 2.38mm |
| Length | 6.73mm |
| Model | MC78M05CDTRKG |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | MC78Mxx |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 3.2mA |
| Minimum Input Voltage | 7V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Compact 3-pin surface mount package provides ease of installation.
- Operates with a wide input voltage range from 7V to 35V.
- Features low quiescent current of 3.2mA for power efficiency.
- Supports maximum output current up to 500mA when used with suitable heat sink.
- Incorporates internal current limiting and thermal shutdown for protection.
- Meets automotive standard AEC-Q100 for reliability in harsh environments.
- Operating temperature range up to 125°C for robust performance.
Product Description
onsemi MC78M05CDTRKG is a surface mount positive linear voltage regulator designed for efficient power management in electronic circuits. It supports input voltages ranging from 7V to a maximum of 35V and delivers a regulated output suitable for various applications including local and on-card voltage regulation.
The regulator operates with a low quiescent current of 3.2mA, enhancing power efficiency especially in battery-powered applications. With an internal current limiting function and thermal shutdown protection, the device ensures safety and reliability under extended operating conditions and stress.
This 3-pin voltage regulator is housed in a compact package measuring 6.73mm by 6.22mm by 2.38mm, enabling integration in space-constrained industrial and consumer electronics designs. It complies with the automotive standard AEC-Q100, assuring suitability for automotive-grade electronics.
The device is rated for maximum operating temperatures up to 125°C, supporting usage in demanding industrial and automotive environments. Its output current capability reaches up to 500mA when used with a proper heat sink, making it versatile for general voltage regulation tasks.
Compact 3-pin surface mount package for PCB applications. Wide input voltage operating range from 7V to 35V max. Low quiescent current of 3.2mA to minimize power loss. Built-in current limiting and thermal shutdown features.
AEC-Q100 qualified for automotive reliability. Thermal and overload protection for safe operation. Temperature rating up to 125°C to withstand harsh environments. Suitable for use in industrial, automotive, and consumer electronics.
This voltage regulator is ideal for industrial, automotive, and electronic component manufacturing applications requiring reliable, precise voltage regulation. It is a key component for power management integrated circuits and voltage regulation needs.
Explore EnvMart's broad selection of power management ICs and Voltage Regulators to find compatible products and accessories for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 35V.
This voltage regulator has a low quiescent current of 3.2mA, enhancing power efficiency.
It can deliver a maximum output current of up to 500mA when used with a suitable heat sink.
The operating temperature range for this unit is up to 125°C, making it suitable for demanding environments.
This model measures 6.73mm in length, 6.22mm in width, and 2.38mm in height.
It supports surface mounting, making it easy to integrate into PCB applications.
It meets the AEC-Q100 automotive standard, ensuring reliability in automotive applications.
The minimum input voltage for this model is 7V.
Yes, it incorporates internal current limiting and thermal shutdown for protection against overloads.
This voltage regulator is part of the MC78Mxx series.
It is suitable for industrial, automotive, and consumer electronics applications requiring reliable voltage regulation.
The MC78M05CDTRKG is a positive polarity voltage regulator.
