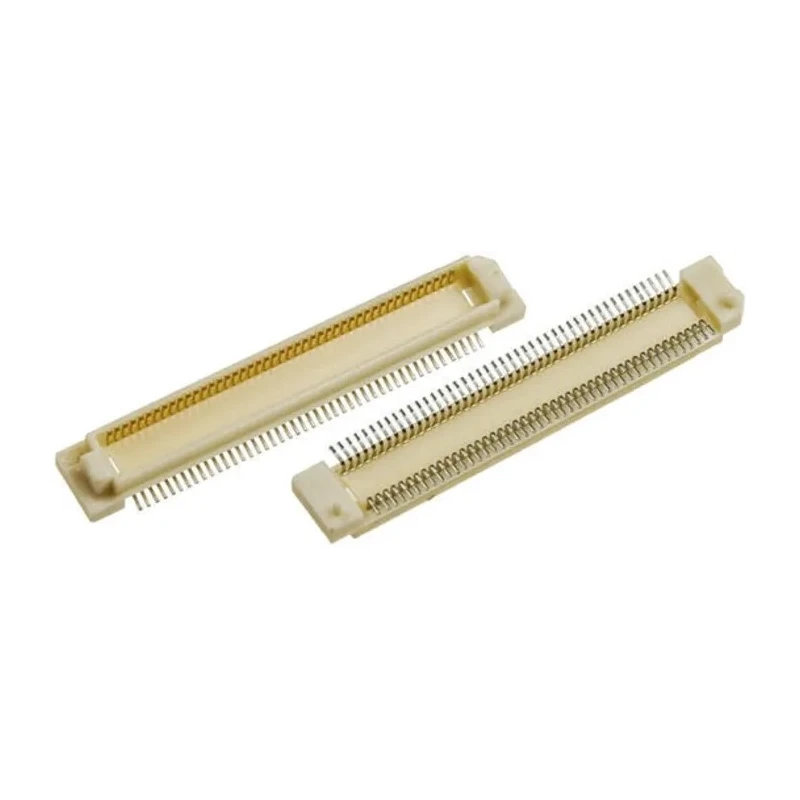

Hirose FunctionMAX FX8 Series Straight Surface PCB Header, 80 Contacts, 0.6 mm Pitch, 2 Row, Shrouded FX8-80P-SV(91)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 400mA |
| Model | FX8-80P-SV(91) |
| Mount Type | Surface |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Phosphor Bronze |
| Series | FunctionMAX FX8 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.6mm |
| Contact Plating | Gold |
| Number of Contacts | 80 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- High-speed data transmission capability up to 3.125 Gbit/s.
- Built-in guide ribs allow ±0.6 mm misalignment for easy mating.
- Polyphenylene sulphide housing ensures durability and heat resistance.
- Gold-plated phosphor bronze contacts provide excellent conductivity.
- Surface mount type with straight orientation for PCB integration.
- Reliable spring deflection contact design for enhanced connection stability.
- Supports operating temperatures from -55°C to 85°C.
- Wide application in servers, industrial equipment, medical devices, and POS terminals.
Product Description
Hirose FX8-80P-SV(91) FunctionMAX FX8 Series Straight Surface PCB Header is a high-quality 80-contact board-to-board connector designed for precise and reliable electrical connections in industrial and electronic applications. It features a 0.6 mm pitch and two rows, ideal for compact PCB layouts and high-density connections.
The connector provides high-speed transmission support up to 3.125 Gbit/s with superior signal integrity, making it suitable for advanced electronic equipment such as servers, broadcast systems, industrial machinery, medical instrumentation, and POS terminals.
Constructed with a durable polyphenylene sulphide housing and gold-plated phosphor bronze contacts, it offers excellent resistance to wear, corrosion, and ensures low contact resistance. Its shrouded design with built-in mating guide ribs allows ease of connection and tolerance of ±0.6 mm misalignment during mating, improving assembly flexibility.
The connectors use a surface mount technology (SMT) coplanar soldering style and include guide posts to enhance PCB alignment and prevent misinsertion. The spring-deflection design of the contacts ensures increased reliability during use.
High-speed transmission speed of 3.125 Gbit/s. Built-in guide ribs allowing ±0.6 mm misalignment for straightforward mating. Durable polyphenylene sulphide housing. Gold-plated phosphor bronze contacts for excellent electrical conductivity.
Surface mount, straight orientation for easy PCB integration. Spring deflection contact design for improved connection reliability. Operating temperature range from -55°C to 85°C. Supports applications in servers, broadcast equipment, industrial and medical devices, and POS terminals.
Compatible within the FunctionMAX product range, these connectors are optimized for performance in challenging industrial environments requiring compact, durable, and reliable board-to-board electrical connections.
Explore broader selections in PCB Headers and electronic connectors categories for comprehensive project requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose FX8-80P-SV(91) supports high-speed data transmission up to 3.125 Gbit/s, ensuring superior signal integrity for advanced electronic applications.
This model features a 0.6 mm pitch and has 80 contacts, designed for compact PCB layouts and high-density connections.
The connector operates effectively within a temperature range of -55°C to 85°C, making it suitable for various industrial applications.
It is constructed with a polyphenylene sulphide housing and gold-plated phosphor bronze contacts, providing excellent durability and conductivity.
The shrouded design includes built-in guide ribs that allow for ±0.6 mm misalignment during mating, enhancing ease of connection and assembly flexibility.
This model utilizes surface mount technology (SMT) for coplanar soldering, which facilitates integration onto PCBs.
The current rating for the Hirose FX8-80P-SV(91) is 400 mA, suitable for various electronic applications.
This product employs a board-to-board connector system, allowing for reliable electrical connections between PCBs.
The orientation of this model is straight, designed for easy integration into PCB layouts.
The contact gender for this connector is male, designed for secure mating with corresponding female connectors.
This connector is widely used in servers, industrial equipment, medical devices, and POS terminals, among other applications.
The Hirose FX8-80P-SV(91) is manufactured in India, ensuring compliance with local manufacturing standards.
