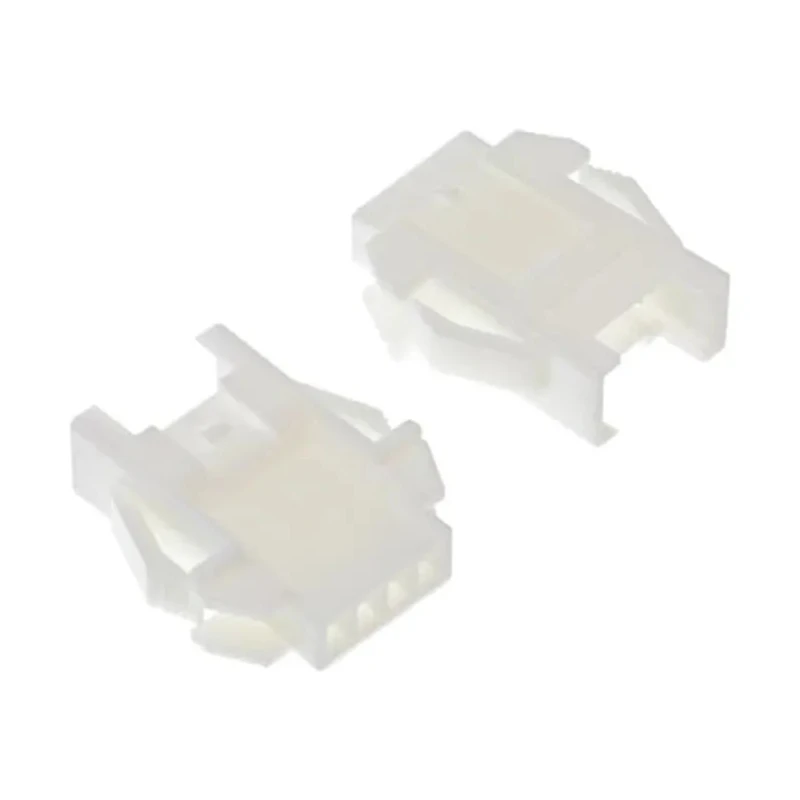

JST XA Female Connector Housing 2.5 mm Pitch 4 Way 1 Row Straight XARR-04V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JST |
| Orientation | Straight |
| Length | 12.5mm |
| Model | XARR-04V |
| Mount Type | Panel |
| Housing Material | Nylon |
| Series | XA |
| Interfaces | lance |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| For Use With | XA Connector |
| Number of Contacts | 4 |
| Connector Gender | Female |
Key Features
- Constructed from durable nylon housing material ensuring robust mechanical strength.
- Features a secure panel mount design for reliable electrical connections.
- Compatible with XA series connectors with a 2.5 mm pitch for precise mating.
- Contains 4 female contacts arranged in a single row for compact wiring solutions.
- Designed for operation within temperature range -25°C to 85°C for wide industrial use.
- Incorporates panel locks and secondary retainers for secure locking and vibration resistance.
- Manufactured with compliance to high-quality standards ensuring long service life.
Product Description
JST XARR-04V XA Female Connector Housing is an industrial-grade electronic connector housing engineered for reliable wire-to-board connections. Featuring a 2.5 mm pitch and 4 female contacts arranged in one row straight configuration, this connector housing is ideal for high-density, precise PCB applications.
The housing is constructed from high-quality nylon material that provides excellent mechanical resilience and thermal stability within a temperature range of -25°C to 85°C. The secure panel mount design includes panel locks and a secondary retainer to ensure robust locking, preventing accidental disconnections in demanding environments.
This XA series female connector housing is compatible with existing XA sockets and plugs, facilitating easy integration and replacement in electronic assemblies. The connector is designed for panel mounting, suitable for diverse industrial, laboratory, manufacturing, electronics assembly, and communication equipment applications.
With a compact length of 12.5 mm, it offers space-saving solutions for PCB layouts while maintaining secure electrical connections. Its precise 2.5 mm pitch ensures compatibility and performance in modular connector systems.
Durable nylon housing material for strength and reliability. Panel mount type with secure panel locks and secondary retainers. 4 contact female connector with 1-row, straight orientation. Operating temperature range from -25°C to 85°C.
Compact size with 12.5 mm length for tight PCB integration. Compatibility with XA series connectors for easy mating. High-quality manufacturing ensures long service life.
This Connector Housing suits applications in industrial electronic assemblies, telecommunications, instrumentation, and power distribution equipment where secure and reliable PCB connections are critical. It enables secure contact retention and mechanical stability in environments requiring dependable electrical performance.
Explore the broad range of electronic components and connectors in the Electronics & Electricals category on EnvMart for complementary parts and accessories to complete your assemblies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this connector housing is 2.5 mm, which ensures precise mating with compatible connectors.
This model features 4 female contacts arranged in a single row, facilitating compact wiring solutions.
The operating temperature range for this connector housing is from -25°C to 85°C, suitable for various industrial applications.
It is constructed from nylon, providing mechanical strength and thermal stability.
Yes, this connector housing is designed for panel mounting and includes panel locks and a secondary retainer for secure locking.
The length of this connector housing is 12.5 mm, allowing for space-saving integration on PCBs.
This connector housing is compatible with XA series connectors, facilitating easy integration and replacement.
The connector gender of this model is female, designed for secure wire-to-board connections.
It incorporates panel locks and a secondary retainer, ensuring robust locking and vibration resistance in demanding environments.
This connector housing is suitable for applications in industrial electronic assemblies, telecommunications, instrumentation, and power distribution equipment.
The contacts in this housing are arranged in a straight orientation, which aids in compact PCB layouts.
The country of origin for this connector housing is Japan, indicating its manufacturing location.
