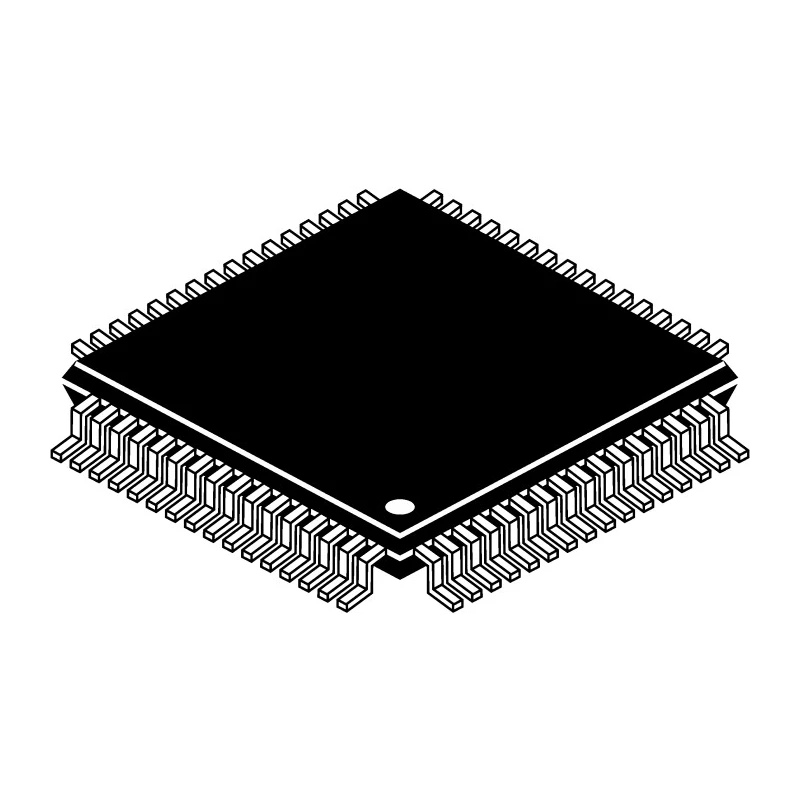

STMicroelectronics 8 bit STM8S Microcontroller, 24 MHz, 2.048 kB RAM, 128 kB FLASH, 64-Pin LQFP STM8S207RBT6 STM8
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 10mm |
| Model | STM8 |
| Width | 10mm |
| Mount Type | Surface |
| Series | STM8S |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 6kB |
| Interface Type | UART, SPI, I2P |
| Standards/Approvals | RoHS |
| Pin Count | 64 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 443mW |
| Minimum Supply Voltage | 2V |
| Device Core | STM8 |
| Program Memory Size | 2.048, 128kB |
| Maximum Clock Frequency | 24MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 128kB |
| Number of Timers | 2 |
| Instruction Set Architecture | CISC |
| ADCs | 16 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- The microcontroller features 128 kB FLASH memory and 2.048 kB of RAM.
- It supports UART, SPI, and I2P interfaces for versatile connectivity.
- Equipped with 64-pin LQFP package for surface mounting applications.
- Minimum operating temperature of -40°C and maximum operating temperature of 85°C ensures reliable operation in harsh environments.
- Low power consumption with a maximum power dissipation of 443 mW.
- Includes 16 ADC channels with 10-bit resolution and 2 analogue comparators for precision sensing.
- Supports two timers and 25 programmable I/O pins for flexible control functions.
- Designed with a CISC 8-bit STM8 core architecture for advanced embedded applications.
Product Description
STMicroelectronics STM8S207RBT6 is a mainstream 8-bit microcontroller based on the STM8S series featuring a high-performance STM8 core running at 24 MHz. It offers advanced embedded processing capabilities suitable for industrial, consumer electronics, and automotive systems.
This microcontroller integrates substantial on-chip memory with up to 128 kB FLASH program memory and 2.048 kB RAM to support complex application code. It features multiple communication interfaces including UART, SPI, and I2P, enhancing connectivity options for embedded systems.
The 64-pin LQFP surface mount package provides a compact footprint of 10 mm x 10 mm with a height of 1.45 mm, optimizing it for space-constrained electronic designs. Its operating temperature range from -40°C to 85°C makes it suitable for harsh environmental conditions commonly found in industrial control and automation.
Additional features include 16 ADC channels with 10-bit resolution, two analogue comparators, two timers, and 25 programmable I/Os, offering versatile I/O capability for sensing, timing, and control. The 8-bit CISC architecture ensures efficient instruction execution and reliability.
Power consumption is minimized with a maximum dissipation of 443 mW, promoting energy-efficient operation in battery-powered or energy-sensitive applications. This product complies with RoHS environmental standards, ensuring it meets current regulatory requirements for hazardous substances.
The STM8S207RBT6 supports a broad range of industrial, automotive, and consumer electronics applications. Its robustness and versatility make it ideal for embedded control, signal processing, and communication tasks. The device simplifies design efforts by integrating key peripherals and memory into a single microcontroller unit.
Explore more STMicroelectronics microcontroller products and embedded solutions on EnvMart for your industrial and commercial needs.
Explore more products in our Microcontrollers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 24 MHz.
It operates within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
This microcontroller features 128 kB of FLASH memory for program storage.
It supports UART, SPI, and I2P interfaces, providing versatile connectivity options.
The microcontroller has a height of 1.45 mm and a compact footprint of 10 mm x 10 mm.
This unit includes 16 ADC channels with 10-bit resolution for precision sensing.
The maximum power dissipation for this microcontroller is 443 mW.
It features 25 programmable I/O pins for flexible control functions.
The minimum supply voltage required is 2V.
It is designed with a CISC architecture, which allows for efficient instruction execution.
Yes, it complies with RoHS environmental standards, ensuring it meets regulatory requirements for hazardous substances.
The maximum expanded memory size is 128 kB.
