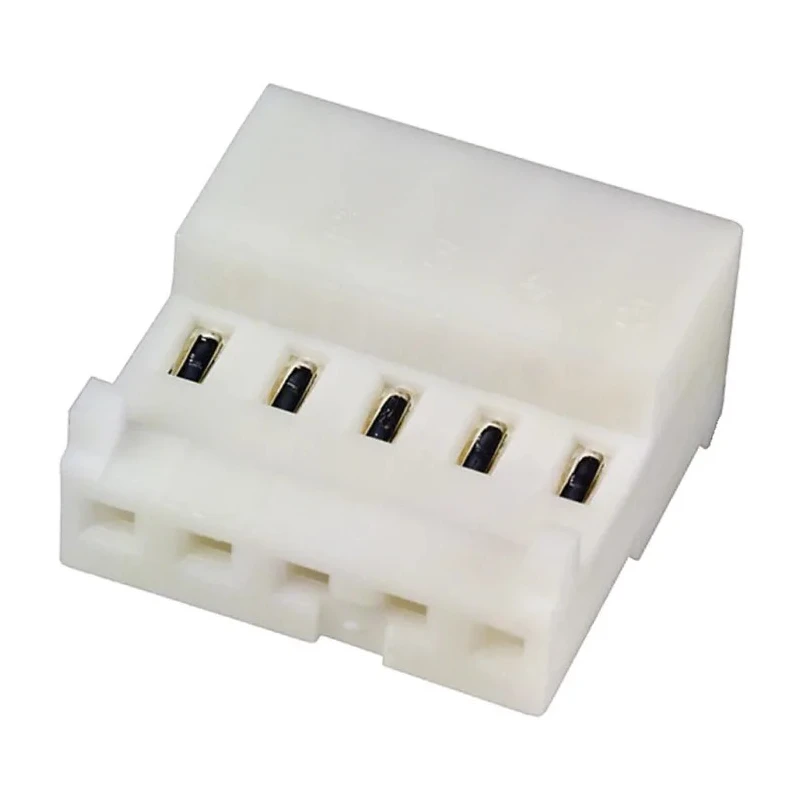

TE Connectivity 5-Way IDC Connector Female for Cable, 1 Row, 5A, 250V AC, Right Angle, Tin over Nickel Plating 3-643814-5

TE Connectivity 3-643814-5 is a 5-Way IDC Connector Female designed for cable connection applications, incorporating a single row of contacts. This IDC (Insulation Displacement Contact) connector is rated for 5A current and 250V AC voltage, providing reliable electrical performance in high-demand environments. The connector features a right angle orientation that facilitates easy wiring in constrained spaces.

The connector consists of copper contacts plated with tin over nickel, enhancing corrosion resistance and electrical conductivity. The housing is made of durable nylon material ensuring mechanical robustness and thermal stability with operational temperature limits from -55°C up to 105°C.

The MTA-100 series design leverages a mass termination assembly approach that allows rapid, one-step wire connection without the need for pre-stripping insulation. This feature saves substantial labor and cost in manufacturing or repair processes. The female IDC connector is shrouded for additional protection, fitting securely onto cables while preventing accidental contact.

Additional mechanical features include a friction lock mechanism that secures mating connections with positive retention and molded ribs that help avoid incorrect mating orientations. The connectors also support end-to-end stacking, enabling versatile and compact assembly layouts in equipment.

This connector is widely used in automotive systems such as body, chassis, driver information, safety, and security modules. In computing and consumer electronics, it is suitable for desktop PCs, notebooks, servers, storage arrays, and workstations, serving as an effective wire-to-wire or wire-to-board connection solution.

Utilizes insulation displacement contact technology enabling one-step assembly without wire stripping. Shrouded connector design for enhanced protection and safety. Tin over nickel contact plating to ensure corrosion resistance and durable connectivity.

Constructed with copper contacts and nylon housing for mechanical strength and thermal resilience. Suitable for applications with operating temperature range from -55°C to 105°C. Equipped with friction lock mechanism and moulded ribs to prevent reverse mating and ensure secure connection.

End-to-end stackable design allows compact and flexible installation configurations. Compatible with 28 AWG to 22 AWG wires and supports mass termination in automotive, computing, and consumer electronics. Explore more about TE Connectivity connectors and IDC Connector systems on EnvMart for your industrial, manufacturing, and electronics assembly needs.
