HARWIN M20 Series Right Angle Through Hole PCB Socket, 2-Contact, 1 Row, 2.54 mm Pitch Solder M20-7890246

Free Delivery in India | Lowest Global Shipping Charges

HARWIN M20 Series Right Angle Through Hole PCB Socket, 2-Contact, 1 Row, 2.54 mm Pitch Solder M20-7890246

Name: HARWIN M20 Series Right Angle Through Hole PCB Socket, 2-Contact, 1 Row, 2.54 mm Pitch Solder M20-7890246
Brand: HARWIN
SKU: 126333
Price: 0.89 USD
Availability: InStock



Category PCB Socket Brand HARWIN Condition New

Specifications

Country of Origin	Taiwan
Brand	HARWIN
Orientation	Right Angle
Current	12A
Model	M20-7890246
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Bronze
Series	M20
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Socket Strip
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Tin over Nickel
Number of Contacts	2
Contact Gender	Female
Connector System	Board-to-Board

Key Features

Compact and industry-standard right angle PCB socket designed for board-to-board connections.
Constructed with durable nylon housing meeting UL94V-0 high temperature standards.
Features highly reliable dual beam bronze contacts plated with tin over nickel for enhanced electrical connection.
Rated for up to 12A current per contact and supports up to 300 mating operations.
Suitable for embedding in consumer electronics, communications, industrial monitoring, and computing applications.
Designed for through hole mounting with solder termination ensuring secure PCB assembly.
Wide operating temperature range from -40°C to 105°C suitable for various industrial environments.
Connector system is board-to-board with female contact gender ensuring compatibility.

Product Description

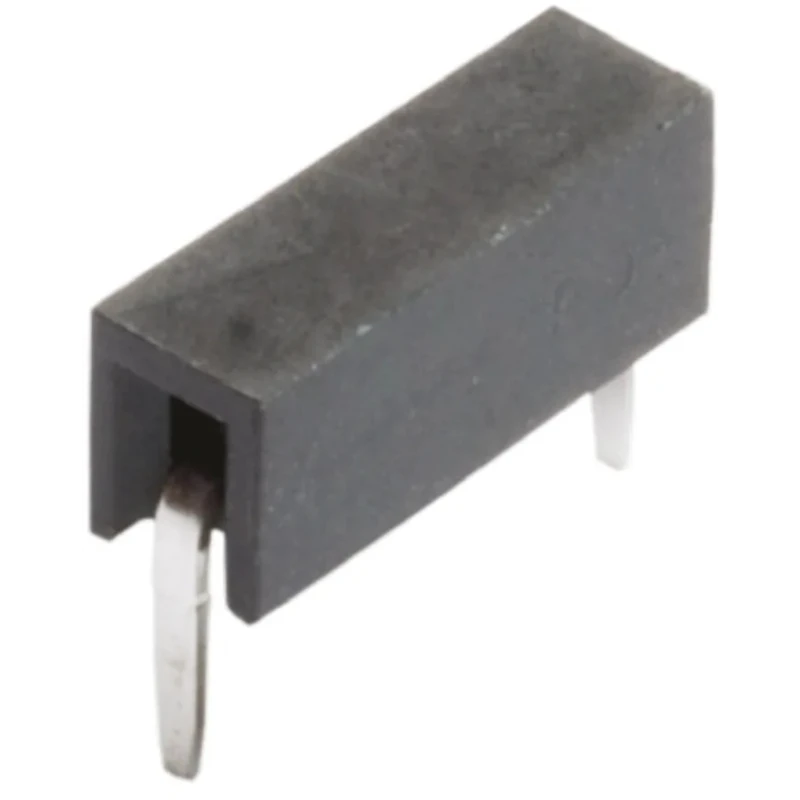

HARWIN M20-7890246 is a right angle through hole PCB socket designed for board-to-board electronic connections featuring 2 contacts arranged in a single row with a 2.54 mm pitch.

This socket series is engineered with a compact design and high-quality nylon housings certified to UL94V-0 for high temperature resistance and reflow soldering processes, ideal for industrial and electronic manufacturing.

The bronze contacts are plated with tin over nickel and utilize a dual beam construction, providing reliable and durable electrical performance up to 12A per contact and allowing up to 300 mating cycles, enhancing connector longevity and system reliability.

Mounting by through hole soldering ensures a secure and robust mechanical and electrical connection to printed circuit boards in embedded PCs, motherboards, and other large electronic systems.

This connector is suitable for a wide range of industrial applications including consumer electronics, communications equipment, drives and controls, industrial monitoring, and personal computing devices, offering a reliable solution for dense PCB designs with height restrictions.

Compact and standardized right angle PCB socket for board-to-board use. UL94V-0 nylon housing withstands high temperature soldering processes. Durable bronze dual beam contacts with tin over nickel plating ensure reliable connectivity.

Supports current rating of up to 12A per contact and 300 mating cycles. Through hole solder termination guarantees strong PCB attachment. Wide temperature operating range from -40°C to 105°C. Compliant with RoHS environmental standards.

Widely used in industrial and electronic applications including computing and communications. The set contains 1 PCB socket with 2 contacts in 1 row configuration. Country of origin is Taiwan, Province Of China. Explore the Electronics Components section at EnvMart for more PCB Sockets and connectors from leading brands like HARWIN.
