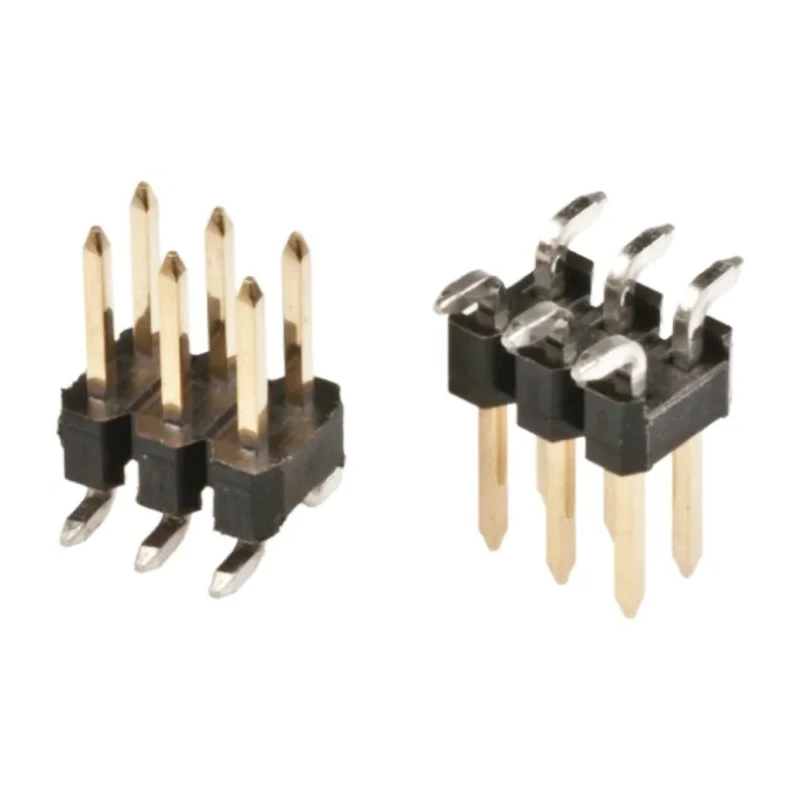

HARWIN M20 Series Straight Surface Pin Header 12 Contacts 2.54 mm Pitch 2 Row Unshrouded M20-8760642
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 3A |
| Model | M20-8760642 |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 5.8mm |
Key Features
- Comprises 12 contacts arranged in 2 straight rows for compact connection solutions.
- Pitch of 2.54 mm ensures compatibility with standard PCB designs.
- Constructed with nylon housing capable of withstanding reflow soldering processes.
- Features brass contacts plated with gold for superior conductivity and corrosion resistance.
- Supports a maximum current of 3A and operates between -40°C to 105°C.
- Unshrouded and male contact type facilitates easy solder termination on surface mounts.
- Mating pin length is 5.8 mm for reliable mechanical and electrical engagement.
- Suitable for consumer electronics, communications, embedded PC systems, and industrial monitoring applications.
Product Description
HARWIN M20-8760642 Series Straight Surface Pin Header is a high-quality PCB connector designed for versatile electronic component interfacing. This model features 12 male contacts distributed across 2 rows with a precise 2.54 mm pitch, making it suitable for both board-to-board and wire-to-board connector systems.
The durable nylon housing material is engineered to withstand the reflow soldering process used in modern manufacturing, ensuring stable and reliable assembly. The connector pins are made of brass and plated with gold, providing excellent electrical conductivity and corrosion resistance.
Operating temperature ranges from -40°C to 105°C, supporting a maximum current capacity of 3 amperes, which makes it ideal for a broad span of industrial, commercial, and electronic applications.
Key features include an unshrouded design and a solder termination type mounted on the surface, which simplifies installation and maintenance. With a mating pin length of 5.8 mm, the connector assures secure electrical engagement and mechanical stability during operation.
This M20 series pin header aligns with embedded PC motherboards, consumer electronics, communications devices, industrial control systems, and personal computing hardware. The connector’s flexibility in configuration and robust thermoplastic housing enhance both design efficiency and durability.
Comprises 12 contacts arranged in 2 rows for compact and efficient design. 2.54 mm pitch supports standard PCB layouts for broad compatibility. High-temperature nylon housing suitable for reflow soldering processes. Gold-plated brass contacts enhance conductivity and corrosion resistance.
Rated for 3A current and -40°C to 105°C operating temperature range. Unshrouded design with solder termination for surface mounting. Mating pin length of 5.8 mm ensures secure connection. Applicable in consumer electronics, communications, industrial and embedded systems.
Explore more PCB connectors and electronic components in the Electronics & Electricals category on EnvMart to find complementary products and solutions suited for your industrial and technological needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 2.54 mm, ensuring compatibility with standard PCB designs.
This model comprises 12 contacts arranged in 2 straight rows.
It supports a maximum current of 3A.
The operating temperature range is from -40°C to 105°C.
The housing is made of nylon, while the contacts are brass plated with gold for enhanced conductivity and corrosion resistance.
It features a solder termination type, suitable for surface mounting.
The mating pin length is 5.8 mm, ensuring secure mechanical and electrical engagement.
This pin header is unshrouded, facilitating easy solder termination on surface mounts.
It is suitable for consumer electronics, communications, embedded PC systems, and industrial monitoring applications.
It supports both board-to-board and wire-to-board connector systems.
The country of origin for this pin header is Taiwan.
The orientation of this pin header is straight.
