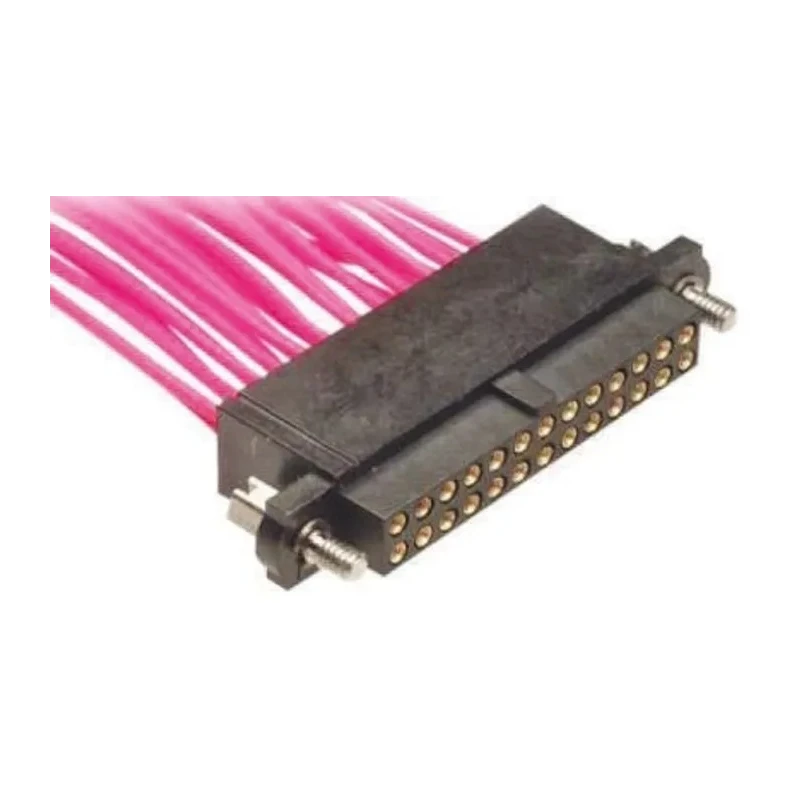

HARWIN Datamate J-Tek Series Straight Panel PCB Socket, 20-Contact, 2 Row, 2 mm Pitch, 12A, Gold Plated Contacts M80-4662005
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 120V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M80-4662005 |
| Mount Type | Panel |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Beryllium Copper Alloy |
| Series | Datamate J-Tek |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Datamate |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The socket uses crimp termination with gold-plated contacts for high reliability.
- Housing material is durable Polyphenylene Sulphide suitable for panel mounting.
- Designed as a board-to-board connector system with straight orientation.
- Suitable for operation from -55°C up to 125°C, ensuring performance in harsh environments.
- Contact material is high-quality beryllium copper alloy with a four-finger design for vibration resistance.
- Part of the Datamate J-Tek series, ideal for military, aerospace, and high-end applications.
- Connector housings are polarized to prevent mis-mating during installation.
- Includes jackscrews for secure mounting and reliable mating cycles.
Product Description
HARWIN M80-4662005 Datamate J-Tek Series Straight Panel PCB Socket is a rugged, high-reliability connector designed for demanding industrial, military, and aerospace applications. It features 20 female contacts configured in 2 rows with a compact 2 mm pitch, supporting a current rating of 12A and voltage up to 120V. The crimp termination provides secure wire connections with gold-plated beryllium copper alloy contacts that ensure excellent conductivity and resistance to corrosion.
The housing is made from sturdy Polyphenylene Sulphide, designed for panel mounting with polarization features to prevent incorrect mating. The straight orientation supports board-to-board connector systems. Operating temperature range from -55°C to 125°C allows usage in harsh and extreme environments, withstanding vibration and shock thanks to the four-finger contact design.
The Datamate J-Tek connectors are widely used in military and aerospace sectors, as well as telecommunications, medical devices, industrial equipment, robotics, and oil and gas industries. This connector series supports high reliability requirements in critical installations and COTS applications.
The product includes a housing with fitted jackscrews and rear-insertable crimp contacts. The design allows back potting and environmentally sealed connections to enhance durability and performance.
The socket ensures secure connections with jackscrews and polarized housings. Gold-plated beryllium copper four-finger contacts provide excellent signal integrity. Panel mount type with straight orientation for flexible system design.
Wide operating temperature range from -55°C to 125°C for demanding applications. Durable housing material resists chemicals and mechanical stress. Compatible with known industry equivalents and complies with relevant military and aerospace standards.
Suitable for applications in harsh environments including vibration and shock. Manufactured in the United Kingdom ensuring high production standards. Widely used in high-reliability military, aerospace, telecom, medical, and industrial fields.
Includes crimp contacts and secure mount jackscrews for reliable installation. Explore additional electronic components and PCB Sockets in EnvMart's comprehensive catalog for advanced connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 12A, making it suitable for various applications requiring reliable power connections.
It operates effectively within a temperature range of -55°C to 125°C, allowing use in harsh environments.
The socket features 20 female contacts configured in 2 rows with a compact 2 mm pitch.
The housing is made from durable Polyphenylene Sulphide, designed for panel mounting applications.
The crimp termination provides secure wire connections, enhancing reliability and performance in various applications.
The connector housings are polarized, which helps prevent mis-mating during installation.
The contacts are made from high-quality beryllium copper alloy, which is gold-plated for excellent conductivity and corrosion resistance.
This connector is widely used in military, aerospace, telecommunications, medical devices, and industrial equipment due to its high reliability.
It supports a board-to-board connector system, allowing for flexible design in electronic applications.
The product includes jackscrews for secure mounting and reliable mating cycles, enhancing installation integrity.
The voltage rating for this model is up to 120V, suitable for various electrical applications.
This product is manufactured in the United Kingdom, ensuring adherence to high production standards.
