JST GH Series Right Angle Surface PCB Header, 2 Contact(s), 1.25 mm Pitch, 1 Row, Shrouded SM02B-GHS-TB(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST GH Series Right Angle Surface PCB Header, 2 Contact(s), 1.25 mm Pitch, 1 Row, Shrouded SM02B-GHS-TB(LF)(SN)



Category PCB Connectors & Wire Housings Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	50V
Brand	JST
Orientation	Right Angle
Current	1A
Model	SM02B-GHS-TB(LF)(SN)
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Phosphor Bronze
Series	GH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	1.25mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features a shrouded 1 row design for protection and stability.
Constructed with polyamide housing and phosphor bronze contacts for durability.
Supports operating temperature range from -25°C up to 85°C.
Contact plating is tin for reliable solder termination.
Designed for surface mount with solder termination type.
Supports rated voltage of 50V and a current rating of 1A.
The right angle orientation allows compact PCB layouts and efficient wiring.
Fork shaped contacts improve insertion force and connection security.

Product Description

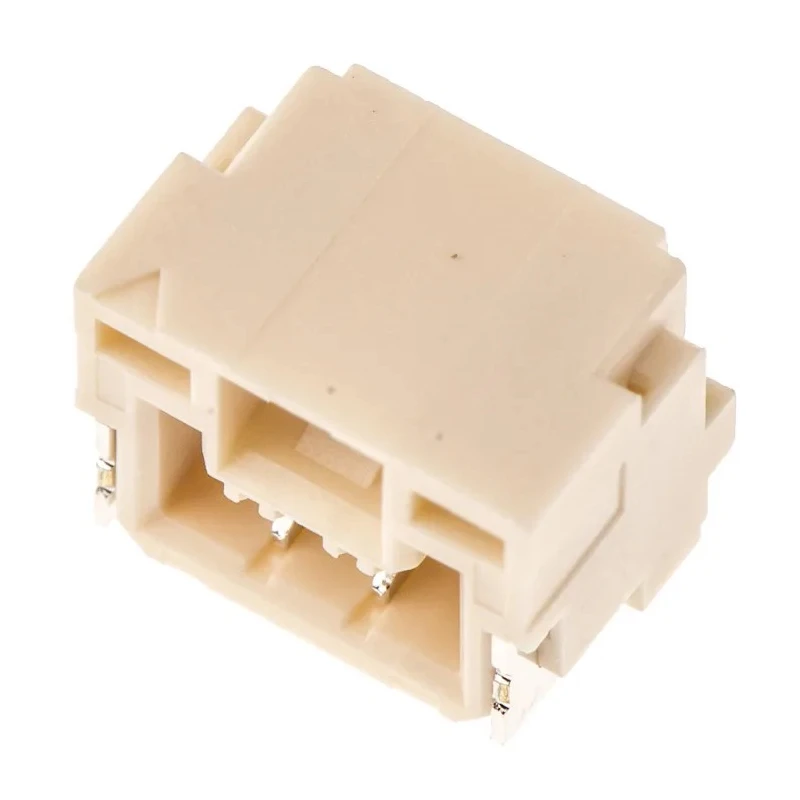

The JST SM02B-GHS-TB(LF)(SN) is a right angle surface mount PCB header from the GH series designed for wire-to-board connections. It features 2 contacts with a 1.25 mm pitch arranged in a single row. The shrouded housing made from polyamide provides protection and mechanical stability, making this connector suitable for use in small electronics such as PDP and LCD displays or other compact electronic equipment.

Constructed with phosphor bronze contacts plated with tin, the header offers reliable electrical performance capable of handling 1A current at voltages up to 50V. The fork-shaped contacts supported by grooves prevent deformation during insertion and removal, ensuring a secure, low insertion force connection.

Operating temperature ranges from -25°C to 85°C, making it suitable for various industrial and electronic environments. This connector is designed for surface mounting on PCBs and uses solder termination for secure attachment.

The JST GH Series includes a locking structure that ensures the contacts and connector parts remain securely mated during operation. This model is manufactured in Japan to high standards of quality and reliability.

Shrouded design protects contacts and ensures stable connections. 1.25 mm pitch with right angle orientation for compact PCB layout. Durable polyamide housing with tin-plated phosphor bronze contacts. Rated for 50V and 1A operating conditions.

Low insertion force with fork-shaped contacts and groove support. Suitable for small electronics, display panels, and industrial equipment. Wide operating temperature range from -25°C to 85°C. Surface mount type with solder termination for secure PCB fixing.

Manufactured in Japan to exacting quality standards. Explore EnvMart's extensive catalogue of JST connectors and other high-quality PCB components for electronic, industrial, and manufacturing applications.

Explore more products in our PCB Connectors & Wire Housings category.
