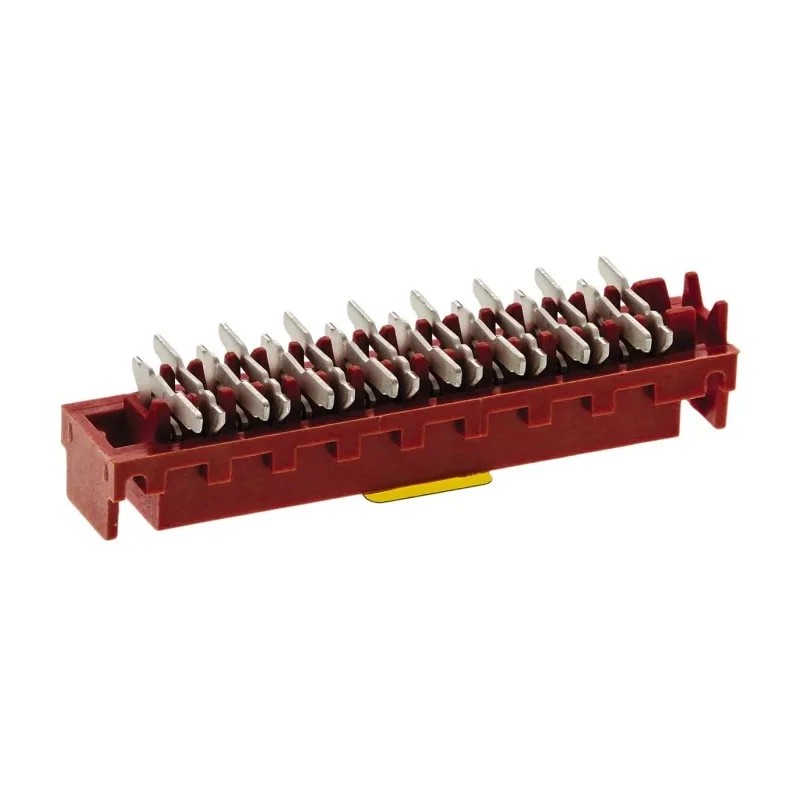

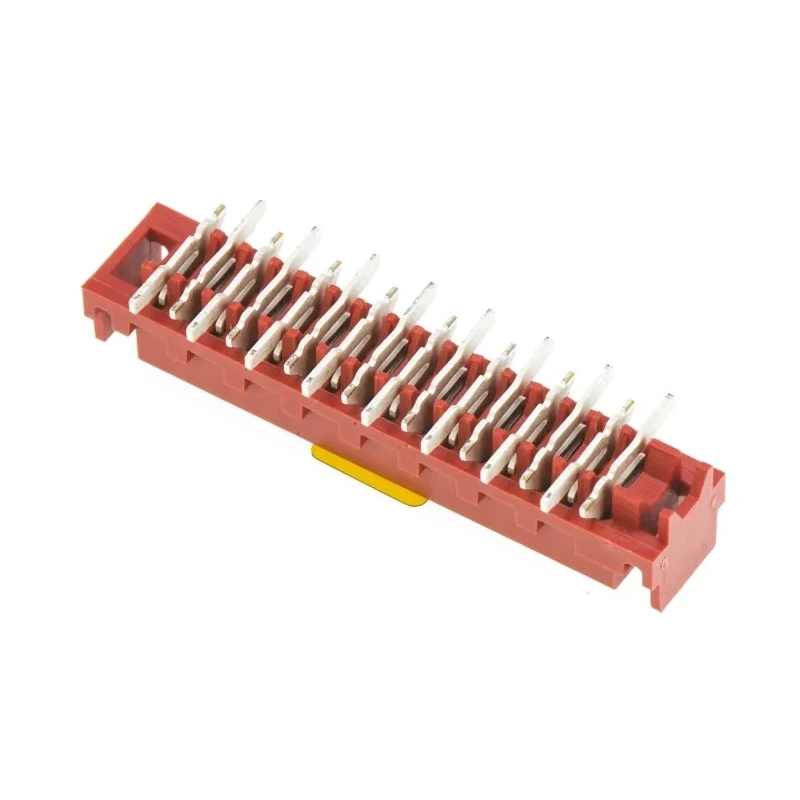

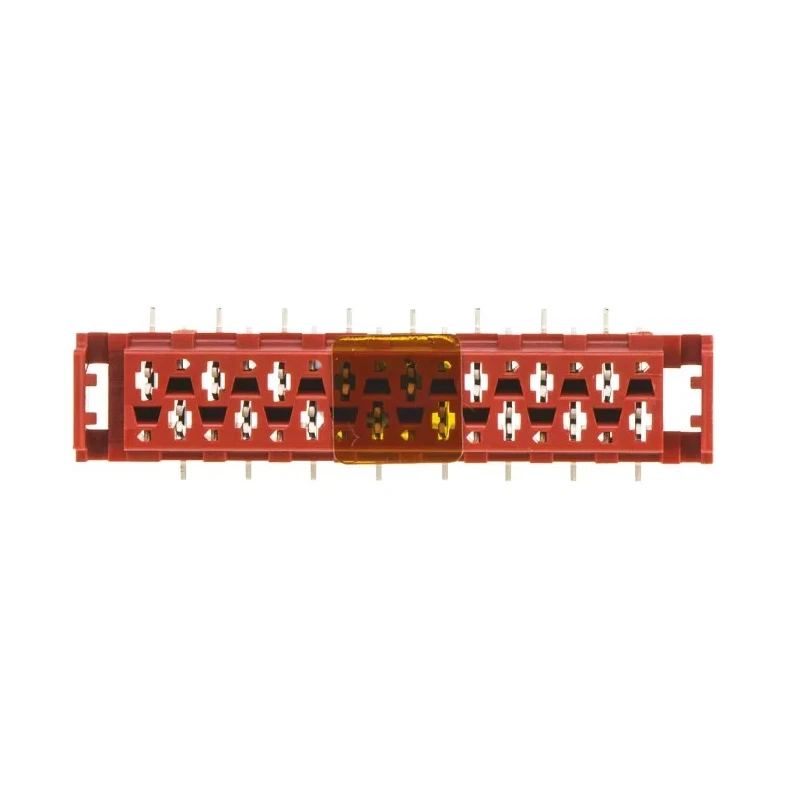

TE Connectivity Micro-MaTch Series Straight Surface PCB Socket 16-Contact 2 Row 2.54 mm Pitch Solder 8-338069-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 230V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.5A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Bronze |
| Series | Micro-MaTch |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Female-On-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Compact and space-saving design suitable for board-to-board connections.
- 16 female contacts arranged in 2 rows with 2.54 mm pitch for reliable connectivity.
- Constructed with polyamide housing and bronze contacts plated with tin for durability.
- Supports a current rating of 1.5 A and voltage rating of 230 V.
- Operates safely within -40°C to 105°C temperature range.
- Features a contact spring system to prevent fretting corrosion and ensure gas-tight connections.
- Polarized to prevent mismating and available with locking latches for secure mating.
- Ideal for electronics applications including production equipment, control units, automotive systems, and audio devices.
Product Description
TE Connectivity 8-338069-6 Micro-MaTch Series Straight Surface PCB Socket is a precision female on-board connector designed for robust board-to-board and wire-to-board applications. It features 16 contacts arranged in 2 rows with a 2.54 mm pitch, optimized for space-saving SMT surface mounting with solder termination.
The polyamide housing provides mechanical strength while bronze contacts plated with tin ensure excellent conductivity and durability. The integrated contact spring system guarantees a fretting corrosion resistant, gas-tight connection by preventing movement at the contact interface. This connector series supports currents up to 1.5 A and voltages up to 230 V, making it well-suited for diverse industrial and commercial electronics applications including production and material handling equipment, control units, automotive audio, set top boxes, navigation, and dashboard systems.
Operating efficiently from -40°C to +105°C, this series offers reliable performance in harsh operating environments. Polarization features and locking latches secure correct and stable mating to prevent connector damage or failure.
Compact and space-saving design suitable for board-to-board connections. 16 female contacts arranged in 2 rows with 2.54 mm pitch for reliable connectivity. Constructed with polyamide housing and bronze contacts plated with tin for durability.
Supports a current rating of 1.5 A and voltage rating of 230 V. Operates safely within -40°C to 105°C temperature range. Features a contact spring system to prevent fretting corrosion and ensure gas-tight connections. Polarized to prevent mismating and available with locking latches for secure mating.
Ideal for electronics applications including production equipment, control units, automotive systems, and audio devices.
This connector is a trusted choice for precision electronic manufacturing, promising reliable electrical and mechanical performance in demanding environments. EnvMart offers a wide range of PCB Sockets and connectors suitable for various industrial, laboratory, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1.5 A and a voltage rating of 230 V.
It operates safely within a temperature range of -40°C to 105°C.
It features 16 female contacts arranged in 2 rows.
The pitch size is 2.54 mm, optimized for space-saving surface mounting.
The housing is made of polyamide, and the contacts are bronze plated with tin for conductivity.
The contact spring system prevents fretting corrosion and ensures gas-tight connections by minimizing movement at the contact interface.
Yes, it is polarized to prevent mismating and is available with locking latches for secure mating.
It uses surface mounting with solder termination.
It is ideal for various electronics applications including production equipment, control units, automotive systems, and audio devices.
The orientation of this model is straight, designed for board-to-board connections.
The country of origin for this PCB socket is India.
It belongs to the board-to-board connector system, specifically designed for robust applications.
