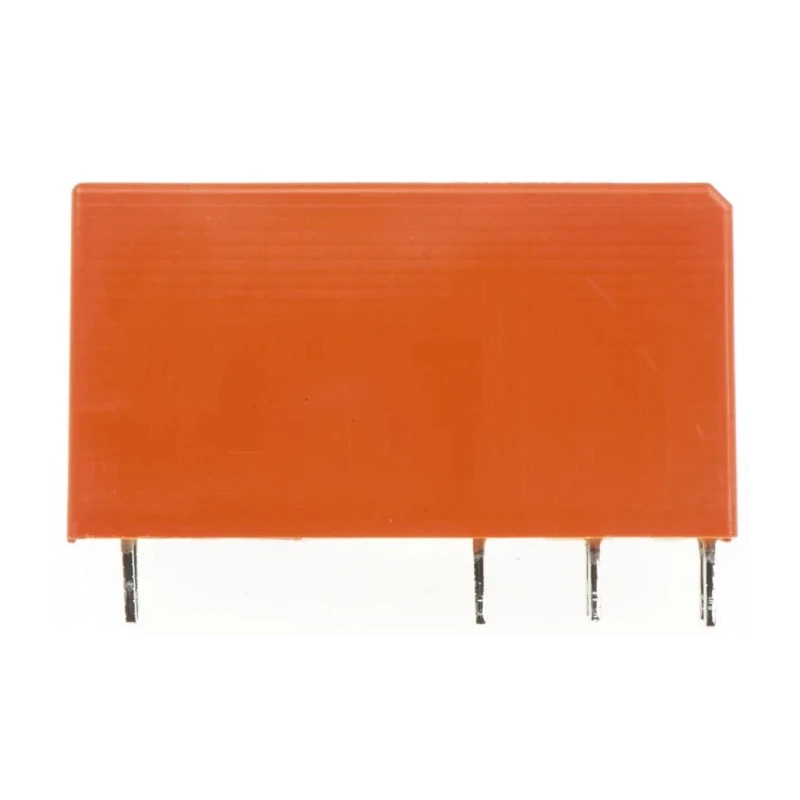

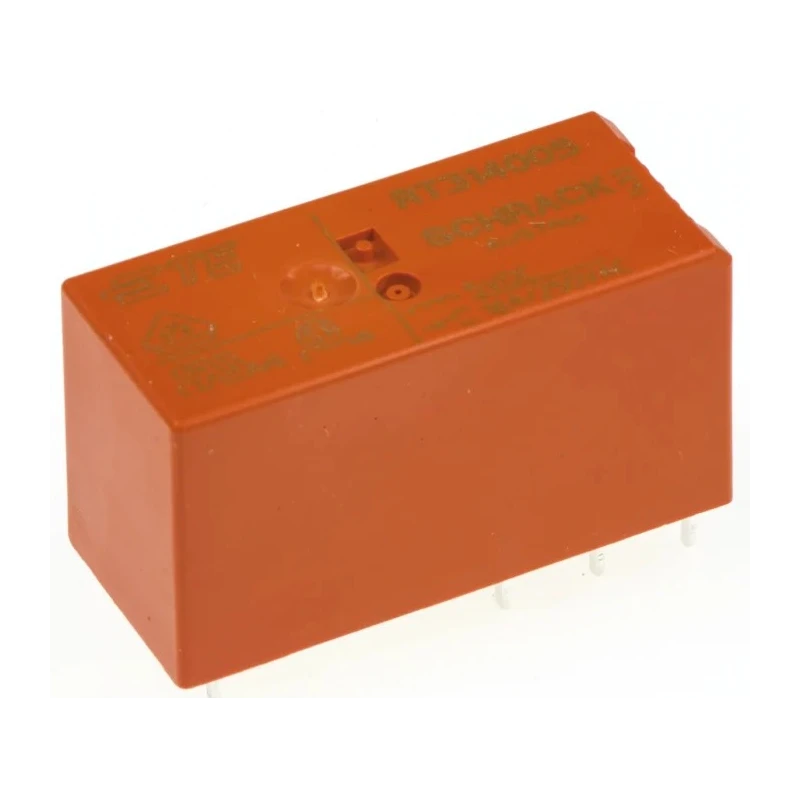

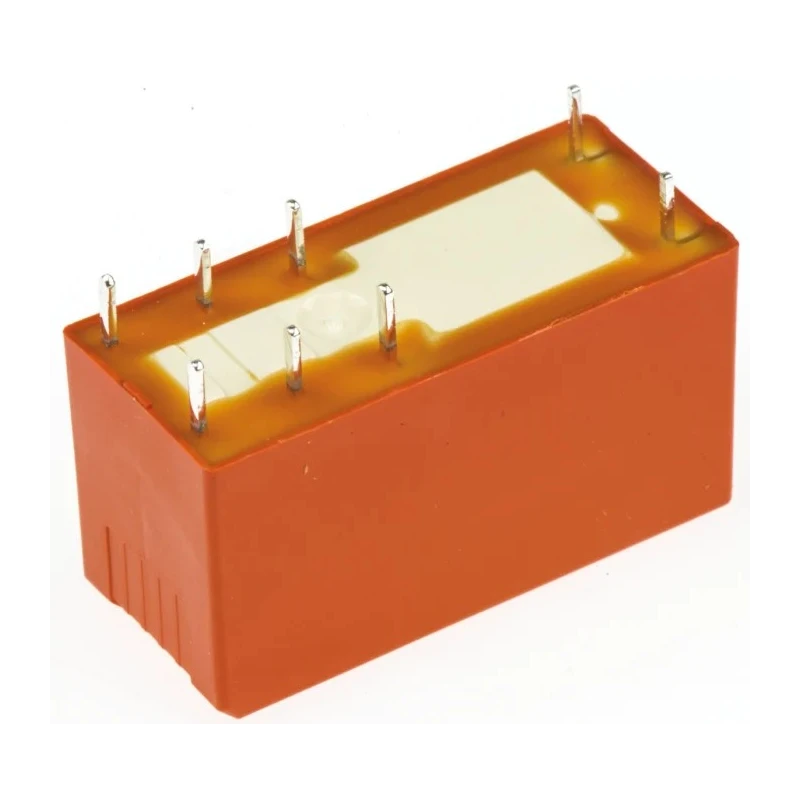

TE Connectivity Power Relay 5V DC Coil, 16A Switching Current, SPDT PCB Mount RT314005

TE Connectivity RT314005 Power Relay is a high-quality PCB mounted relay designed for industrial and automation use. Featuring a 5V DC coil voltage and a robust switching current of 16A, it provides reliable performance in various applications including interface control, security lighting, heating systems, and domestic automation.

This relay employs a SPDT (Single Pole Double Throw) contact configuration to provide versatile switching options. It uses silver nickel alloy contacts, which ensure excellent conductivity and durability over long operational cycles.

The RT314005's coil power consumption is minimal at 250mW with a coil resistance of 62 ohms, optimized for energy efficiency. The device supports a switching AC voltage rating of 400V, making it suitable for controlling higher-voltage circuits safely. Its operating temperature range from -40°C to 85°C allows usage in challenging environmental conditions.

The relay is built to industry standards including VDE, RoHS compliance, and IEC 60335-1 for safety and environmental considerations. With a compact footprint of 29mm by 12.7mm by 15.7mm, it integrates seamlessly into printed circuit boards using solder pin terminals designed for through-hole mounting.

The RT314005 is part of the RT1 Series, known for flux proof pinning and reliable mechanical stability. It is ideal for electronics manufacturing, industrial automation, HVAC control systems, and other machinery requiring precise power switching.

5V DC coil voltage with low coil power consumption of 250mW. 16A switching current rating suitable for diverse electrical circuits. SPDT contact configuration for multiple circuit control options. Through-hole PCB mount with solder terminal type.

Operating temperature from -40°C to 85°C for reliability in various environments. Switching AC voltage up to 400V ensures compatibility with high voltage circuits. Silver nickel alloy contacts for longevity and consistent electrical performance.

Compliance with VDE, RoHS, and IEC 60335-1 safety and quality standards. Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height. Manufactured in Austria to meet high quality production standards. Discover more products like this in the Power Relay category at EnvMart for your industrial electronics and automation needs.
