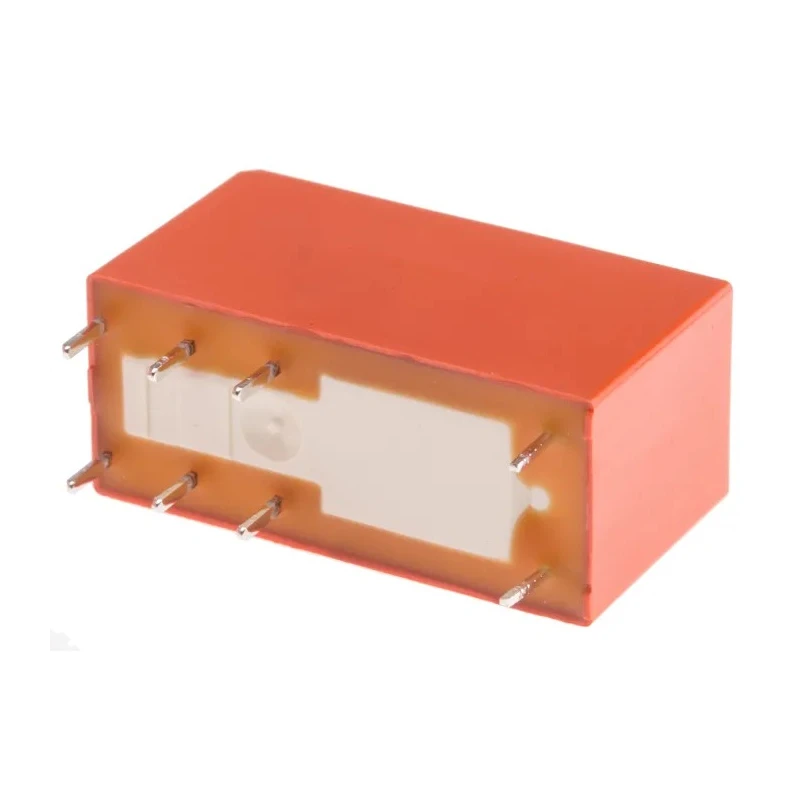

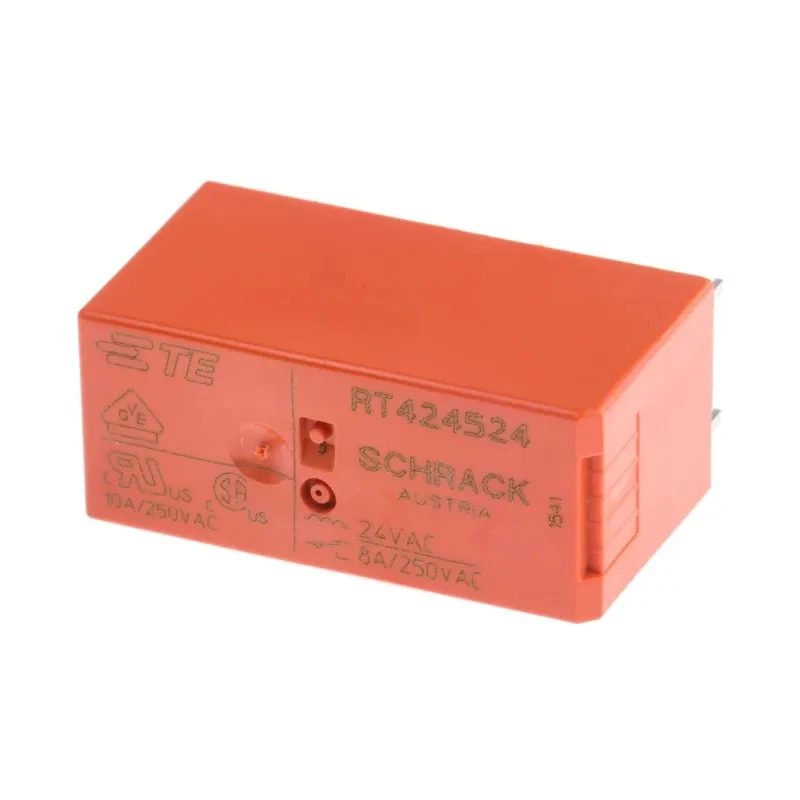

TE Connectivity Power Relay PCB Mount 24V AC Coil 8A Switching Current DPDT RT424524
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT424524 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT2 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 350Ω |
| Coil Voltage | 24V ac |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Designed for PCB mounting with solder terminal type.
- Double pole double throw (DPDT) contact configuration.
- Operates with a coil voltage of 24V AC and coil resistance of 350 ohms.
- Switching AC voltage capability up to 400V AC and switching power of 2 kVA.
- Silver nickel alloy contact material for durability and reliability.
- Operating temperature range from -40°C to 70°C.
- Complies with IEC 60335-1, RoHS and VDE standards.
- Coil power consumption of 250mW ensures low energy usage.
Product Description
TE Connectivity RT424524 power relay features a 24V AC coil with an 8 amp switching current, configured as a double pole double throw (DPDT) device designed specifically for PCB mounting applications. This relay belongs to the RT2 series, known for its robust design and reliable performance in industrial and automation environments.
The RT424524 model includes solder terminal types and a coil resistance of 350 ohms, delivering efficient energizing with low coil power consumption of 250mW. The relay is capable of switching AC voltages up to 400V with a power rating of 2 kVA, suitable for various control and switching applications.
Its compact physical dimensions of 29mm in length, 15.7mm in height, and 12.7mm in width facilitate easy integration into printed circuit boards, optimizing space without compromising functionality. The contact material comprises silver nickel alloy, offering excellent conductivity and corrosion resistance for long-lasting operational reliability.
The relay operates efficiently within a temperature range of -40°C to 70°C making it suitable for diverse environmental conditions in industrial, automation, security lighting, heating systems, and domestic appliances. Compliance with IEC 60335-1, RoHS, and VDE standards guarantees high safety and quality standards.
This product, manufactured in Austria, is ideal for applications requiring precise control switching on PCB boards and supports industrial, commercial, and automation usages. The RT series relays are known for their flux-proof construction, ensuring durability and consistent electrical performance over time.
Designed for PCB mounting with solder terminal type. Double pole double throw (DPDT) contact configuration. Operates with 24V AC coil voltage. Switching current rating of 8A for reliable power handling. Switching AC voltage up to 400V and switch power 2 kVA.
Compact size allows easy PCB integration. Silver nickel alloy contact material for durability. Wide operating temperature range from -40°C to 70°C. Low coil power consumption of 250mW. Complies with IEC 60335-1, RoHS, and VDE standards.
Browse EnvMart for more TE Connectivity Power Relays and related electrical components to meet your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 8A, allowing it to handle significant power loads effectively.
This model operates with a coil voltage of 24V AC, making it suitable for various applications requiring AC voltage control.
The relay measures 29mm in length, 15.7mm in height, and 12.7mm in width, facilitating easy integration into PCB designs.
It is capable of switching AC voltages up to 400V AC, which supports a variety of control applications.
This model features a double pole double throw (DPDT) contact configuration, allowing for versatile switching options.
The coil resistance of this relay is 350 ohms, which is designed to ensure efficient energizing.
The coil power consumption is 250mW, ensuring low energy usage during operation.
The contact material is silver nickel alloy, which provides good conductivity and corrosion resistance.
It operates efficiently within a temperature range of -40°C to 70°C, making it suitable for diverse environmental conditions.
This relay complies with IEC 60335-1, RoHS, and VDE standards, ensuring adherence to safety and quality regulations.
It is designed for PCB mounting with solder terminal types, allowing for straightforward installation on printed circuit boards.
The relay is manufactured in Austria, ensuring compliance with European manufacturing standards.
