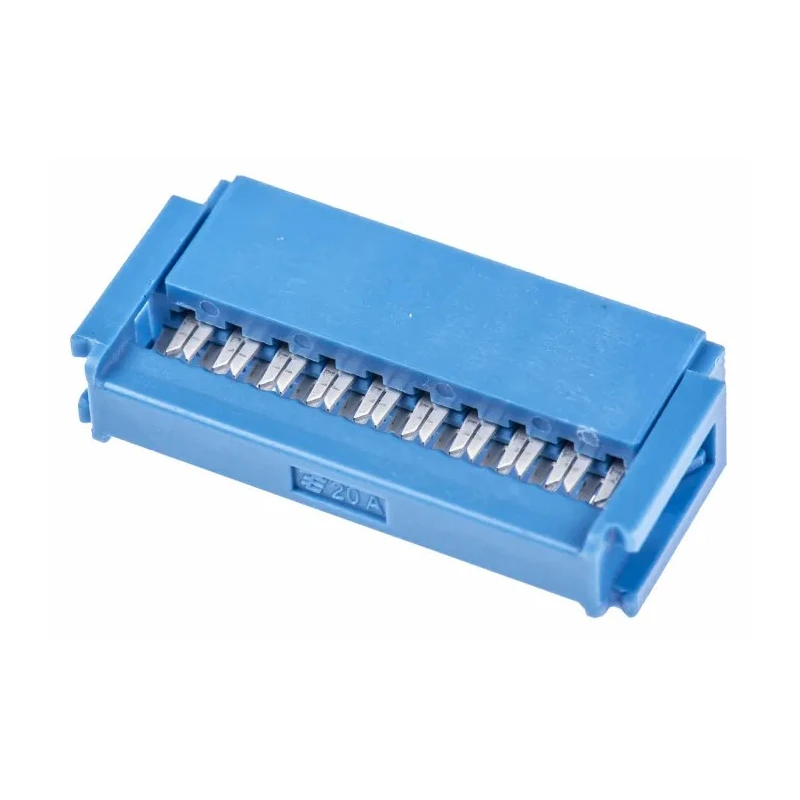

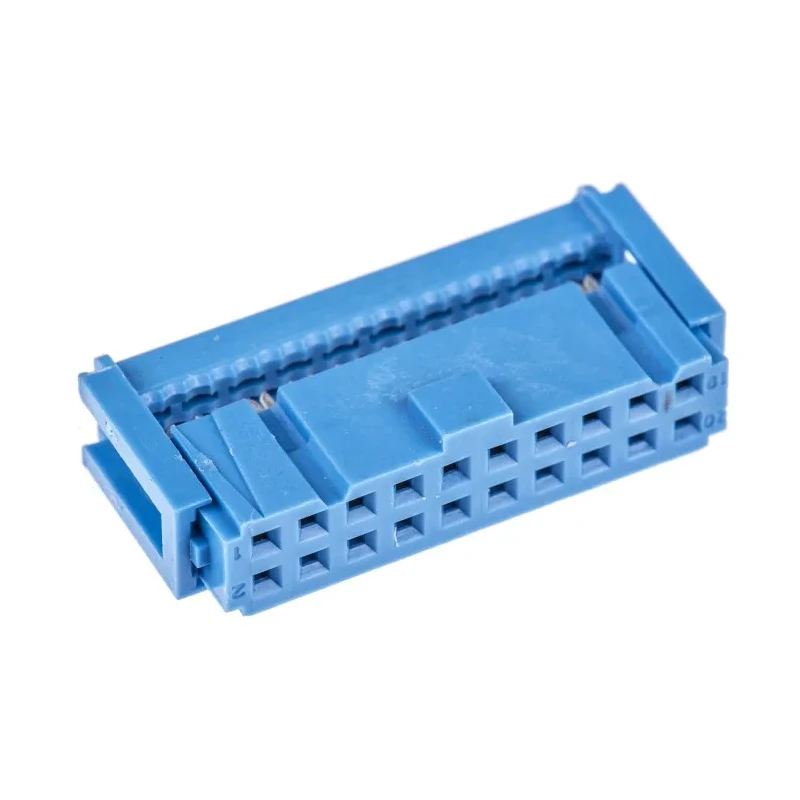

TE Connectivity 20-Way IDC Connector Female for Cable, 2 Row 2-1658527-3

TE Connectivity 2-1658527-3 IDC Connector is a 20-way, female connector designed for cable mounting with 2 rows of contacts, delivering a current rating of 1A and voltage rating up to 1000V. It features a shrouded design with a right-angle orientation, making it ideal for compact assemblies and electronic component integrations.

The connector contacts are made from high-quality beryllium copper and are plated with gold over nickel to ensure reliable conductivity and resistance to corrosion. Its housing is manufactured using UL 94V-0 rated thermoplastic, providing robust flame resistance and mechanical stability.

This IDC connector belongs to the AMP-LATCH 622 series, utilizing single slot, flat tuning fork style IDC contacts with a standard 2.54mm contact spacing, optimally compatible with 26-28 AWG or stranded PVC insulated flat ribbon cables. Its design facilitates efficient and secure cable assemblies for industrial electronics and power connectivity.

With an operating temperature range from -55°C to 125°C, this product supports usage in diverse environmental conditions, including industrial, manufacturing, and electronic applications. The mating connection is female, ensuring compatibility with corresponding male connectors, while its shrouded construction enhances protection against electrical shorts.

Key features include a robust locking mechanism for secure connections, a right-angle orientation for space optimization, and compliance with the quality standards expected in high-reliability electronics manufacturing. This connector is suitable for use in applications such as industrial automation, telecommunications, consumer electronics, and automotive wiring harnesses.

20 contacts arranged in 2 rows for secure and reliable connections. Cable mount type with right-angle connection orientation. Beryllium copper contacts with gold-over-nickel plating for enhanced conductivity. Thermoplastic housing rated UL 94V-0 for flame resistance and durability.

Compatible with 26-28 AWG or stranded PVC insulated ribbon cables. Operating temperature range from -55°C to 125°C supports varied environments. Rated for 1A current and 1000V voltage providing strong electrical performance.

Part of AMP-LATCH 622 series providing standardized and reliable IDC connections. Shrouded female connector design for safety and performance. Explore more IDC Connectors and related electronic components at EnvMart for reliable industrial and electronics assembly solutions.
