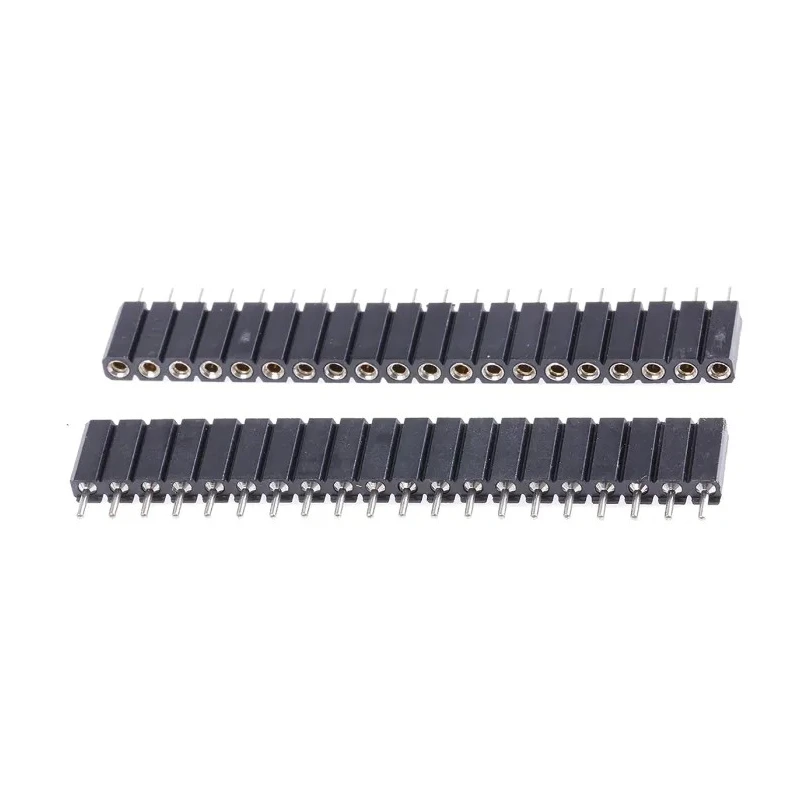

ASSMANN WSW AW 127 Series Straight Through Hole PCB Socket, 20-Contact, 1 Row, 2.54 mm Pitch, Solder AW 127-20/Z-HP

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW AW 127 Series Straight Through Hole PCB Socket, 20-Contact, 1 Row, 2.54 mm Pitch, Solder AW 127-20/Z-HP

Name: ASSMANN WSW AW 127 Series Straight Through Hole PCB Socket, 20-Contact, 1 Row, 2.54 mm Pitch, Solder AW 127-20/Z-HP
Brand: ASSMANN WSW
SKU: 125970
Price: 3.59 USD
Availability: InStock



Category PCB Socket Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	100V
Brand	ASSMANN WSW
Orientation	Straight
Current	12A
Model	AW 127-20/Z-HP
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Bronze
Series	AW 127
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	20
Contact Gender	Female

Key Features

This PCB socket features 20 contacts arranged in a single row for reliable board-to-board connection.
The pitch of 2.54 mm ensures compatibility with standard PCB layouts.
Contacts are made from bronze material with tin plating to provide durable conductivity.
The housing is constructed from polybutylene terephthalate for robust mechanical stability.
It supports a current rating of 12 A and a voltage rating of 100 V for efficient electrical performance.
Designed for through-hole mounting, it offers secure and reliable solder termination.
Operating temperature ranges from -40°C to a maximum of 105°C, suitable for diverse environments.
The contact gender is female and the socket features machined pins for quality connections.

Product Description

ASSMANN WSW AW 127-20/Z-HP PCB Socket is a precision-engineered connector designed specifically for board-to-board applications with straight through hole mounting. It features a single row of 20 female contacts spaced at a standard pitch of 2.54 mm, ensuring compatibility with a wide range of printed circuit boards.

The socket’s housing is made from polybutylene terephthalate, providing excellent mechanical strength, chemical resistance, and stability under thermal cycling. The bronze contacts with tin plating secure consistent electrical conductivity and long-term reliability in industrial and electronic environments.

With a current rating of 12 amperes and voltage rating of 100 volts, this socket is suited for moderate power electronics and control applications. The operating temperature range from -40°C to 105°C accommodates typical industrial, commercial, and laboratory conditions.

Designed for through hole solder mounting, the AW 127-20/Z-HP facilitates robust mechanical attachment and ease of assembly on PCBs. The straight orientation simplifies design layouts and supports effective connector mating.

20 contacts arranged in one row for reliable connections. 2.54 mm pitch standard spacing for PCB compatibility. Polybutylene terephthalate housing ensures durability. Bronze contacts with tin plating deliver conductive efficiency.

Rated for 12 A current and 100 V voltage applications. Operating temperature range from -40°C to 105°C. Female contact gender with machined pins. Through hole mounting provides secure solder connection. Ideal for industrial, electronics, laboratory, and manufacturing uses.

Manufactured in China following standard quality practices.

This PCB Socket is an essential component for designers and engineers requiring reliable and efficient board-to-board electrical connections, and can be seamlessly integrated into various electronic projects and industrial equipment. For further options and compatible accessories, explore the Electronics Components section of EnvMart.
