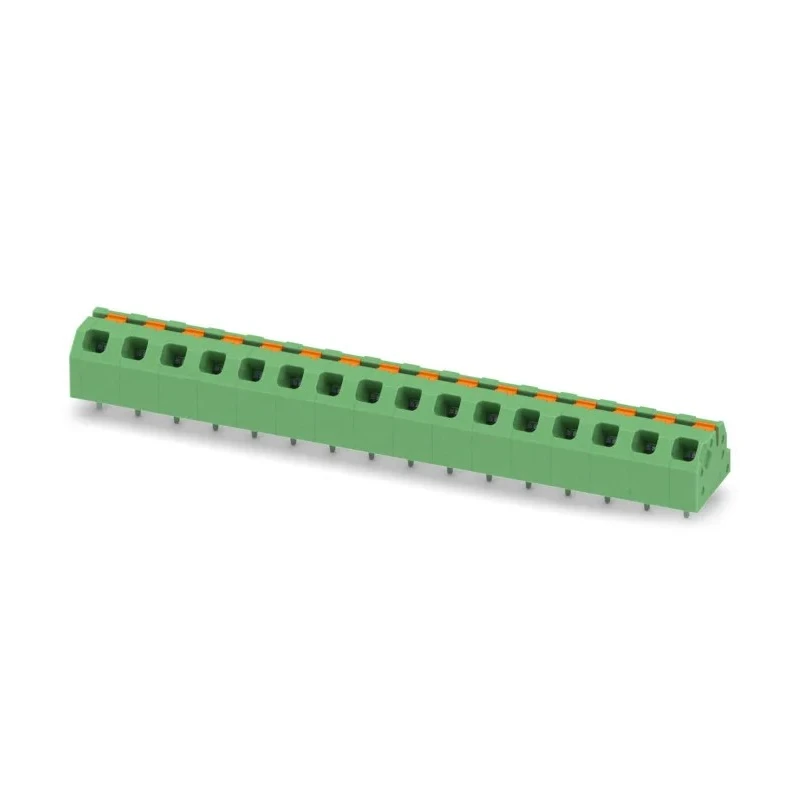

Phoenix Contact SPTAF 1/16-5.0-IL Series Angled Wave Soldering Mount PCB Terminal Block, 16 Contacts, 5 mm Pitch 1862563

Name: Phoenix Contact SPTAF 1/16-5.0-IL Series Angled Wave Soldering Mount PCB Terminal Block, 16 Contacts, 5 mm Pitch 1862563
Brand: PHOENIX CONTACT
SKU: 214626
Price: 6.73 USD
Availability: InStock



Category PCB Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	India
Voltage	320V
Brand	Phoenix Contact
Orientation	Angled
Current	16A
Model	1862563
Mount Type	Wave Soldering Mount
Housing Material	Polyamide
Series	SPTAF 1/16-5.0-IL
Number of Rows	1
Pitch	5mm
Standards/Approvals	EU RoHS, cULus Recognised
Number of Contacts	16
PCB Terminal block, nominal current	16 A, nom. voltage: 320 V, pitch: 5 mm, number of positions: 16, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green

Key Features

Supports nominal current of 16 amperes at a voltage rating of 320 volts.
Constructed with durable polyamide housing for enhanced insulation and mechanical stability.
Features push-in spring connection technology for time-saving installation without the need for tools.
Angled conductor to PCB connection at 45 degrees facilitates compact PCB designs.
Green color coded actuation lever ensures intuitive use and contact stability over long term.
Includes integrated test options for quick and convenient electrical testing.
Complies with EU RoHS directives and is cULus Recognised for safety and environmental standards.

Product Description

Phoenix Contact 1862563 is a high-quality PCB Terminal Block from the SPTAF 1/16-5.0-IL Series, designed for industrial and commercial electronics applications requiring dependable electrical connections.

With a 5 mm pitch and 16 contacts, this angled wave soldering mount terminal block supports a nominal current of 16 A and nominal voltage of 320 V. Its polyamide housing provides excellent insulation and mechanical protection while maintaining a compact footprint suitable for space-constrained PCB layouts.

The push-in spring connection method allows for time-saving installation without requiring special tools, offering defined contact force that ensures long-term stability. The conductor to PCB connection direction is set at a 45° angle to optimize conductor routing.

Color-coded green actuation levers facilitate intuitive usage and help maintain consistent contact force over time. An integrated test option is incorporated, enabling fast and convenient electrical testing of each contact point without disruption.

This terminal block meets important standards, including EU RoHS and cULus Recognitions, affirming its compliance with environmental and safety regulations in industrial and electronic manufacturing environments.

Supports nominal current of 16 amperes at a voltage rating of 320 volts. Durable polyamide housing for optimal insulation and mechanical strength. Push-in spring connection technology enables tool-free, time-efficient wiring.

Angled (45°) wiring orientation for compact and organized PCB applications. Integrated test points for easy verification of circuit connections. Compliant with EU RoHS and cULus standards for quality assurance. Compact design suitable for various industrial, laboratory, and manufacturing settings.

Use the Phoenix Contact 1862563 PCB Terminal Block for reliable power distribution and secure wire connections in industrial, electronic component assembly, and automation systems. This product is ideal for applications requiring high density and high current connectivity solutions.
