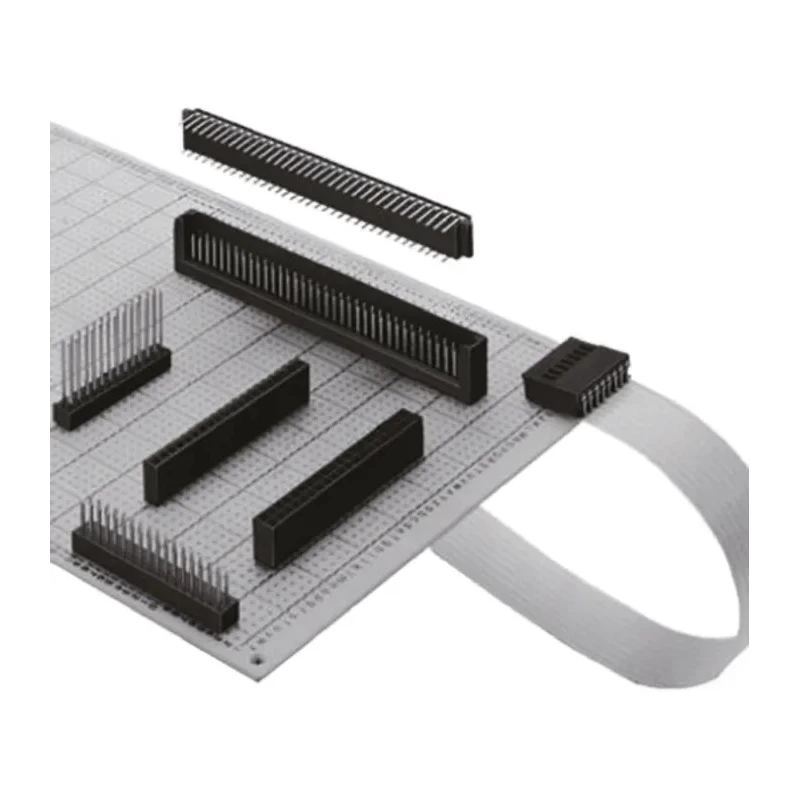

Hirose PCB Socket Board-to-Board 34-Contact, 2 Row, 2.54 mm Pitch, 12A, 300V, Through Hole Mount HIF3H

Hirose's HIF3H Series PCB Socket (Model HIF3H-34DA-2.54DSA(61)) is a high-quality 34-contact, 2-row connector designed for board-to-board electrical connections using through hole mounting technology. This PCB socket comes with a 2.54 mm pitch and features a straight orientation to ensure secure and effective contact alignment. It is engineered to support currents up to 12A and voltages up to 300V, making it suitable for a wide range of industrial, electronic, and office automation uses.

The socket housing is constructed from black Polybutylene Terephthalate (PBT) with UL94V-0 flammability rating, ensuring excellent durability and safety during operation. Contacts are made of bronze material with selective gold plating to provide superior conductivity and corrosion resistance. The connector includes polarization guides, enhancing installation accuracy by preventing incorrect insertion, except in the 10-contact variants.

The operating temperature range of this PCB socket is from -55°C to 85°C, enabling reliable performance in varying ambient temperatures. Typical applications encompass computers, electronic equipment, termination equipment, office automation machines, and other industrial electronic devices requiring robust board-to-board interconnections.

Manufactured in Japan, the HIF3H series PCB socket represents a high standard in connector reliability and mechanical precision. It is a part of the comprehensive Hirose HIF3H product range designed for diverse PCB connectivity solutions.

The socket supports a 34-contact, 2-row configuration with a 2.54 mm pitch spacing. Utilizes solder termination ensuring firm and stable connections in through hole mounting. Gold-plated bronze contacts guarantee high conductivity and corrosion resistance.

Housing meets UL94V-0 fire safety standard made from black PBT material. Equipped with polarization guides to prevent mis-insertion during assembly. Rated for 12A current and 300V voltage capability. Suitable for use in industrial electronics, computers, and office automation equipment.

This HIF3H PCB socket series is ideal for applications requiring secure, reliable, and durable board-to-board electrical connection. For more industrial connectors and PCB socket solutions, explore the wide category of PCB Sockets on EnvMart.
