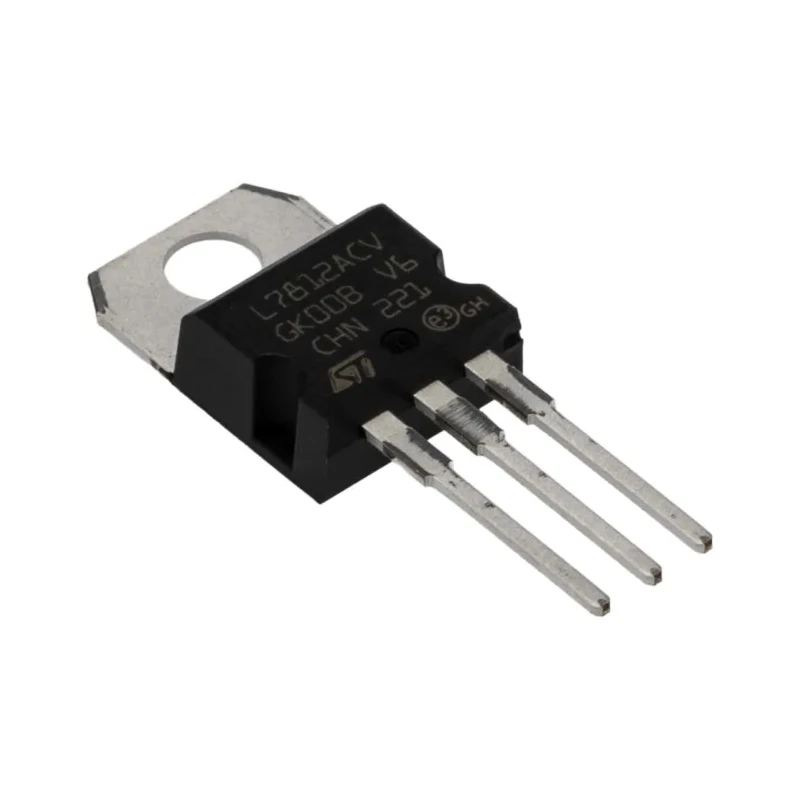

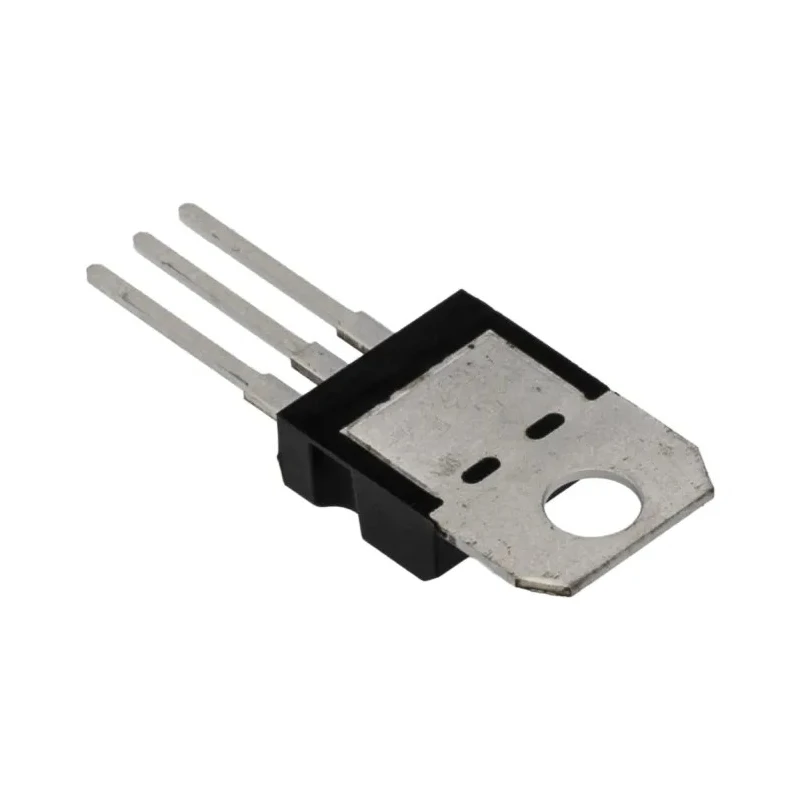

STMicroelectronics 5-Channel Linear Voltage Regulator 12V 1A TO-220 3-Pin L7812ACV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics, 5-Channel Linear, Voltage Regulator, 1 A, 12V, TO |
| Brand | STMicroelectronics |
| Height | 9.15mm |
| Length | 10.4mm |
| Model | L7812ACV |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Output type | Fixed |
| Series | L78xx |
| Output Current | 1A |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Load Regulation | 100 mV |
| Minimum Operating Temperature | 0°C |
| Polarity | Positive |
| Regulator Type | Linear |
| Number of outputs | 5 |
| Maximum Input Voltage | 35V |
| Output Voltage | 12V |
| Quiescent Current | 4.4mA |
| Line Regulation | 120 mV |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
Key Features
- Provides linear voltage regulation for stable power supply.
- Supports output current up to 1 ampere.
- Features five output channels for multiple device regulation.
- Includes built-in thermal overload and current limiting protection.
- Packaged in a TO-220 through-hole mount format for easy PCB integration.
- Operates reliably in temperature range of 0°C to 150°C.
- Complies with RoHS environmental standards.
- Designed for use in power management and electronic applications requiring stable voltage regulation.
Product Description
STMicroelectronics L7812ACV 5-Channel Linear Voltage Regulator provides fixed 12V output voltage with a maximum output current of 1A. It features a TO-220 3-pin package suitable for through-hole mounting, making it ideal for various electronics and industrial power management applications.
This linear voltage regulator from the L78xx series ensures reliable voltage regulation by eliminating single point regulation issues with local on-card regulation capabilities. It supports multiple channels, enhancing versatility for powering several output loads.
Engineered with robust thermal overload and output transition safe operating area (SOA) protection, the device minimizes risks of damage under adverse electrical conditions. It offers line regulation of 120mV and load regulation of 100mV, delivering stable performance under varying input and output conditions.
The regulator operates within a wide temperature range from 0°C to 150°C and accommodates a maximum input voltage of 35V. Compliant with RoHS standards, it supports environmentally friendly manufacturing and utilization.
This component is particularly suited for industrial electronics, power management systems, laboratory equipment, and manufacturing setups where constant and reliable 12V power supply is critical. The 5 output channels extend functionality in complex circuit designs.
Provides linear voltage regulation for stable power supply. Supports output current up to 1 ampere. Features five output channels for multiple device regulation. Includes built-in thermal overload and current limiting protection.
Packaged in a TO-220 through-hole mount format for easy PCB integration. Operates reliably in temperature range of 0°C to 150°C. Complies with RoHS environmental standards. Designed for use in power management and electronic applications requiring stable voltage regulation.
Utilizes positive polarity and fixed output voltage type for consistent performance. Explore more high-quality Voltage Regulators and power management ICs on EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a fixed output voltage of 12V with a maximum output current of 1A.
The maximum input voltage for this linear voltage regulator is 35V.
The dimensions of the TO-220 package are 10.4mm in length, 4.6mm in width, and 9.15mm in height.
It operates reliably within a temperature range of 0°C to 150°C.
This unit features five output channels for multiple device regulation.
It includes built-in thermal overload and current limiting protection to minimize risks of damage.
The line regulation for this model is specified at 120mV.
The load regulation is 100mV, ensuring stable performance under varying loads.
The quiescent current for this model is 4.4mA.
Yes, it complies with RoHS environmental standards.
It is designed for through-hole mounting, suitable for easy PCB integration.
This voltage regulator is designed for use in power management and electronic applications requiring stable voltage regulation.
