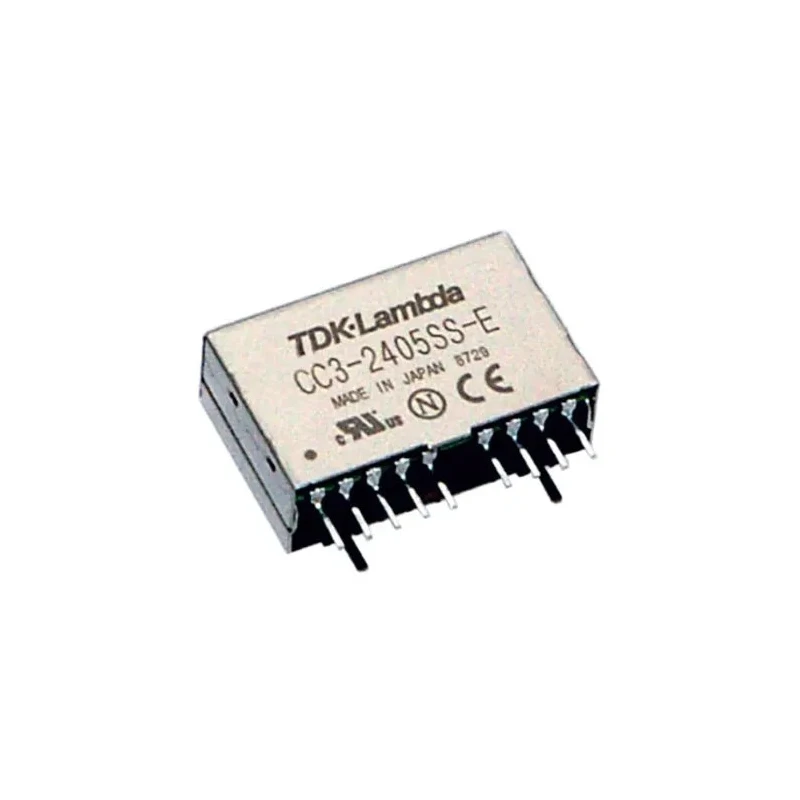

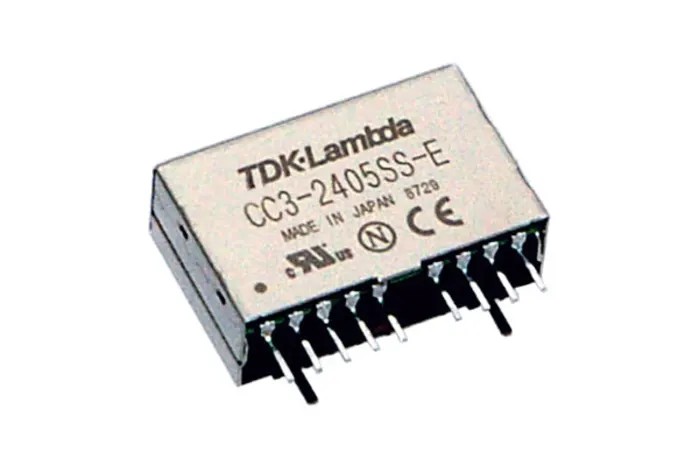

TDK-Lambda CC-E Series DC/DC Converter 12V DC, 250mA, 36V/18V Input, 3W, Through Hole, -40°C to 85°C, CC3-2412SS-E
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | Converters / DC-DC Converters TDK-Lambda CC-E DC/DC Converter, 12V dc/ 250 mA, 3 |
| Brand | TDK-Lambda |
| Efficiency | 0.82% |
| Length | 26.16mm |
| Model | CC3-2412SS-E |
| Depth | 16.6mm |
| Gross Weight | 4.5g |
| Width | 22.8mm |
| Mount Type | Through Hole |
| Series | CC-E |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Number of Pins | 7 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 250mA |
| Isolation Voltage | 500V |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Compact single-output DC-DC converter in CC-E series.
- Delivers regulated 12V DC output at 250mA maximum current.
- Accepts wide input voltage range from 18V to 36V DC.
- Maximum output power of 3W for various electronic applications.
- Efficient SIP through-hole mounting with 7 pins for easy PCB integration.
- Operates reliably between -40°C and 85°C ambient temperatures.
- High isolation voltage of 500V between input and output enhances safety.
- RoHS compliance ensures eco-friendly manufacturing.
Product Description
The TDK-Lambda CC3-2412SS-E is an ultra-compact, high-efficiency DC/DC converter from the CC-E series, engineered for industrial, commercial, and telecommunications applications requiring regulated DC power. Featuring a SIP (Single Inline Package) and through-hole design, this converter integrates easily into PCB layouts and space-constrained devices, providing reliable power conversion and electrical isolation.
Designed to accept a broad DC input range from 18V to 36V, the converter delivers a stable 12V DC output up to 250mA, supporting a maximum output power of 3W. This versatility makes it suitable for equipment with fluctuating source voltages or distributed power architectures. The CC3-2412SS-E achieves high isolation with a rated 500V insulation, protecting sensitive circuits and ensuring operational safety.
Its efficient design is highlighted by a footprint of just 22.8mm width, 16.6mm depth, and 26.16mm length, contributing to compact PCB layouts. With a low weight of 4.5g and robust ambient operating range from -40°C to 85°C, the product is ideal for environments demanding reliability under extreme temperatures.
RoHS-compliant manufacturing ensures suitability for green industrial standards. The converter provides protection and flexibility with an output adjustment range and open-frame construction for easy maintenance. Its SIP package type and 7-pin count enable straightforward through-hole installation.
The CC-E series is widely recognized for its self-contained reliability, five-year warranty, and multiple voltage configurations, supporting sectors such as telecom, industrial automation, consumer electronics, and instrumentation. Use cases include power isolation for subcircuits, regulation for sensors, and distributed DC voltage lines.
Browse related TDK-Lambda converters and industrial DC-DC solutions in this category to find optimal performance and integration for your application.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers a regulated output voltage of 12V DC with a maximum output current of 250mA.
It accepts a wide input voltage range from 18V to 36V DC.
The maximum output power of this unit is 3W.
This model has dimensions of 26.16mm in length, 16.6mm in depth, and 22.8mm in width.
It features a high isolation voltage of 500V between input and output.
The CC3-2412SS-E operates reliably within a temperature range of -40°C to 85°C.
It is designed for through-hole mounting with a SIP package type and has 7 pins for easy PCB integration.
The efficiency of this converter is rated at 82%.
Yes, the CC3-2412SS-E is RoHS compliant, ensuring it meets eco-friendly manufacturing standards.
It is suitable for industrial, commercial, and telecommunications applications requiring regulated DC power.
The gross weight of this model is 4.5g.
This converter is part of the CC-E series by TDK-Lambda.
