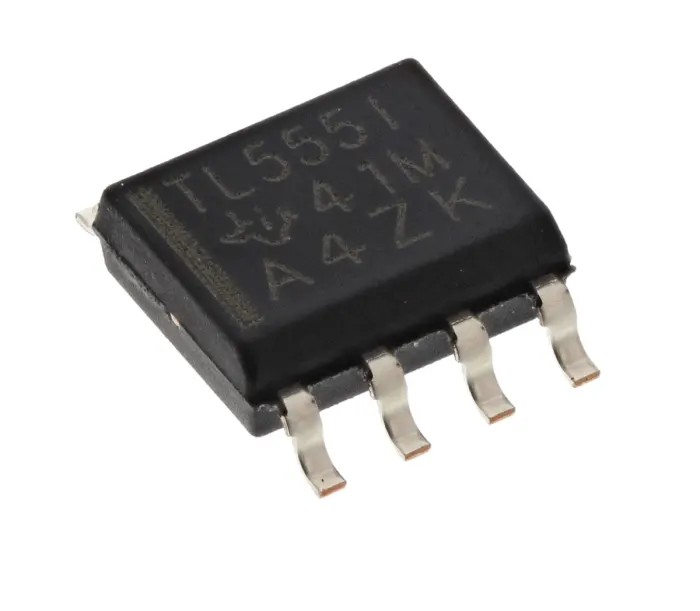

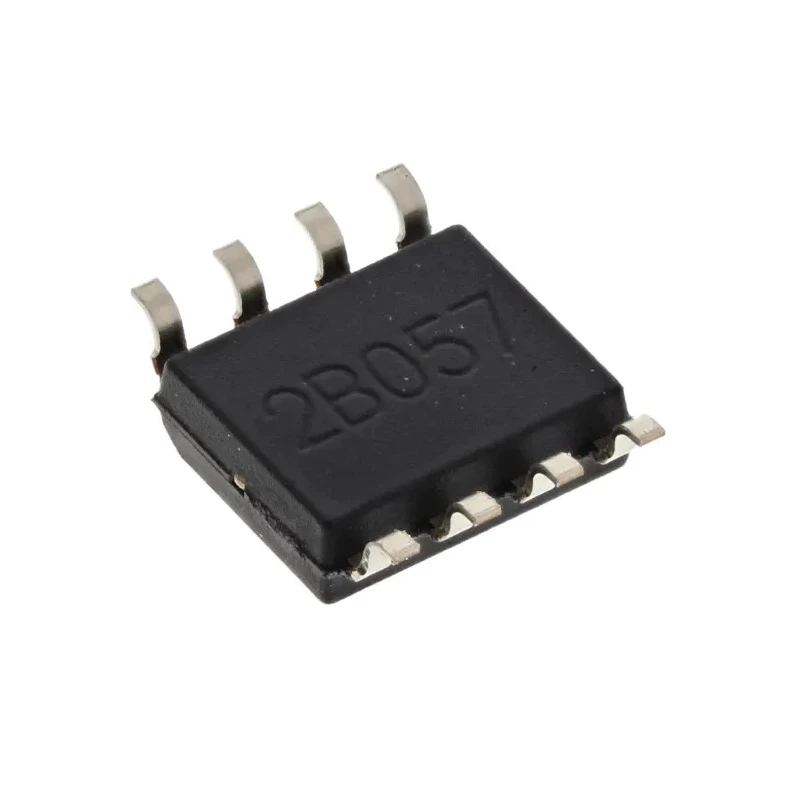

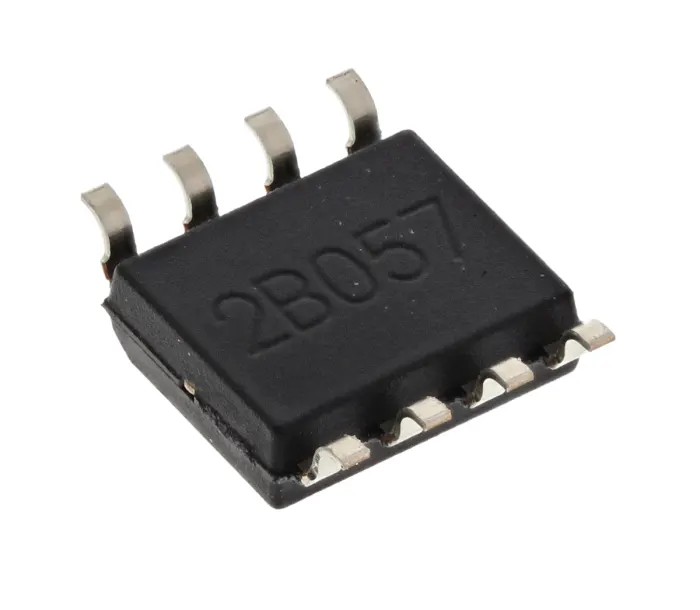

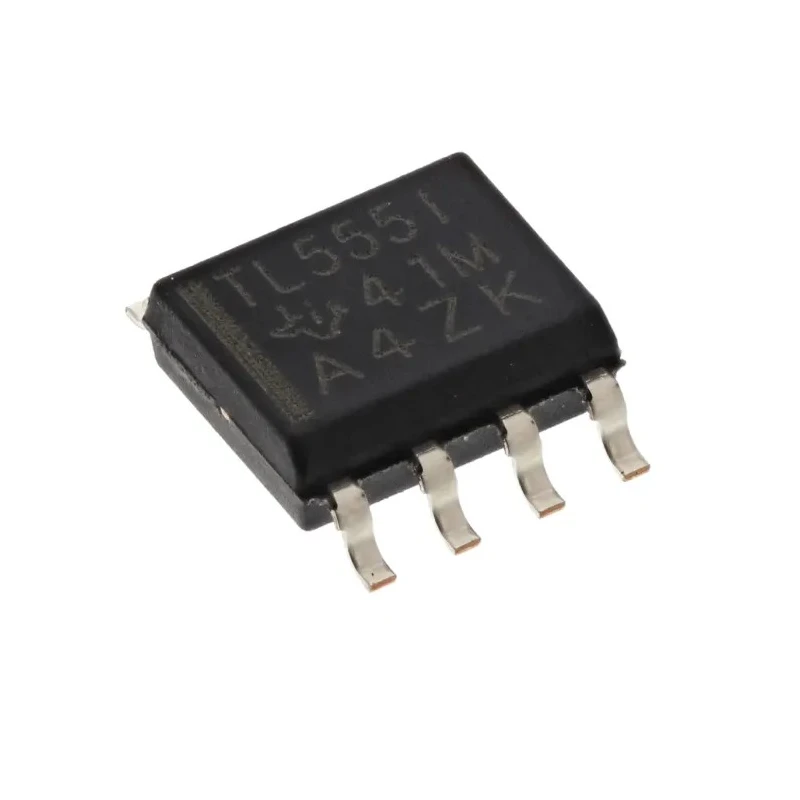

Texas Instruments Timer Circuit 1 Internal Timer, 8-Pin SOIC, 3V to 15V Supply TLC555IDR

Texas Instruments TLC555IDR Timer Circuit is a highly stable and precise timing integrated circuit designed for generating accurate time delays or timing pulses. This 8-pin SOIC packaged device operates within a voltage range of 3V minimum and 15V maximum ensuring flexible application across diverse systems.

It supports monostable (one-shot) and astable (oscillator) operation modes allowing timing periods from less than a microsecond to several minutes. Featuring a maximum propagation delay time of 75ns at 10pF, this timer circuit is ideal for applications requiring fast and accurate timing response.

The operating temperature range extends from -40°C to 85°C making it suitable for automotive, industrial, and environmental extremes. Highly stable precision timing circuit with 1 internal timer. Surface mount SOIC package facilitates automated PCB assembly.

Low power consumption across its CMOS design variants. Compact dimensions of 4.9mm length by 1.58mm height. Robust performance under specified temperature and voltage conditions. Compatible with wide range of electronic and industrial timing systems.

Used widely in laboratory equipment, electronic control systems, and measurement instruments.

This Texas Instruments timer forms a core component in electronic circuits requiring precise timing functionality such as pulse generation, time delay circuits, and oscillation circuits.
