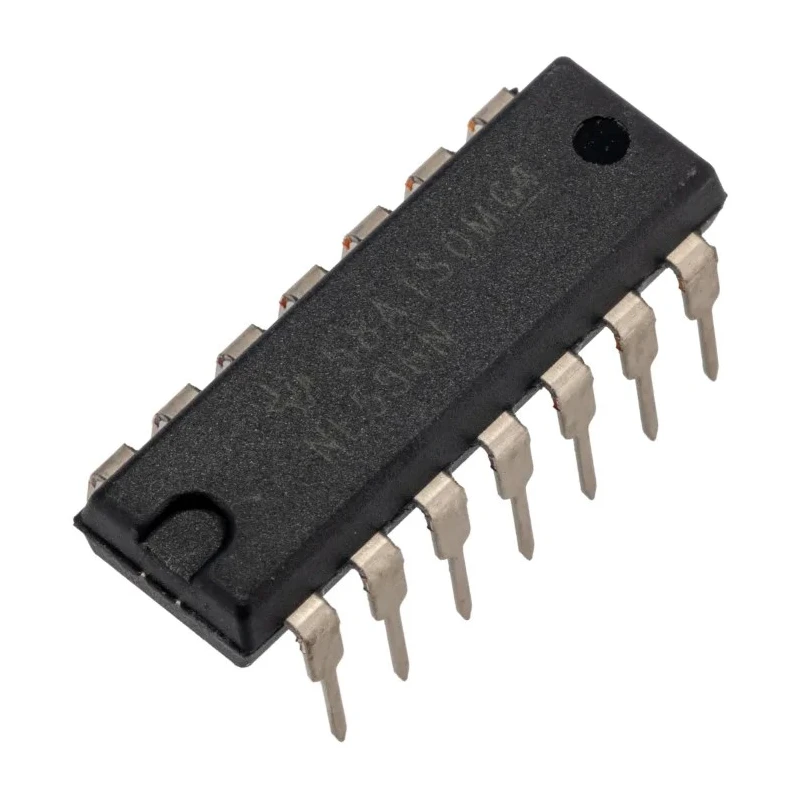

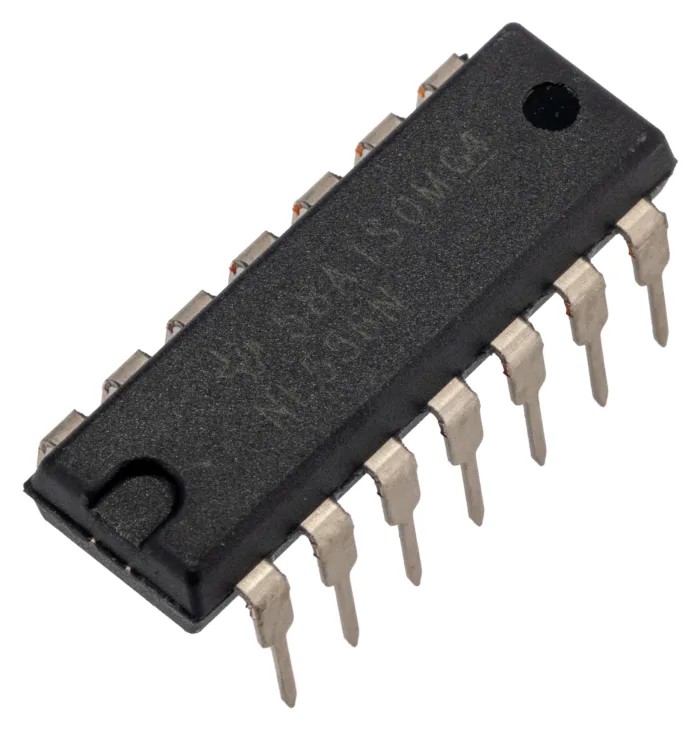

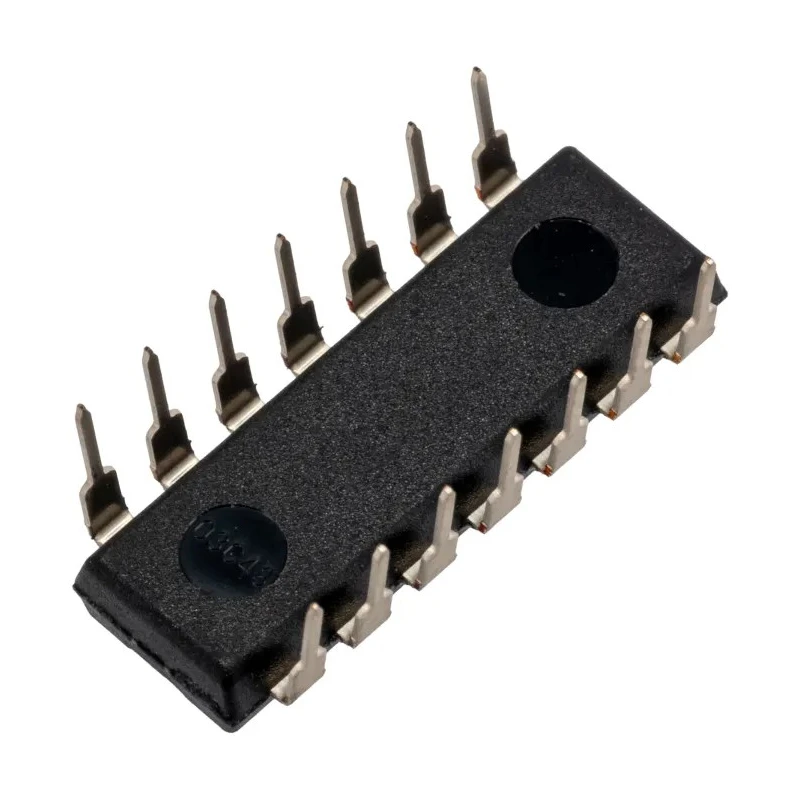

Texas Instruments Timer Circuit 2 Internal Timers, 14-Pin PDIP Package NE556N

Texas Instruments NE556N Timer Circuit is a highly stable precision timing device integrating two internal 555 timers in a 14-Pin PDIP package. This dual timer IC supports both monostable (one-shot) and astable (oscillator) modes, generating accurate time delays or timing pulses ranging from microseconds to minutes, suitable for a wide range of industrial, laboratory, and electronic applications.

The NE556N operates at a supply voltage ranging between 4.5V and 16V, accommodating typical electronic system requirements. Designed for through-hole mounting, its PDIP package facilitates easy integration on printed circuit boards (PCBs).

With an operating temperature range of 0°C to 70°C, the timer circuit ensures stable performance under standard ambient conditions. The device’s propagation delay is tested at 15pF, assuring timing precision critical in timing-sensitive applications.

Measuring 19.3 mm in length and 4.57 mm in height, this compact IC aids in space-efficient circuit designs. Originating from Malaysia, it aligns with global manufacturing standards ensuring quality and reliability.

The IC integrates two internal timers suitable for various timing configurations. Operates over a broad supply voltage and temperature range for versatile deployment. Features through-hole mounting convenience with a durable PDIP package.

Ensures high timing accuracy with propagation delay testing at 15pF capacitance. Compact form factor supports efficient circuit board layouts and industrial designs. Provides stable operation for industrial, laboratory, and electronic timing applications.

Manufactured under stringent quality control, originating from Malaysia.

This timer circuit is ideal for use in products requiring precision timing such as oscillators, pulse generation, timers, delays, and waveform generation within diverse industrial and electronic systems.

Explore more semiconductor and Timer Circuit solutions within the Electronics & Electricals category on EnvMart to find the ideal components for your design and engineering projects.
