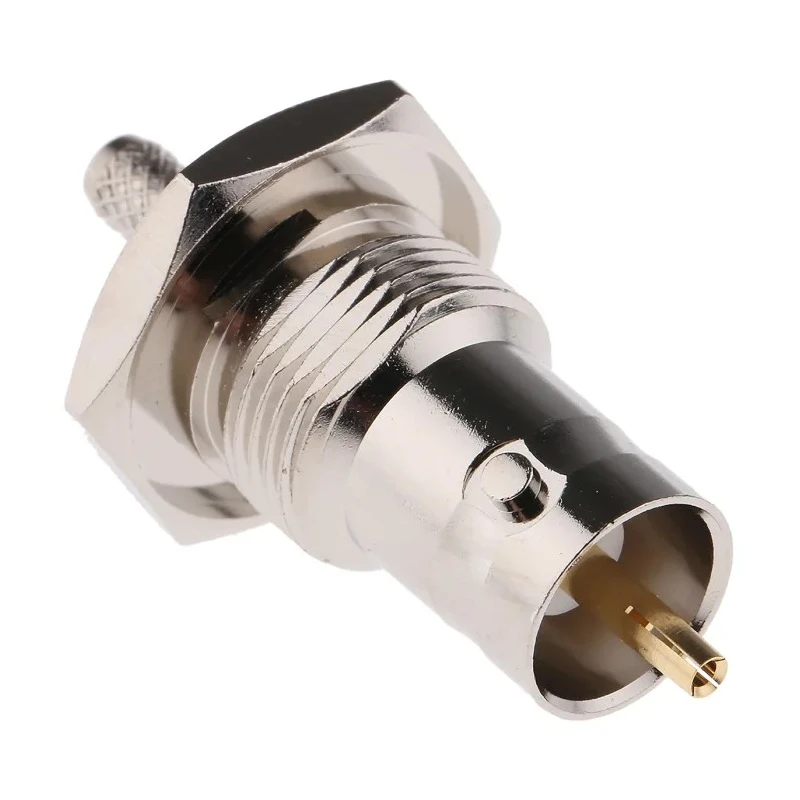

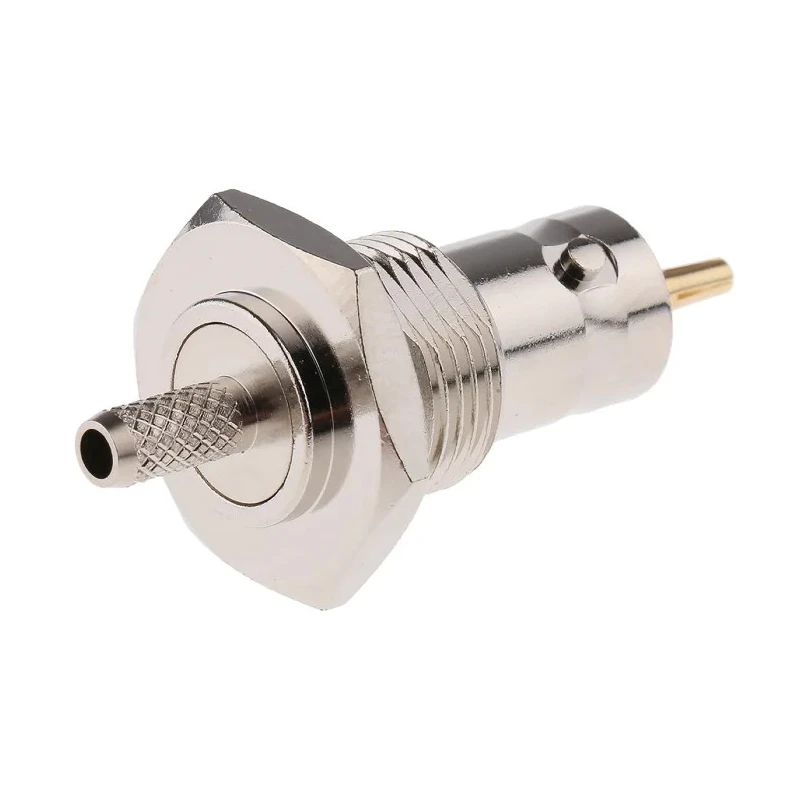

RS PRO Coaxial Connector Panel Mount Female BNC, 50 Ω, Straight Body Crimp 546-3917
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 546-3917 |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Cable Type | RG174 |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| • Insulation material | PTFE |
| RS PRO Coaxial Connector Panel Mount Male BNC, 50 Ω, Straight Body CrimpBrand | RS PRO |
| RS PRO, jack Panel Mount, 50Ω, Crimp Termination, Straight BodyBrand | RS PRO |
Key Features
- This connector is designed for panel mount applications with a bulkhead for secure fixture.
- The nickel-plated body ensures durable, heavy-duty construction for long service life.
- Gold-plated contacts provide excellent conductivity and resistance to corrosion.
- Compatible with RG174 cables using crimp termination for reliable connections.
- Operates at frequencies up to 4 GHz with PTFE insulation for excellent electrical performance.
- Suitable for use in antenna connections, telecom, CCTV, medical equipment, and SATCOM systems.
- Supports operating temperature range from -65°C to 85°C for versatile environments.
- Features a convenient bayonet coupling system for secure and quick connection/disconnection.
Product Description
RS PRO 546-3917 coaxial connector panel mount female BNC, 50 Ω impedance, straight body crimp is an industrial-grade RF connector used widely in critical electronics applications.
This panel mount connector includes a bulkhead and screw-on nut for secure and easy mounting to panels and chassis. The connector's robust nickel-plated body provides a heavy-duty finish capable of withstanding demanding industrial environments.
The center contact is gold-plated brass, ensuring high conductivity and corrosion resistance for reliable signal integrity over prolonged use. An internal PTFE insulator enhances insulation and durability under electrical stress.
Designed specifically for use with mini RG174 coaxial cables, the crimp termination method ensures a strong mechanical and electrical connection that is vital for RF performance.
This connector supports operating frequencies up to 4 GHz, suitable for a variety of radio, TV broadcast, medical equipment, telecom devices, SATCOM, and CCTV applications. It operates reliably at temperature extremes from -65°C to 85°C.
The bayonet coupling mechanism enables quick and secure connections, making it ideal for both fixed installations and equipment requiring frequent disconnection. This connector is designed for panel mount with bulkhead. Nickel-plated body offers high durability and corrosion resistance.
Gold-plated brass contacts ensure excellent conductivity. Crimp termination compatible with RG174 cable. Operates up to 4 GHz frequency with PTFE insulation. Suitable for telecom, CCTV, medical, SATCOM, and antenna systems.
Temperature operating range: -65°C to 85°C. Includes bayonet coupling for secure connections.
This RS PRO Coaxial Connector is a reliable choice for engineers seeking quality panel mount BNC connectors with proven performance in industrial, communications, and medical equipment environments. Explore more RS PRO products and categories at EnvMart for complete component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at frequencies up to 4 GHz, making it suitable for various RF applications.
It is compatible with RG174 cables, utilizing a crimp termination method for reliable connections.
The connector operates reliably within a temperature range of -65°C to 85°C, allowing for versatile use in different environments.
The body is nickel-plated for durability, while the center contact is made of gold-plated brass to ensure excellent conductivity and corrosion resistance.
This model features a panel mount design with a bulkhead and screw-on nut for secure installation to panels and chassis.
This connector has a female contact gender, making it suitable for connecting to male connectors.
It uses a crimp termination method, which provides a strong mechanical and electrical connection essential for RF performance.
The insulation material is PTFE, which enhances insulation and durability under electrical stress.
It is suitable for use in antenna connections, telecom, CCTV, medical equipment, and SATCOM systems.
This model has an impedance rating of 50 Ω, which is standard for many RF applications.
The connector features a straight body orientation, allowing for straightforward installation and connection.
